Connector End View - X340 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location:

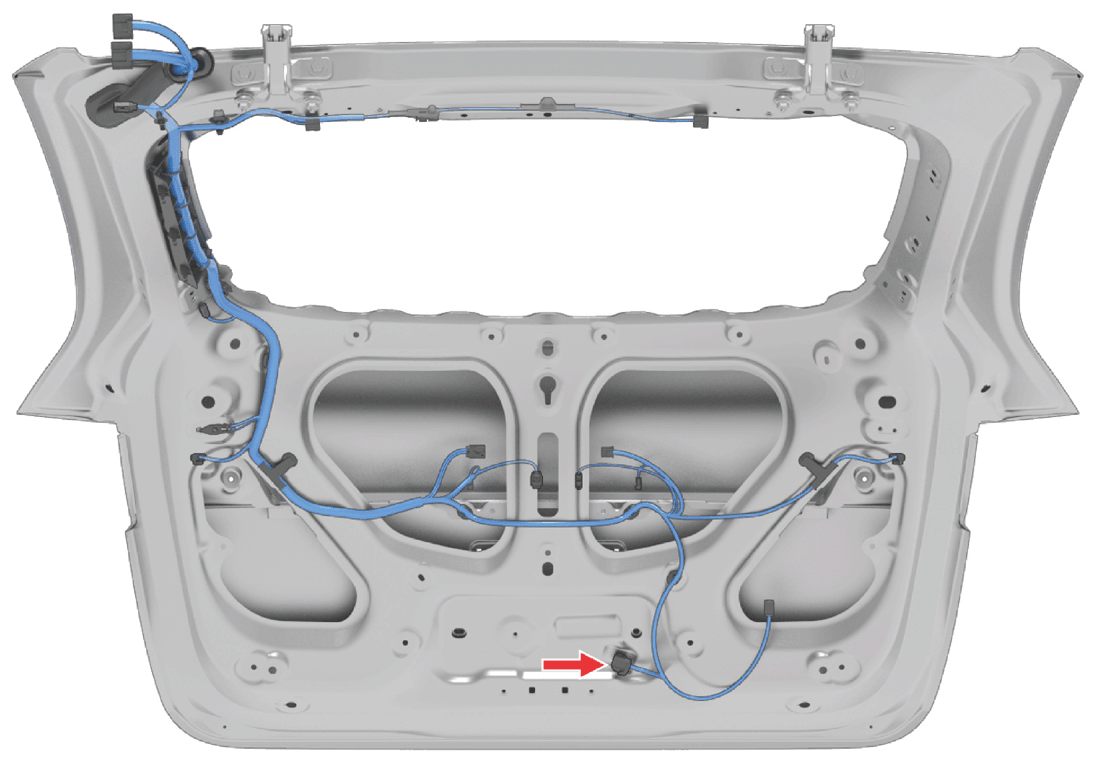

Fig 1: Connector Component Location - X340 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Connector Detail: YAZAKI 7283-6454-40
Color: GY

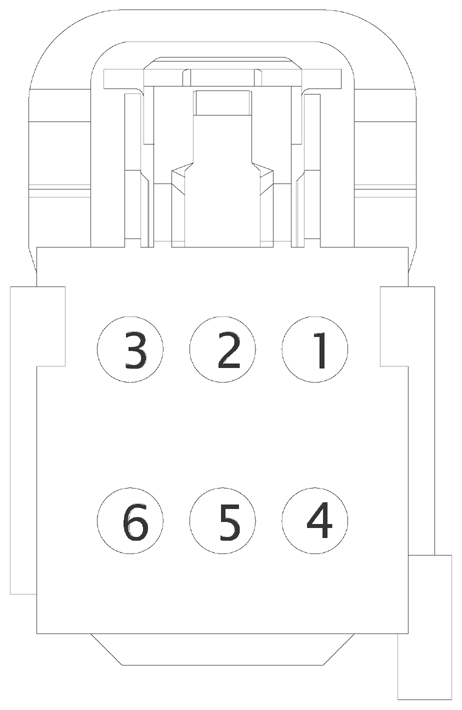

Fig 2: Connector End View - X340 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Not Serviceable
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | WH | 0.35 | SN | X954F-8 | 7116-6315-02 |
| 2 | VT | 0.35 | SN | X954F-9 | 7116-6315-02 |
| 3 | BK | 0.35 | SN | 7116-6315-02 | |
| 4 | GN | 1.00 | SN | X953F-14 | 7116-6316-02 |
| 5 | RD | 1.00 | SN | X953F-15 | 7116-6316-02 |
| 6 | YE | 0.35 | SN | X954F-13 | 7116-6315-02 |
