Connector End View - X320 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location:

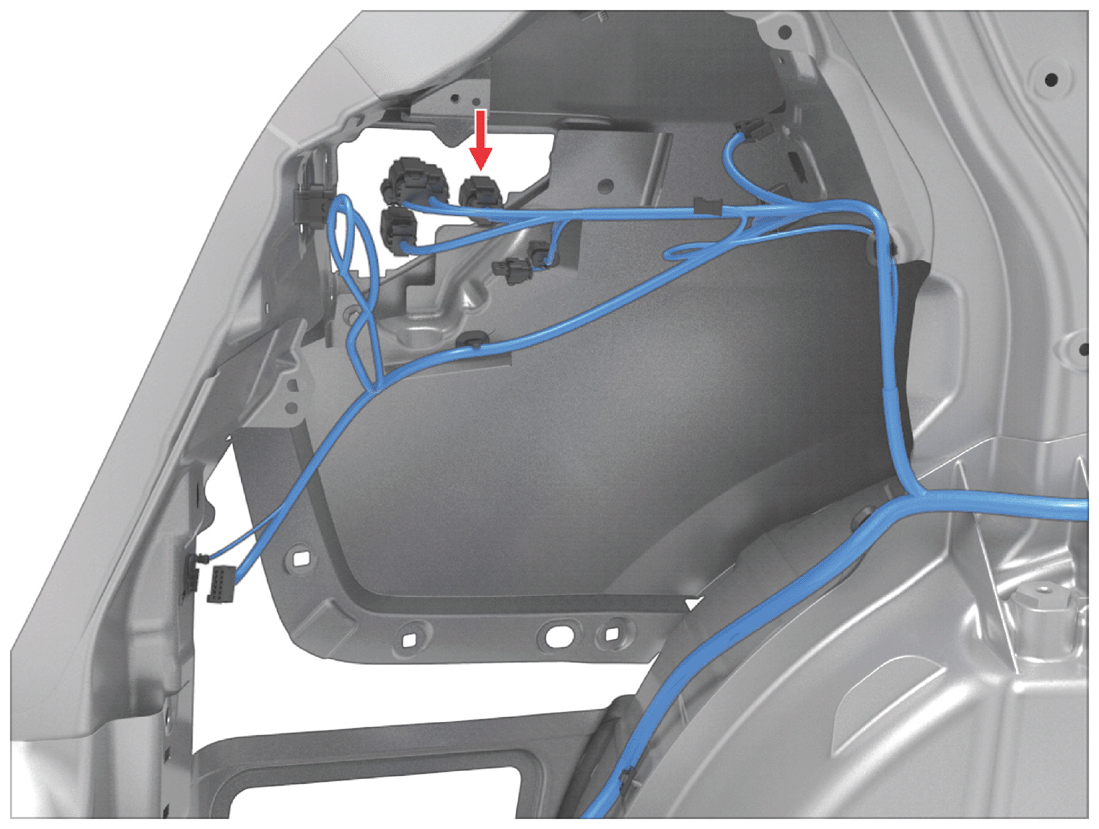

Fig 1: Connector Component Location - X320 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Connector Detail: DELPHI 13678638
Color: BK

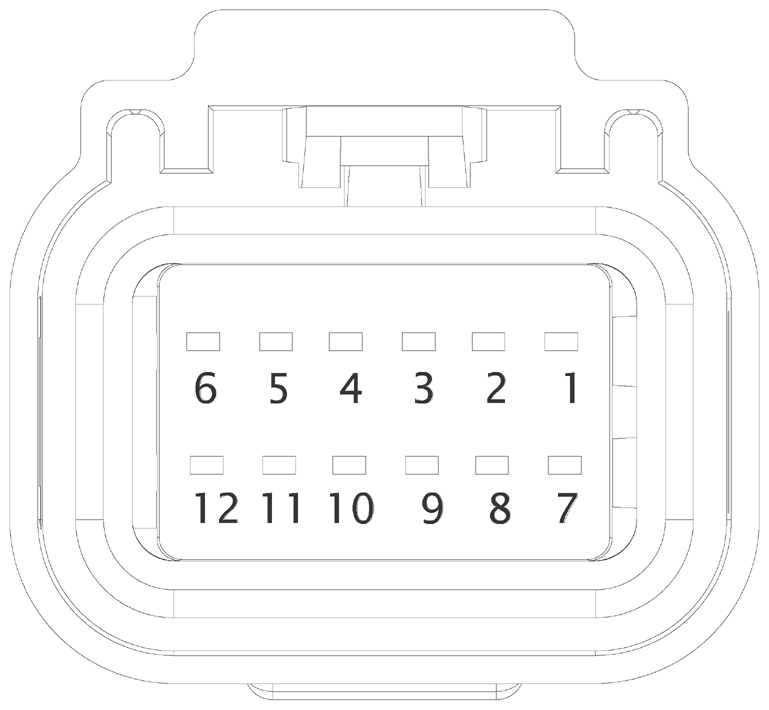

Fig 2: Connector End View - X320 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal |
|---|---|---|---|---|---|---|
| 1 | YE | 0.50 | SN | X688-4 | 35072403 | MAT-140-190 |
| 2 | RD | 0.50 | SN | X688-1 | 35072403 | MAT-140-190 |
| 3 | ||||||
| 4 | YE | 0.50 | SN | X688-20 | 35072403 | MAT-140-190 |
| 5 | ||||||
| 6 | ||||||
| 7 | ||||||
| 8 | BU | 0.50 | SN | X688-13 | 35072403 | MAT-140-190 |
| 9 | VT | 0.50 | SN | X688-22 | 35072403 | MAT-140-190 |
| 10 | BN | 0.50 | SN | X688-21 | 35072403 | MAT-140-190 |
| 11 | GN | 0.50 | SN | X688-5 | 35072403 | MAT-140-190 |
| 12 | WH | 0.50 | SN | X688-16 | 35072403 | MAT-140-190 |
