Connector End View - X268 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location:

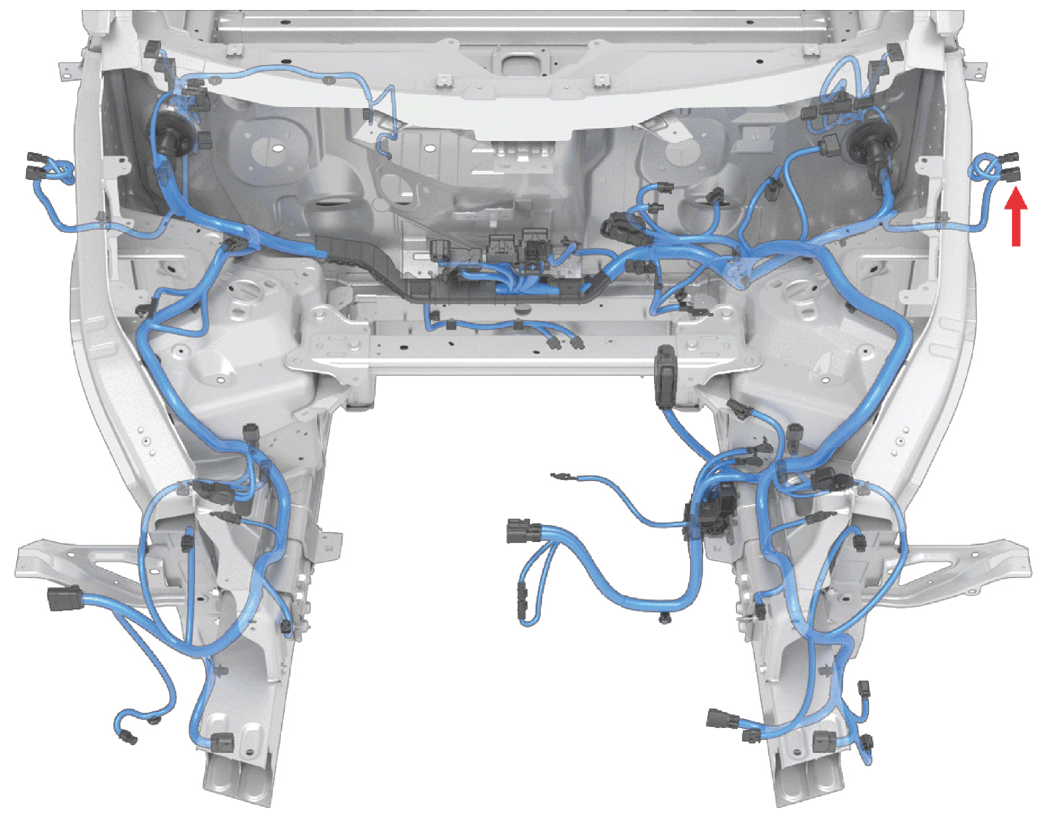

Fig 1: Connector Component Location - X268 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Connector Detail: DELPHI 13627828
Color: GY

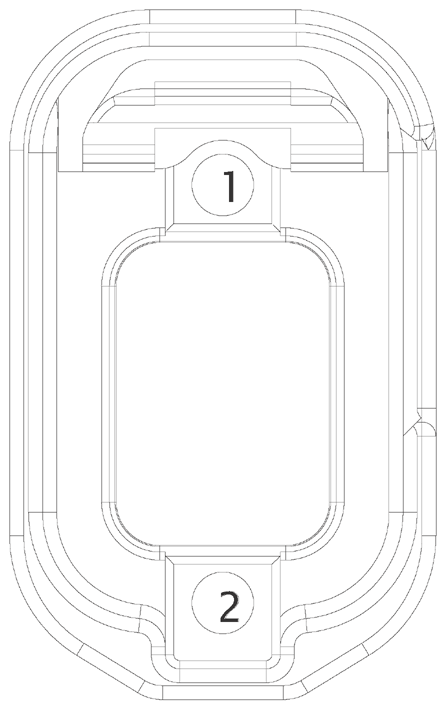

Fig 2: Connector End View - X268 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal |
|---|---|---|---|---|---|---|
| 1 | GN | 0.35 | SN | X010-11 | 7116-4102-02 | 7158-3030-50 |
| 2 | BK | 0.50 | SN | G011-1 | 7116-4102-02 | 7158-3030-50 |
