Connector End View - X229_1 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location: Not Available
Connector Detail: DELPHI 35191323
Color: GN

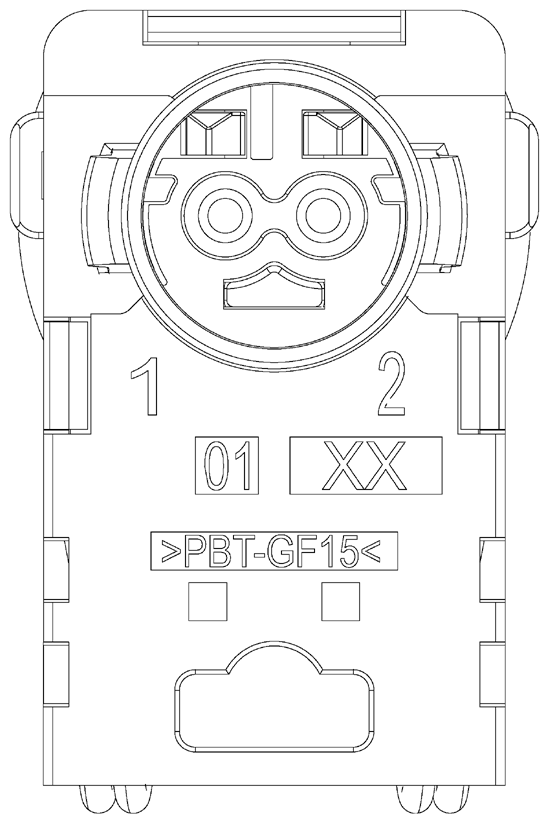

Fig 1: Connector End View - X229_1 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Connector Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | GY | 0.35 | AU | X200_1-14 | PIA-SRS-S |
| 2 | RD | 0.35 | AU | X200_1-15 | PIA-SRS-S |
