Connector End View - X200 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]

Location:

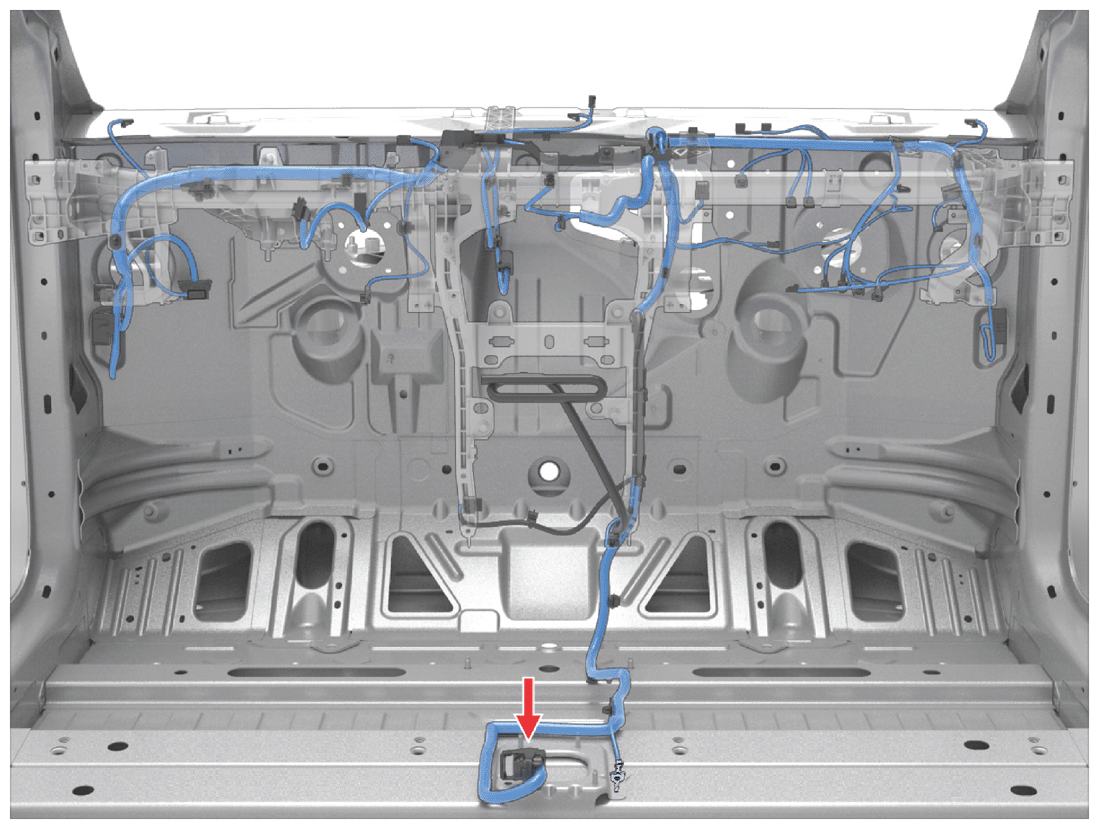

Fig 1: Connector Component Location - X200 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
G14848384Courtesy of TESLA, INC.

Connector Detail: BOSCH 1928406052.

Color: BK

Serviceability: Terminal Pigtail

Cavity Color Size Plate Destination Terminal Seal
1 BN 0.35 SN X055-8 1928499468 MAT-110-130
2 VT 0.35 SN X055-9 1928499468 MAT-110-130
3 BU 0.35 SN X035-32 1928499468 MAT-110-130
4 WH 0.35 SN X035-16 1928499468 MAT-110-130
5 BK 0.35 SN X231-1 1928499468 MAT-110-130
6 RD 0.35 SN X231-2 1928499468 MAT-110-130
7 BK 0.35 SN X035-2 1928499468 MAT-110-130
8 VT 0.35 SN X035-1 1928499468 MAT-110-130
9 YE 0.35 SN X180-12 1928499468 MAT-110-130
10 BU 0.35 SN X180-13 1928499468 MAT-110-130
11
12
13
14 GY 0.35 SN X229-1 1928499468 MAT-110-130
15 RD 0.35 SN X229-2 1928499468 MAT-110-130
16 BN 0.35 SN X180-9 1928499468 MAT-110-130
17 TN 0.35 SN X180-8 1928499468 MAT-110-130
18 YE 0.35 SN X230-1 1928499468 MAT-110-130
19 BU 0.35 SN X230-2 1928499468 MAT-110-130
20 GN 0.35 SN X180-11 1928499468 MAT-110-130
21 RD 0.35 SN X180-10 1928499468 MAT-110-130
22 BU 0.35 SN X233-1 1928499468 MAT-110-130
23 VT 0.35 SN X233-2 1928499468 MAT-110-130
24 WH 0.35 SN X232-2 1928499468 MAT-110-130
25 GN 0.35 SN X232-1 1928499468 MAT-110-130
26
27 VT 0.35 SN X055-33 1928499468 MAT-110-130
28
29
30
31 VT 0.35 SN X035-17 1928499468 MAT-110-130
32 GY 0.35 SN X035-18 1928499468 MAT-110-130
33 BK 0.35 SN X055-11 1928499468 MAT-110-130
34 BN 0.35 SN X055-10 1928499468 MAT-110-130
35 YE 0.35 SN X055-34 1928499468 MAT-110-130
36
37
38 BN 0.35 SN X055-1 1928499468 MAT-110-130
39 BU 0.35 SN X055-18 1928499468 MAT-110-130
40 RD 0.35 SN X055-32 1928499468 MAT-110-130
41
42
43 RD 0.35 SN X035-10 1928499468 MAT-110-130
44 TN 0.35 SN X035-26 1928499468 MAT-110-130
45 GN 0.35 SN X035-25 1928499468 MAT-110-130
46 BU 0.35 SN X035-9 1928499468 MAT-110-130
47
48
49
50
51 GN 0.35 SN X035-21 1928499468 MAT-110-130
52 GY 0.35 SN X035-6 1928499468 MAT-110-130
