Connector End View - X199 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location:

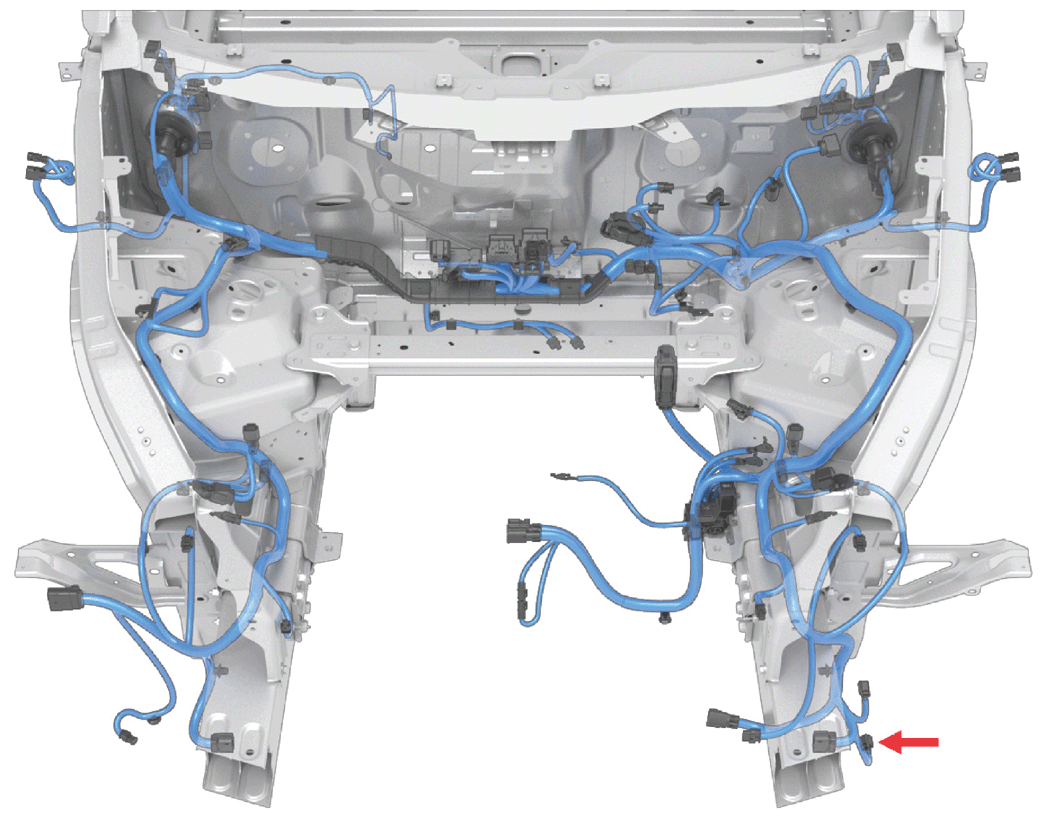

Fig 1: Connector Component Location - X199 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Connector Detail: MOLEX 34062-0023
Color: BK

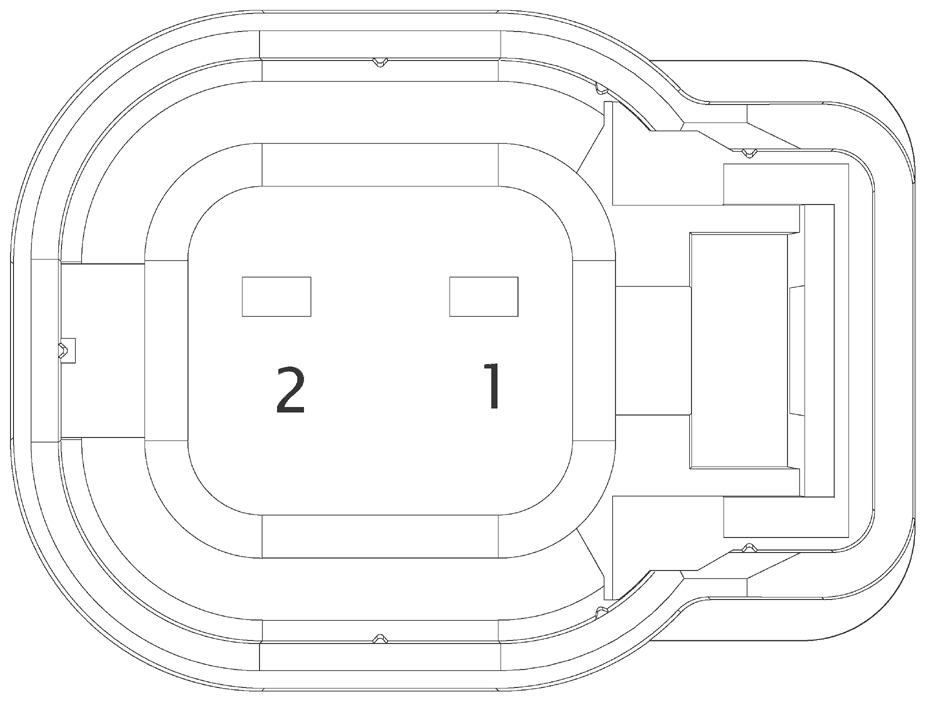

Fig 2: Connector End View - X199 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal | Seal |
|---|---|---|---|---|---|---|
| 1 | BU | 1.00 | SN | X010-94 | 7116-4103-02 | 7158-3031-90 |
| 2 | BK | 1.00 | SN | 7116-4103-02 | 7158-3031-90 |
