Connector End View - X196B [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location:

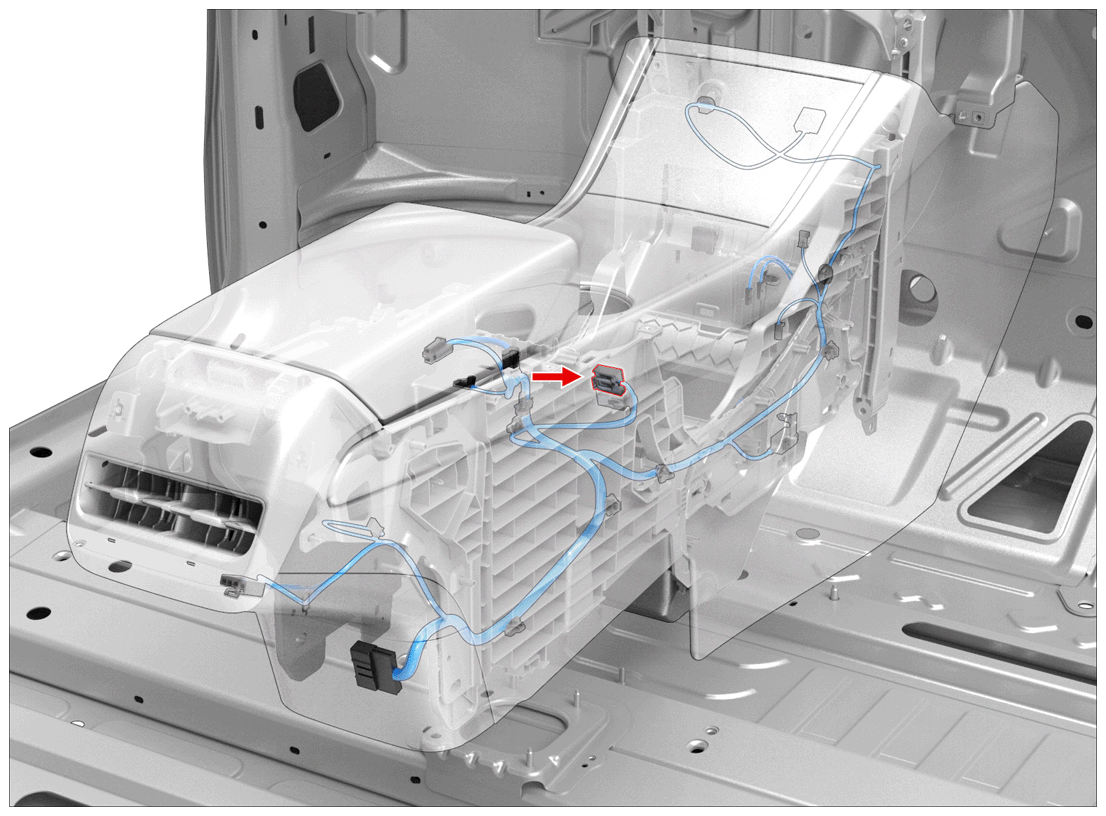

Fig 1: Connector Component Location - X196B [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Connector Detail: DELPHI 12052856
Color: BK
Fig 2: Connector End View - X196B [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| A | GY | 2.00 | SN | X195B-B | 12066214 |
| B | BK | 2.00 | SN | X694-C | 12066214 |
| C | RD | 2.00 | SN | X694-D | 12066214 |
| D | BU | 2.00 | SN | X195B-C | 12066214 |
