Connector End View - X182 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location:

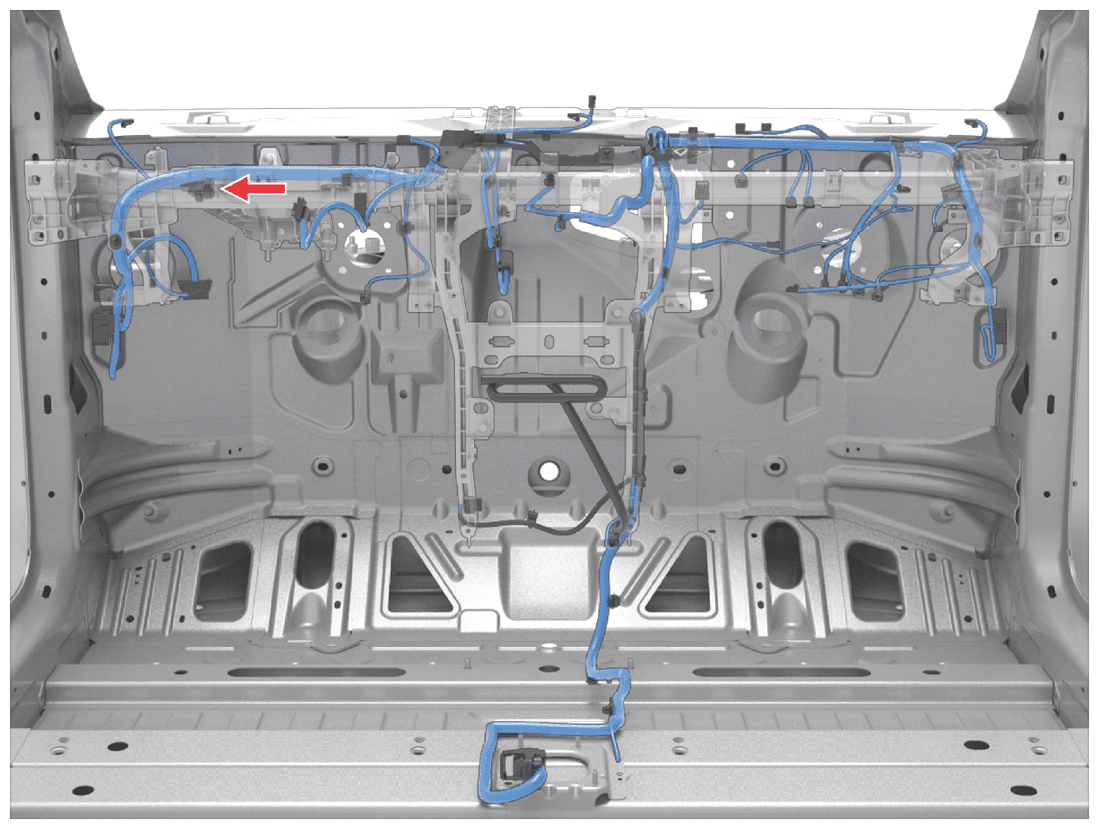

Fig 1: Connector Component Location - X182 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Connector Detail: SUMITOMO 6098-6104
Color: WH

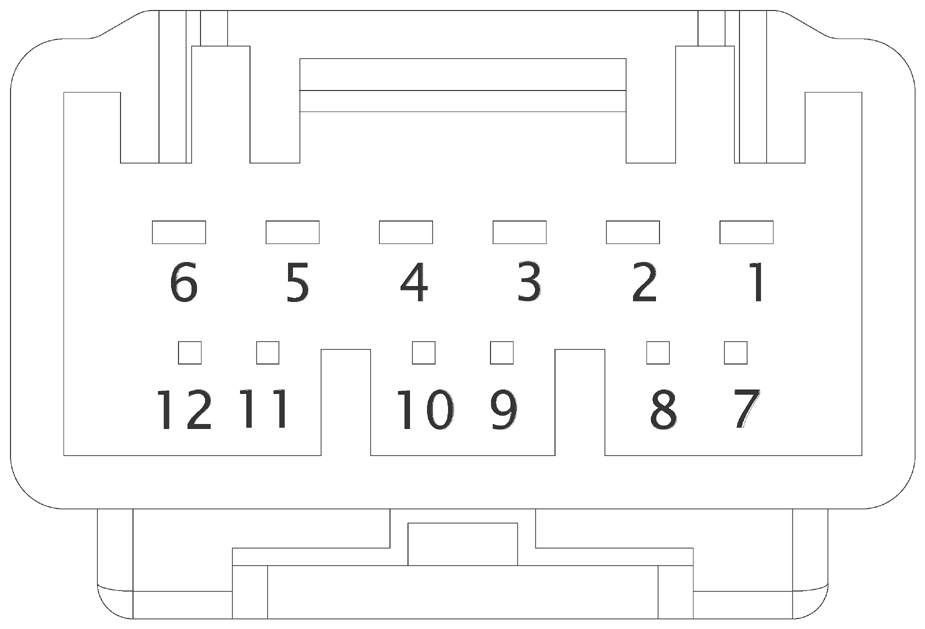

Fig 2: Connector End View - X182 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | BU | 0.50 | SN | X035-31 | 8230-4925 |
| 2 | GN | 0.50 | SN | X035-15 | 8230-4925 |
| 3 | |||||
| 4 | |||||
| 5 | RD | 0.50 | SN | X035-36 | 8230-4925 |
| 6 | WH | 0.50 | SN | X035-35 | 8230-4925 |
| 7 | YE | 0.13 | SN | X035-39 | 8230-4878 |
| 8 | VT | 0.13 | SN | X035-24 | 8230-4878 |
| 9 | |||||
| 10 | |||||
| 11 | RD | 0.13 | SN | X035-40 | 8230-4878 |
| 12 | BU | 0.13 | SN | X035-7 | 8230-4878 |
