Connector End View - X181 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location:

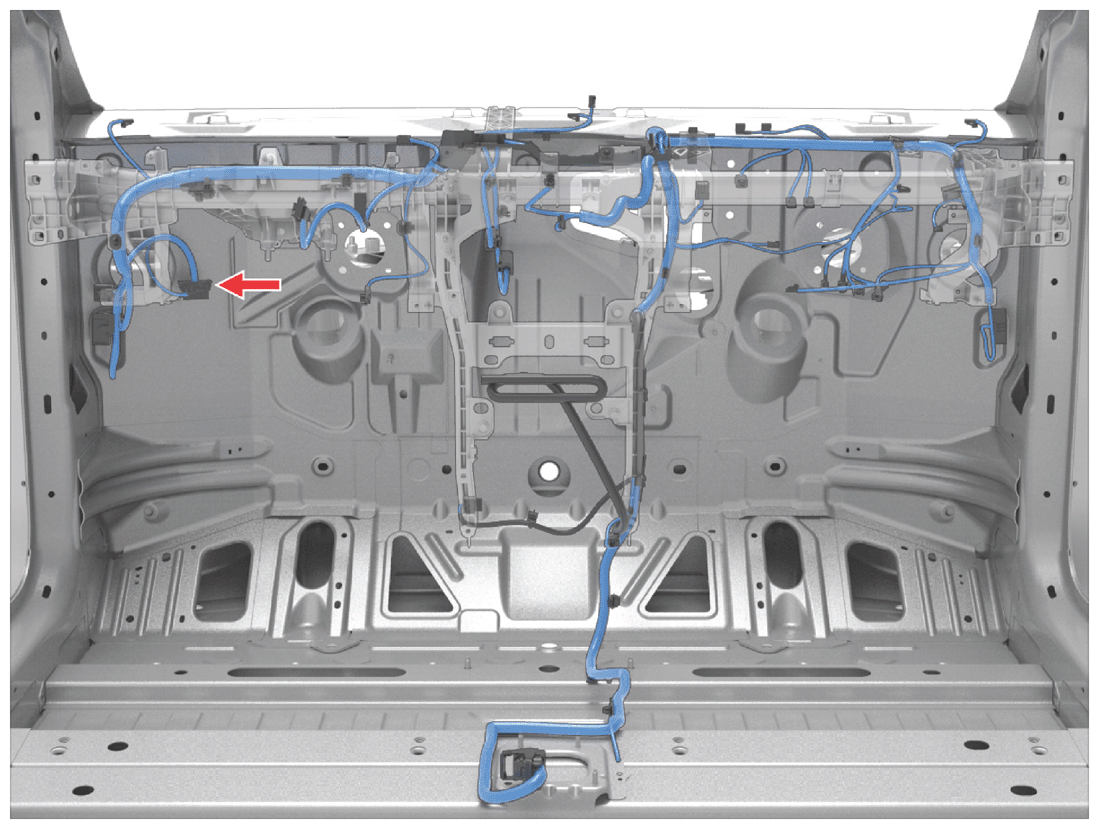

Fig 1: Connector Component Location - X181 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Connector Detail: AMP 179631-2
Color: BK

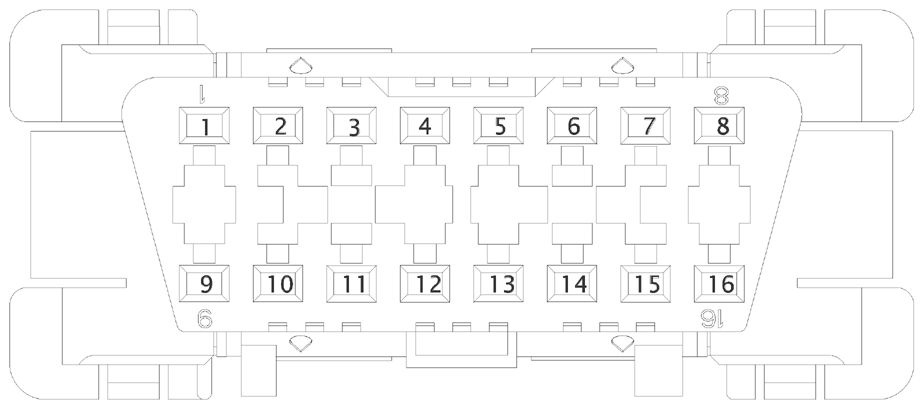

Fig 2: Connector End View - X181 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | |||||
| 2 | |||||
| 3 | GN | 0.35 | SN | X035-34 | 776001-1 |
| 4 | BK | 0.50 | SN | 776001-1 | |
| 5 | BK | 0.50 | SN | 776001-1 | |
| 6 | BN | 0.35 | SN | X035-30 | 776001-1 |
| 7 | |||||
| 8 | |||||
| 9 | |||||
| 10 | |||||
| 11 | YE | 0.35 | SN | X035-45 | 776001-1 |
| 12 | |||||
| 13 | |||||
| 14 | VT | 0.35 | SN | X035-14 | 776001-1 |
| 15 | |||||
| 16 | RD | 0.35 | SN | X035-33 | 776001-1 |
