Connector End View - X180_1 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location: Not Available
Connector Detail: KOSTAL 22400736187
Color: YL

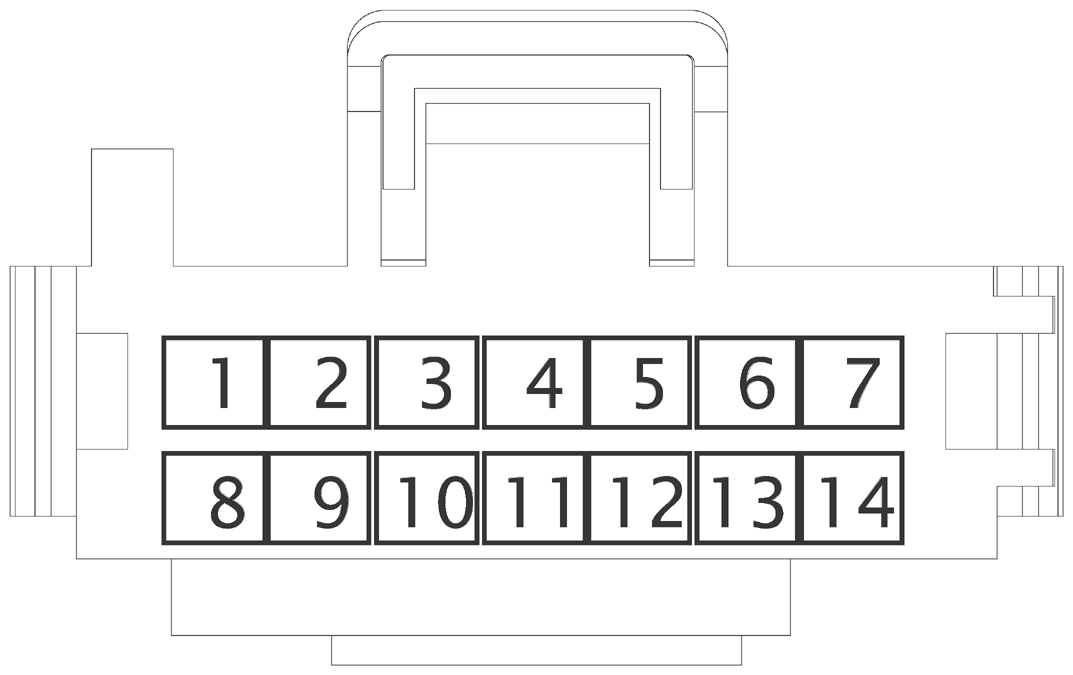

Fig 1: Connector End View - X180_1 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | GY | 0.35 | AG | X035_1-44 | 32124734013 |
| 2 | BU | 0.35 | AG | X035_1-13 | 32124734013 |
| 3 | VT | 0.35 | AG | X035_1-12 | 32124734013 |
| 4 | BK | 0.75 | AG | 32124734033 | |
| 5 | |||||
| 6 | BK | 0.75 | AG | 32124734033 | |
| 7 | VT | 0.75 | AG | X035_1-5 | 32124734033 |
| 8 | TN | 0.35 | AG | X200_1-17 | 32124734013 |
| 9 | BN | 0.35 | AG | X200_1-16 | 32124734013 |
| 10 | RD | 0.35 | AG | X200_1-21 | 32124734013 |
| 11 | GN | 0.35 | AG | X200_1-20 | 32124734013 |
| 12 | YE | 0.35 | AG | X200_1-9 | 32124734013 |
| 13 | BU | 0.35 | AG | X200_1-10 | 32124734013 |
| 14 | BN | 0.35 | AG | X035_1-41 | 32124734013 |
