Connector End View - X179 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]

Location:

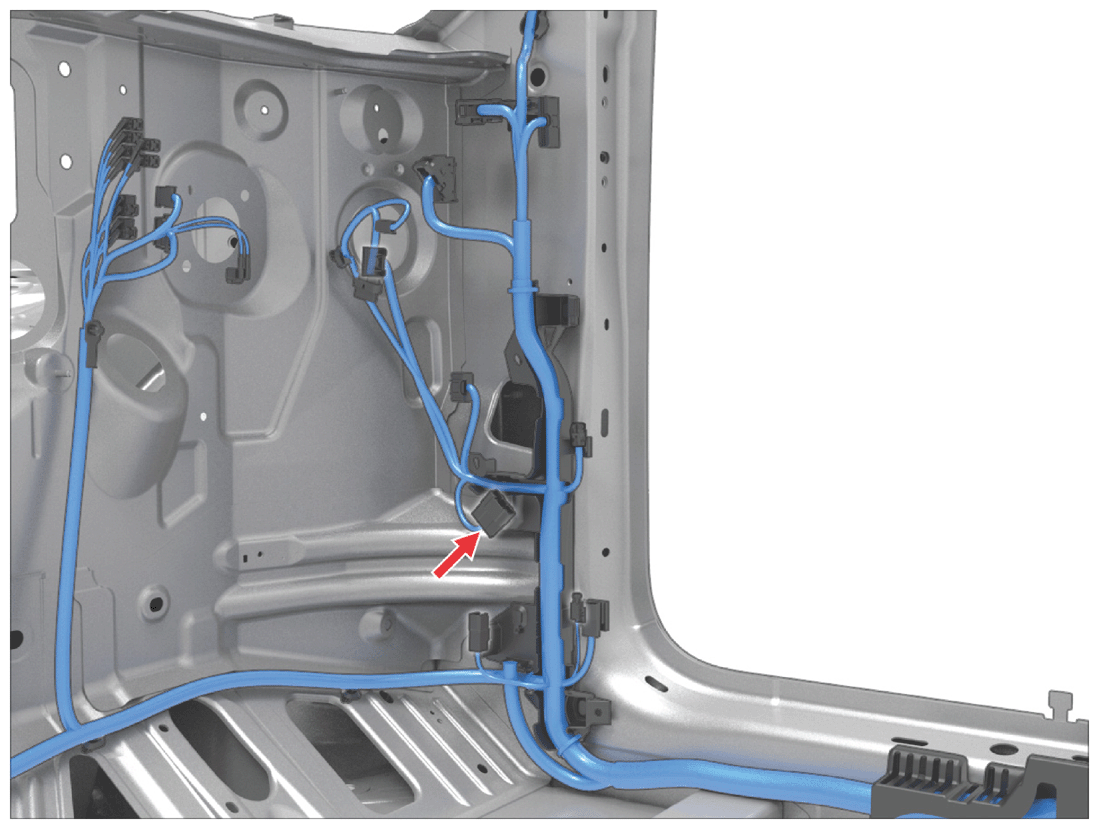

Fig 1: Connector Component Location - X179 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]

Courtesy of TESLA, INC.

Connector Detail: SUMITOMO 6098-5620

Color: BU

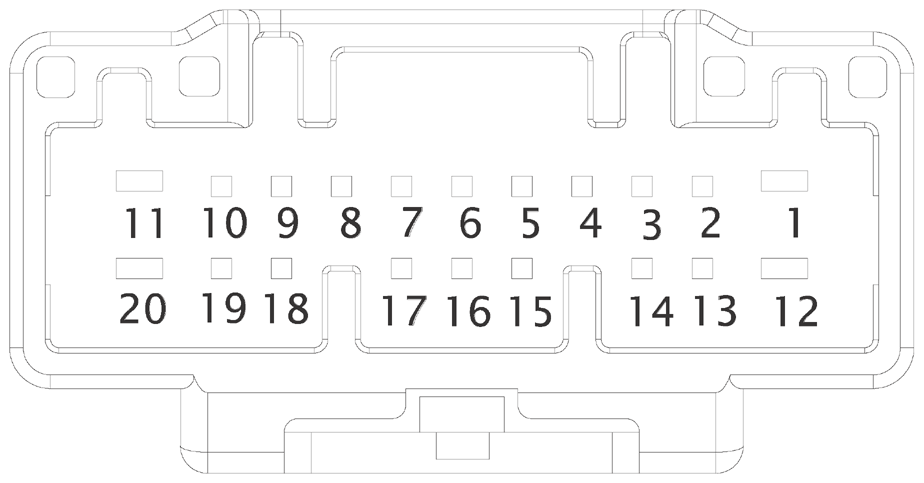

Fig 2: Connector End View - X179 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]

Courtesy of TESLA, INC.

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1
2	YE	0.35	SN	X051-13	8100-3623
3	GN	0.35	SN	X051-29	8100-3623
4
5
6
7
8
9	WH	0.35	SN	X050A-30	8100-3623
10	VT	0.35	SN	X050A-31	8100-3623
11
12
13	RD	0.35	SN	X050A-13	8100-3623
14	BK	0.35	SN	X050A-14	8100-3623
15
16
17
18
19
20	BK	0.50	SN	G032-8	8230-4925
