Connector End View - X165 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location:

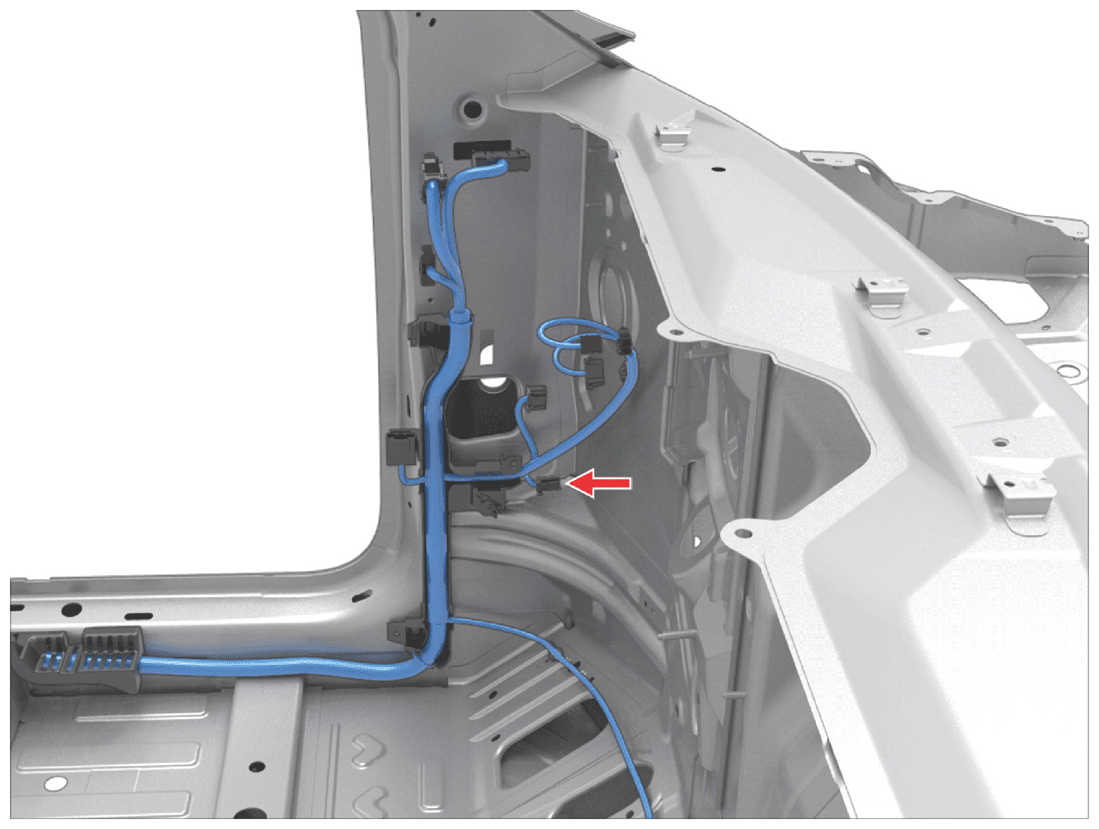

Fig 1: Connector Component Location - X165 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Connector Detail: SUMITOMO 6520-0348
Color: WH
Fig 2: Connector End View - X165 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | BU | 2.00 | SN | X046-9 | 8230-4512 |
| 2 | BK | 2.00 | SN | G031-12 | 8230-4512 |
| 3 | VT | 0.50 | SN | X030A-7 | 8230-4492 |
| 4 | BN | 2.00 | SN | X030B-11 | 8230-4512 |
