Connector End View - X129 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location:

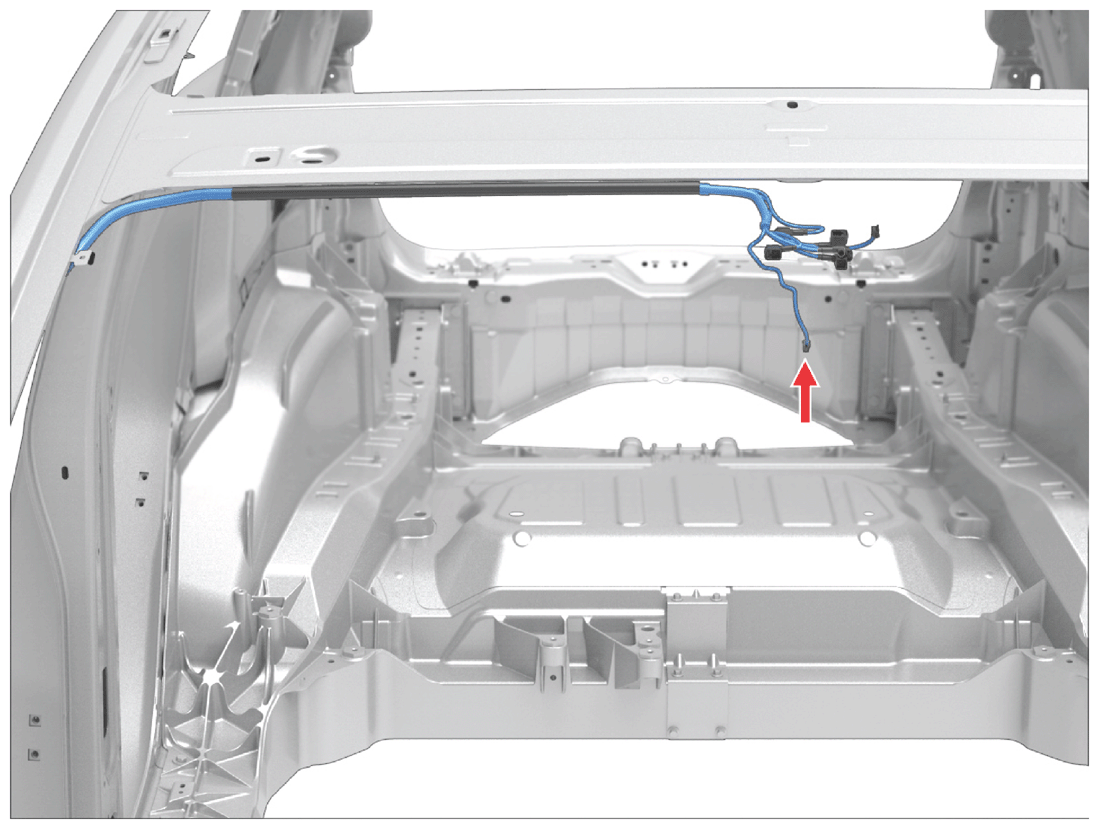

Fig 1: Connector Component Location - X129 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Connector Detail: JST PNIRP-02V-S
Color: WH
Fig 2: Connector End View - X129 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | YE | 0.35 | SN | X962F-1 | SPND-001T-C0.5 |
| 2 | WH | 0.35 | SN | X962F-2 | SPND-001T-C0.5 |
