Connector End View - X120A [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]

Location:

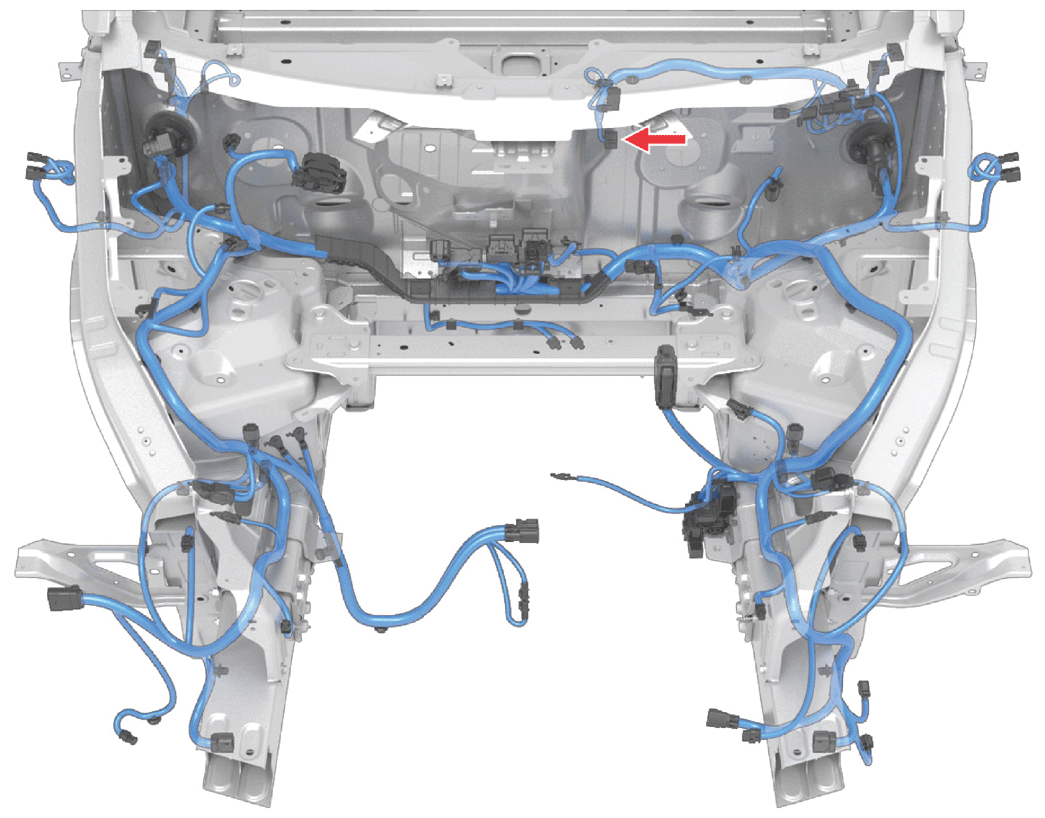

Fig 1: Connector Component Location - X120A [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]

Courtesy of NISSAN NORTH AMERICA, INC.

Connector Detail: SUMITOMO 6098-5611

Color: BU

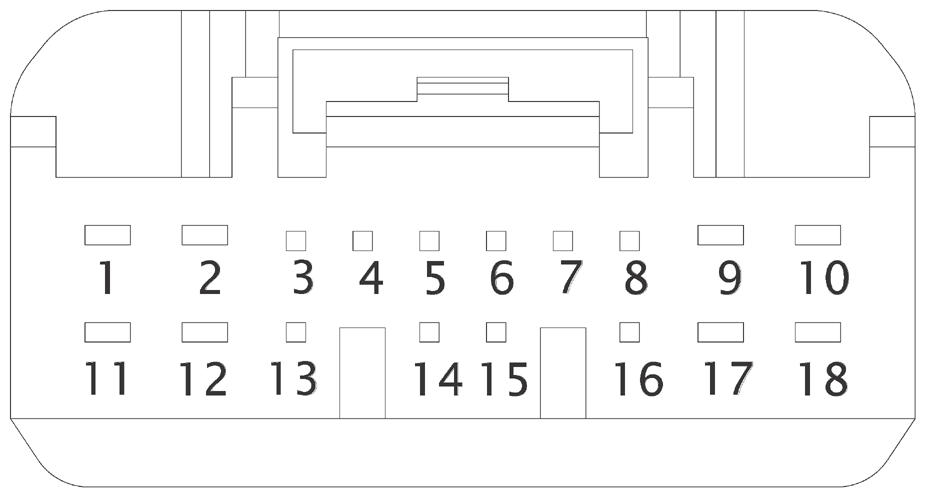

Fig 2: Connector End View - X120A [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]

Courtesy of NISSAN NORTH AMERICA, INC.

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1	RD	0.35	SN	X170A-6	8240-0215
2
3
4
5	RD	0.35	SN	X010-12	8100-3625
6	WH	0.35	SN	X010-27	8100-3625
7
8
9	BN	2.00	SN	X012-2	8240-0214
10
11	GN	0.35	SN	X170A-12	8240-0215
12
13
14
15
16
17
18	BK	2.00	SN	G012-7	8240-0214
