Connector End View - X055 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]

Location:

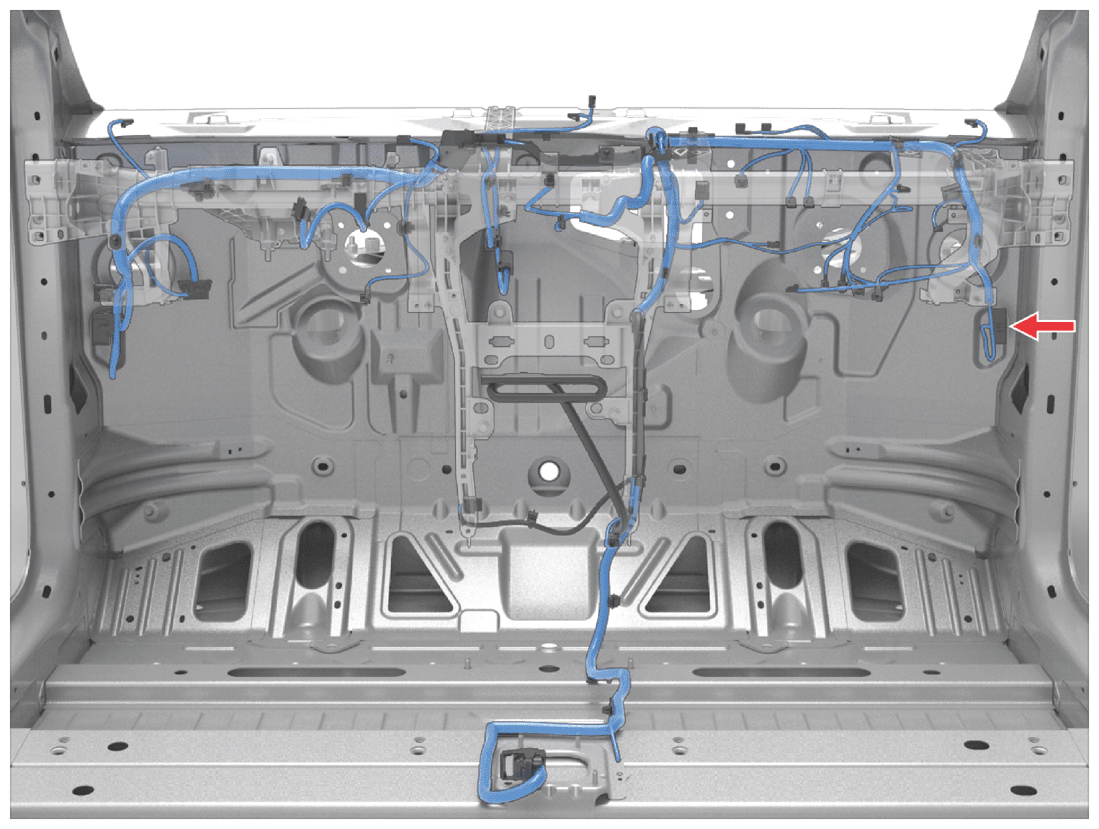

Fig 1: Connector Component Location - X055 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]

Courtesy of NISSAN NORTH AMERICA, INC.

Connector Detail: SUMITOMO 6098-4831

Color: WH

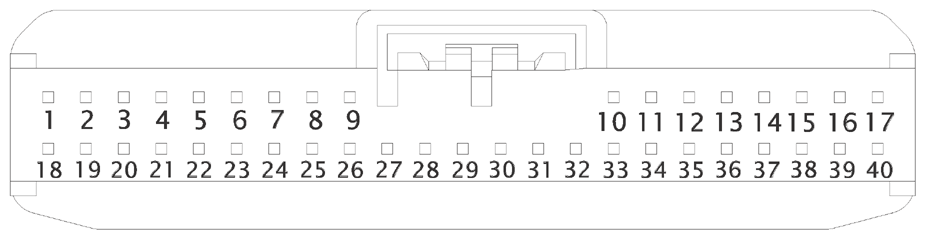

Fig 2: Connector End View - X055 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]

Courtesy of NISSAN NORTH AMERICA, INC.

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1	BN	0.35	SN	X200-38	8100-3625
2	WH	0.35	SN	X558-4	8100-3625
3	BU	0.35	SN	X558-5	8100-3625
4	GN	0.35	SN	X559-5	8100-3625
5	BU	0.13	SN	X542-1	8240-0182
6
7
8	BN	0.35	SN	X200-1	8100-3625
9	VT	0.35	SN	X200-2	8100-3625
10	BN	0.35	SN	X200-34	8100-3625
11	BK	0.35	SN	X200-33	8100-3625
12	GY	0.35	SN	X281-1	8100-3625
13	BN	0.13	SN	X542-4	8240-0182
14	RD	0.13	SN	X542-3	8240-0182
15	TN	0.35	SN	X187-1	8100-3625
16	WH	0.13	SN	X535-1	8240-0182
17	VT	0.50	SN	X186-1	8100-3625
18	BU	0.35	SN	X200-39	8100-3625
19	GY	0.35	SN	X559-4	8100-3625
20	VT	0.35	SN	X558-6	8100-3625
21	BK	0.35	SN	X559-6	8100-3625
22	YE	0.13	SN	X542-2	8240-0182
23	BN	0.50	SN	X186-2	8100-3625
24	VT	0.35	SN	X547-2	8100-3625
25	BU	0.35	SN	X550-2	8100-3625
26	YE	0.35	SN	X559-3	8100-3625
27	WH	0.35	SN	X559-7	8100-3625
28	BN	0.35	SN	X558-3	8100-3625
29	YE	0.35	SN	X558-7	8100-3625
30	BU	0.35	SN	X547-1	8100-3625
31	GN	0.35	SN	X550-1	8100-3625
32	RD	0.35	SN	X200-40	8100-3625
33	VT	0.35	SN	X200-27	8100-3625
34	YE	0.35	SN	X200-35	8100-3625
35	TN	0.50	SN	X576-1	8100-3625
36	BK	0.50	SN	X576-2	8100-3625
37	YE	0.50	SN	X566-1	8100-3625
38	VT	0.50	SN	X566-2	8100-3625
39	RD	0.50	SN		8100-3625
40	BU	0.50	SN	X595-2	8100-3625
