Connector End View - X030B [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location:

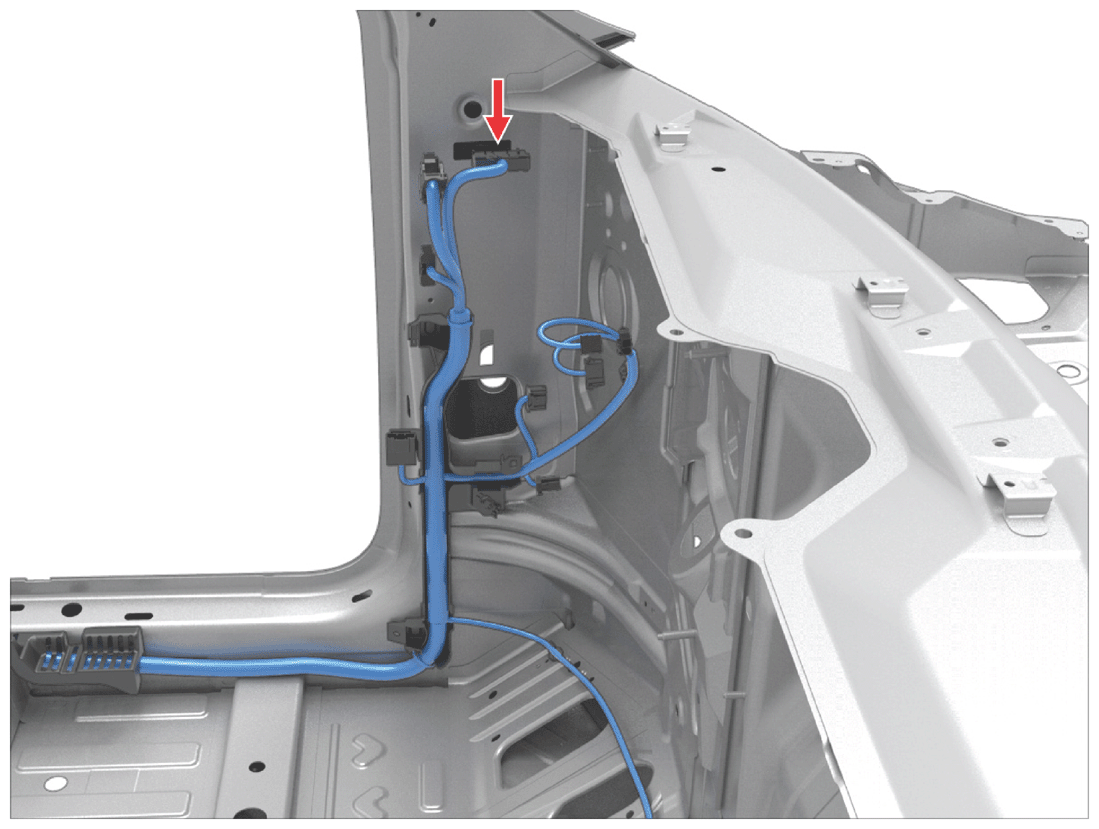

Fig 1: Connector Component Location - X030B [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Connector Detail: SUMITOMO 6098-8947
Color: WH

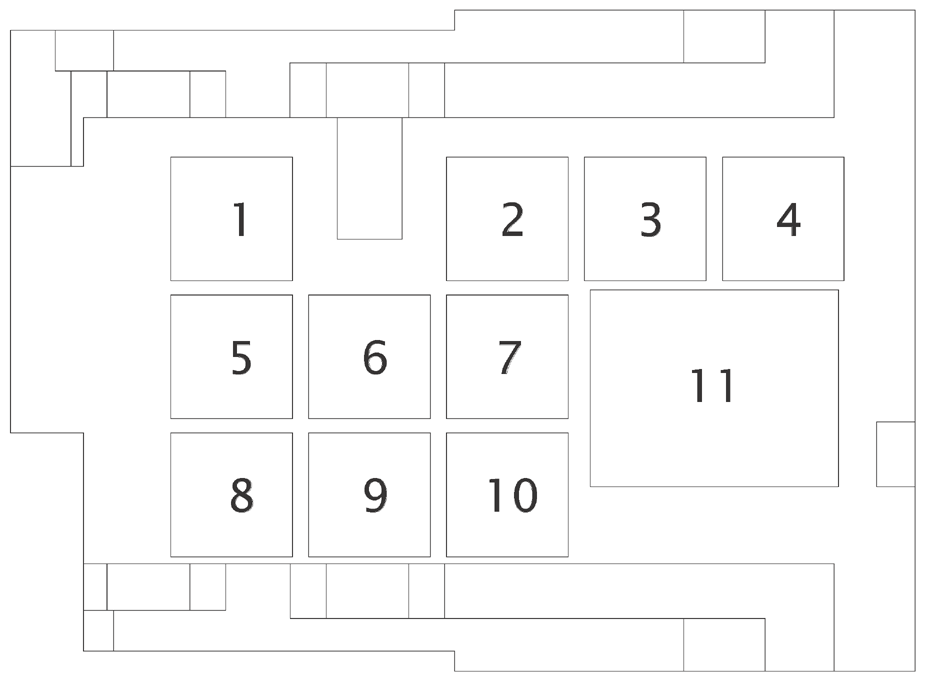

Fig 2: Connector End View - X030B [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | BK | 0.50 | SN | X924M-20 | 8240-0215 |
| 2 | GN | 1.50 | SN | X046-2 | 8240-0214 |
| 3 | WH | 1.50 | SN | X046-15 | 8240-0214 |
