Connector End View - X021 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]

Location:

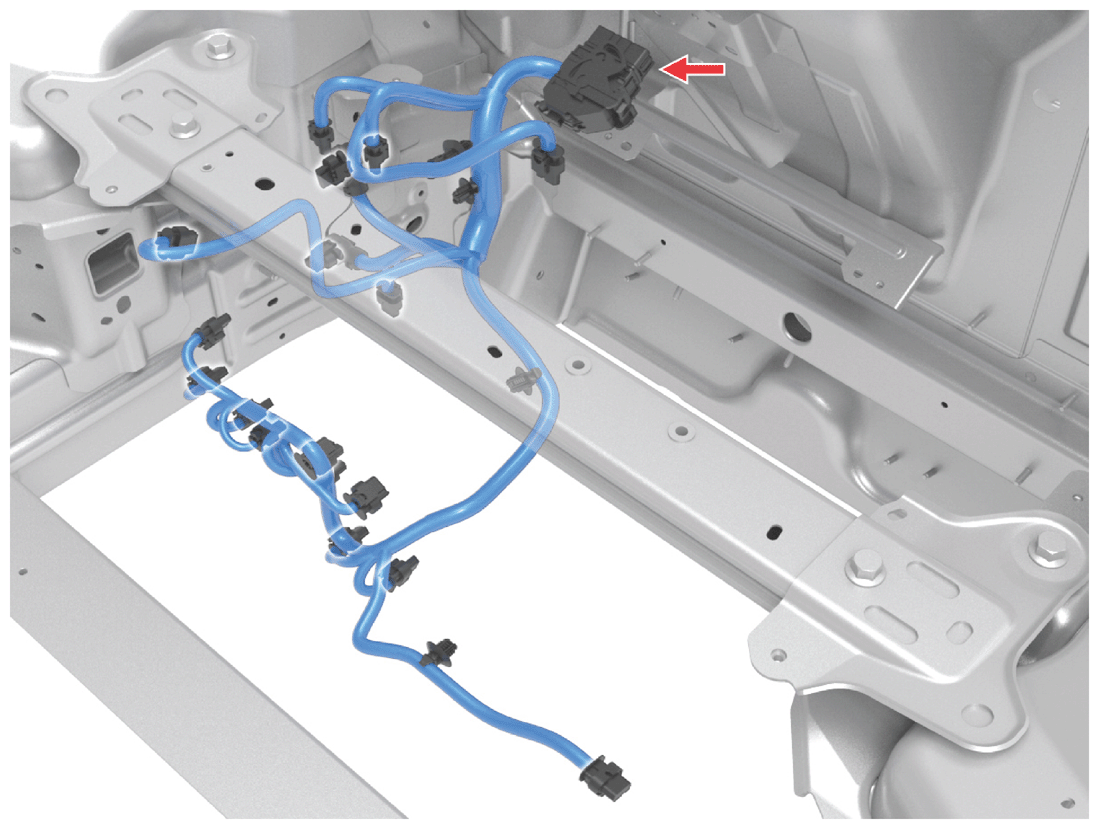

Fig 1: Connector Component Location - X021 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]

Courtesy of NISSAN NORTH AMERICA, INC.

Connector Detail: DELPHI 13648596

Color: BK

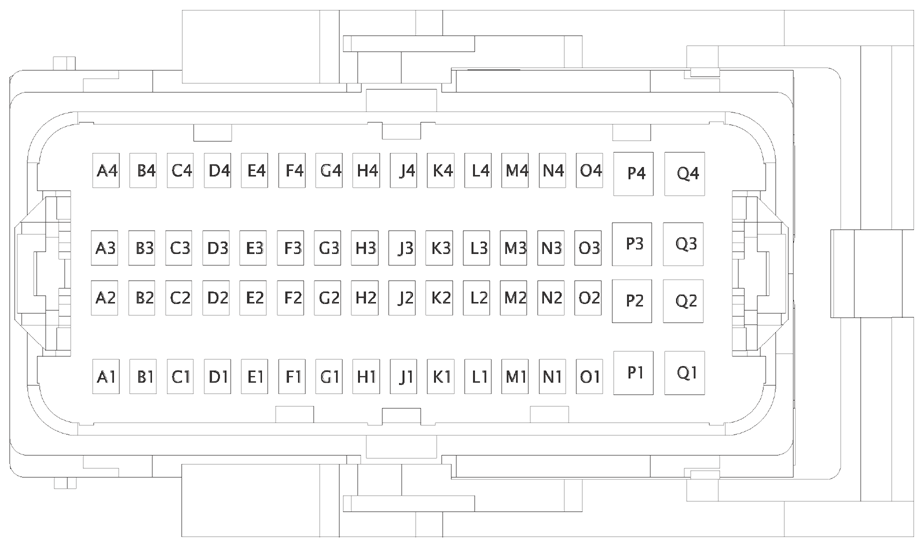

Fig 2: Connector End View - X021 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]

Courtesy of NISSAN NORTH AMERICA, INC.

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal	Seal
A1	RD	0.50	SN	X500-2	13648598	MAT-120-260
A2	YE	0.50	SN	X499-2	13648598	MAT-120-260
A3	YE	0.50	SN	X504-2	13648598	MAT-120-260
A4	VT	0.50	SN	X505-2	13648598	MAT-120-260
B1	YE	0.50	SN	X500-4	13648598	MAT-120-260
B2	GN	0.50	SN	X499-4	13648598	MAT-120-260
B3	GY	0.50	SN	X504-4	13648598	MAT-120-260
B4	RD	0.50	SN	X505-4	13648598	MAT-120-260
C1	BU	0.50	SN	X500-1	13648598	MAT-120-260
C2	TN	0.50	SN	X499-1	13648598	MAT-120-260
C3	GN	0.50	SN	X504-1	13648598	MAT-120-260
C4	WH	0.50	SN	X505-1	13648598	MAT-120-260
D1	BK	0.50	SN	X500-3	13648598	MAT-120-260
D2	BU	0.50	SN	X499-3	13648598	MAT-120-260
D3	RD	0.50	SN	X504-3	13648598	MAT-120-260
D4	BN	0.50	SN	X505-3	13648598	MAT-120-260
E1	VT	0.50	SN	X517-1	13648598	MAT-120-260
E2	YE	0.50	SN	X513-2	13648598	MAT-120-260
E3
E4	WH	0.50	SN	X503-2	13648598	MAT-120-260
F1	WH	0.50	SN	X517-2	13648598	MAT-120-260
F2	BK	0.50	SN	X529-4	13648598	MAT-120-260
F3	WH	0.50	SN	X513-3	13648598	MAT-120-260
F4	RD	0.50	SN	X503-4	13648598	MAT-120-260
G1	YE	0.50	SN	X518-1	13648598	MAT-120-260
G2	GN	0.50	SN	X533-2	13648598	MAT-120-260
G3	BU	0.50	SN	X529-1	13648598	MAT-120-260
G4	BU	0.50	SN	X503-1	13648598	MAT-120-260
H1	RD	0.50	SN	X518-2	13648598	MAT-120-260
H2	VT	0.50	SN	X533-3	13648598	MAT-120-260
H3
H4	YE	0.50	SN	X503-3	13648598	MAT-120-260
J1	BN	0.50	SN	X513-4	13648598	MAT-120-260
J2	BK	0.50	SN	X533-4	13648598	MAT-120-260
J3	WH	0.50	SN	X519-4	13648598	MAT-120-260
J4	GN	0.50	SN	X502-2	13648598	MAT-120-260
K1	VT	0.50	SN	X513-1	13648598	MAT-120-260
K2	BU	0.50	SN	X533-1	13648598	MAT-120-260
K3	RD	0.50	SN	X519-3	13648598	MAT-120-260
K4	WH	0.50	SN	X502-4	13648598	MAT-120-260
L1	WH	0.50	SN	X511-1	13648598	MAT-120-260
L2	VT	0.50	SN	X534-2	13648598	MAT-120-260
L3	VT	0.50	SN	X516-1	13648598	MAT-120-260
L4	BU	0.50	SN	X502-1	13648598	MAT-120-260
M1	GN	0.50	SN	X511-4	13648598	MAT-120-260
M2	WH	0.50	SN	X534-3	13648598	MAT-120-260
M3	WH	0.50	SN	X516-2	13648598	MAT-120-260
M4	GY	0.50	SN	X502-3	13648598	MAT-120-260
N1	BN	0.50	SN	X534-4	13648598	MAT-120-260
N2
N3	TN	0.50	SN	X519-1	13648598	MAT-120-260
N4	WH	0.50	SN	X529-2	13648598	MAT-120-260
O1	YE	0.50	SN	X534-1	13648598	MAT-120-260
O2
O3	VT	0.50	SN	X519-2	13648598	MAT-120-260
O4	YE	0.50	SN	X529-3	13648598	MAT-120-260
P1	BK	1.00	SN		13741954	MAT-120-260
P2	BK	1.00	SN		13741954	MAT-120-260
P3	GN	1.00	SN	X510-1	13741954	MAT-120-260
P4	WH	1.00	SN	X510-2	13741954	MAT-120-260
Q1	BU	1.00	SN	X508-3	13741954	MAT-120-260
Q2	YE	1.00	SN	X508-2	13741954	MAT-120-260
Q3	RD	1.00	SN	X508-1	13741954	MAT-120-260
Q4	VT	1.00	SN	X510-3	13741954	MAT-120-260
