Connector End View - G031 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Location:

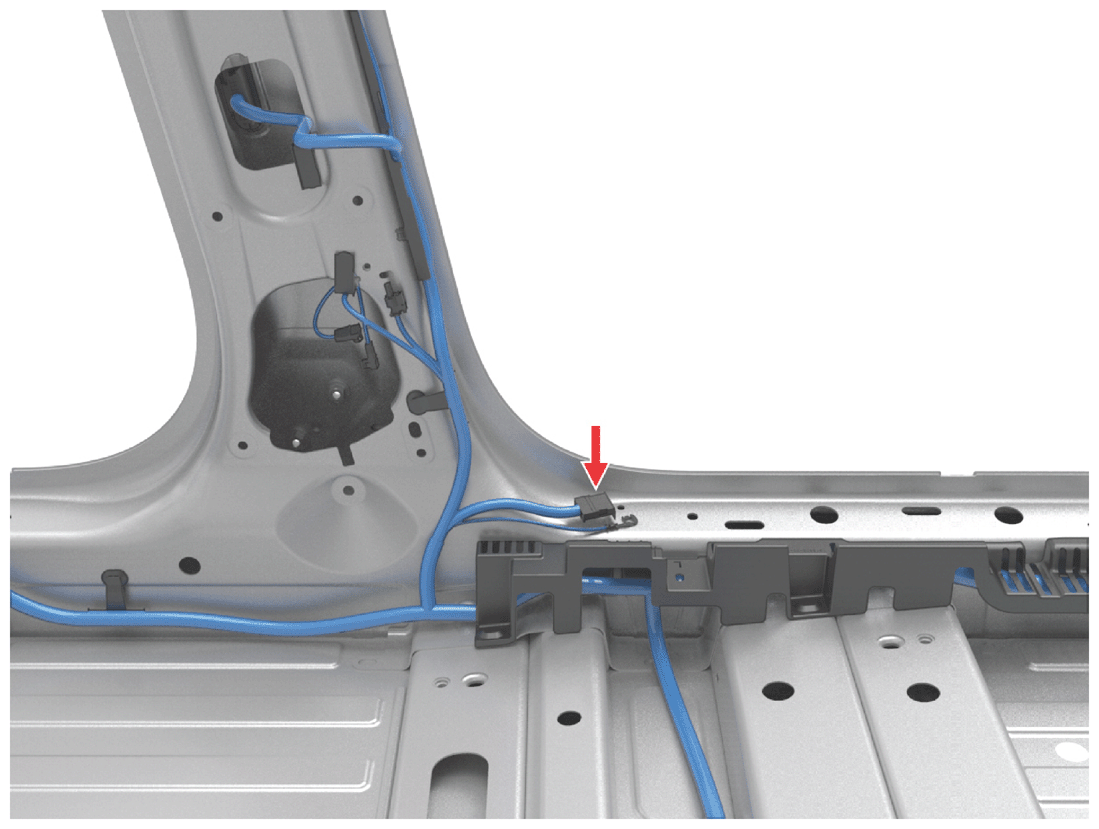

Fig 1: Connector Component Location - G031 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Connector Detail: SUMITOMO 6098-8536
Color: NA
Fig 2: Connector End View - G031 [Fremont/Berlin: 01/13/2021 - 01/06/2022 | Shanghai: 12/14/2020 - 11/15/2021]
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | BK | 0.35 | SN | X201-62 | 8240-0215 |
| 2 | BK | 0.35 | SN | X201-55 | 8240-0215 |
| 3 | |||||
| 4 | BK | 0.50 | SN | X930F-7 | 8240-0215 |
| 5 | BK | 2.00 | SN | X930F-14 | 8240-0214 |
| 6 | BK | 0.35 | SN | X493-2 | 8240-0215 |
| 7 | |||||
| 8 | BK | 2.00 | SN | X943F-26 | 8240-0214 |
| 9 | BK | 0.35 | SN | X981M-20 | 8240-0215 |
| 10 | BK | 0.35 | SN | X168-1 | 8240-0215 |
| 11 | |||||
| 12 | BK | 2.00 | SN | X165-2 | 8240-0214 |
