HVAC Connector Locations [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]

X 058 Location:

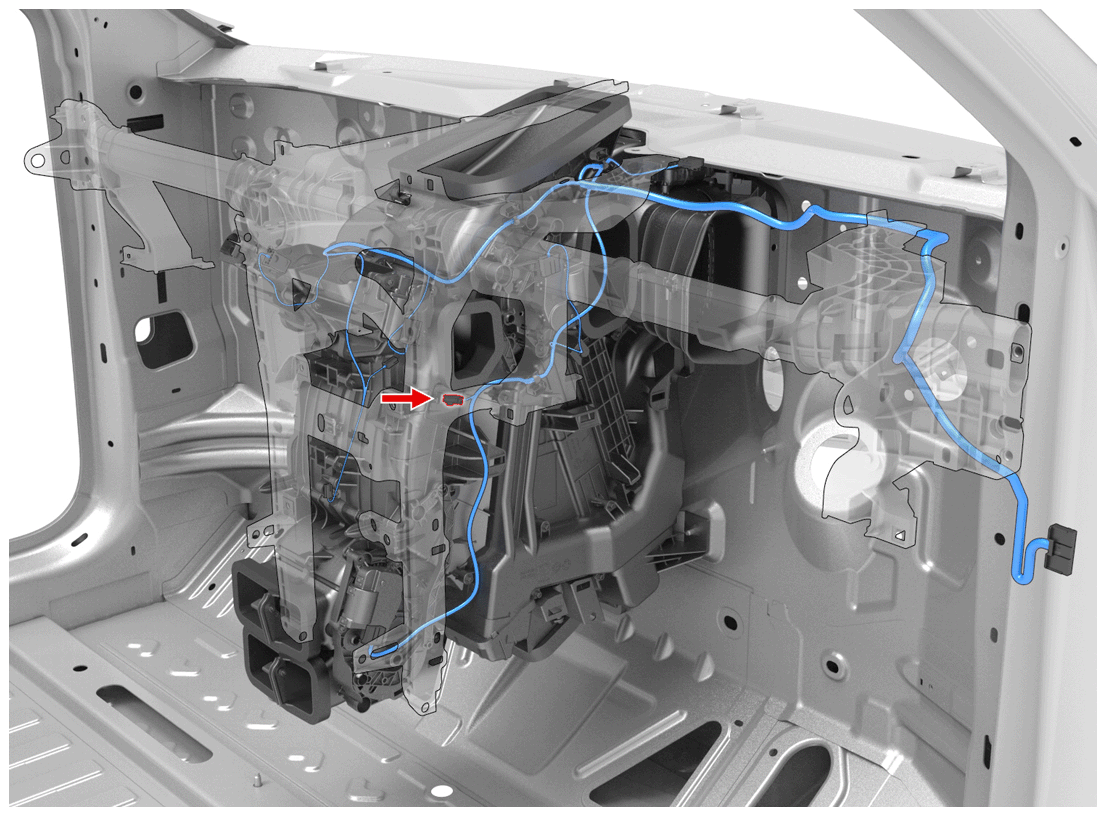

Fig 1: Connector Component Location - X 058 [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]

Courtesy of TESLA, INC.

X 548 Location:

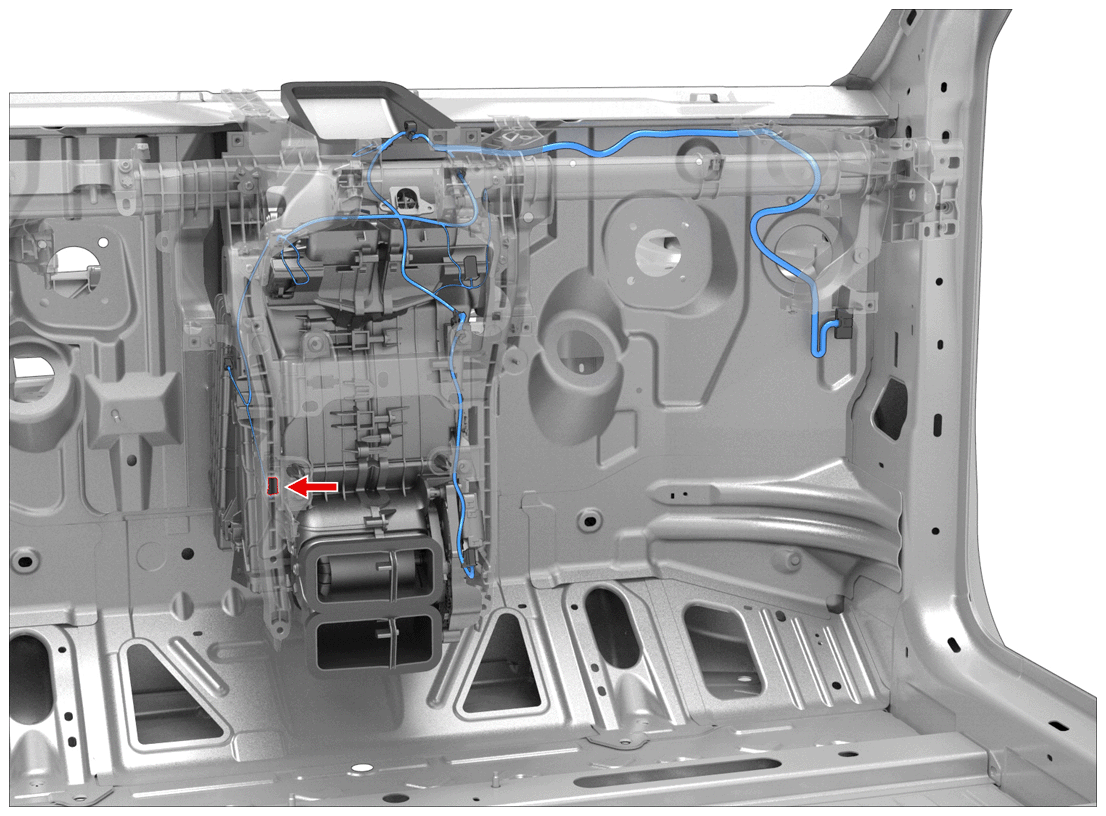

Fig 2: Connector Component Location - X 548 [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]

Courtesy of TESLA, INC.

X 549 Location:

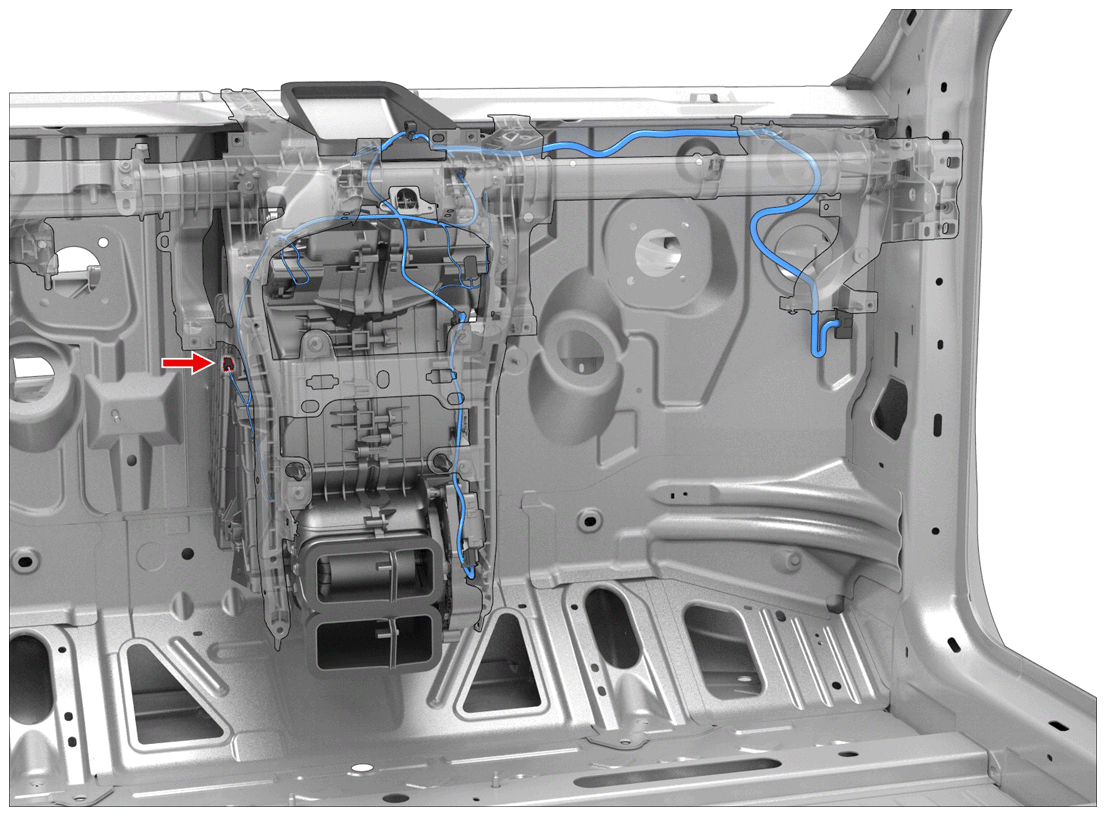

Fig 3: Connector Component Location - X 549 [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]

Courtesy of TESLA, INC.

X 551 Location:

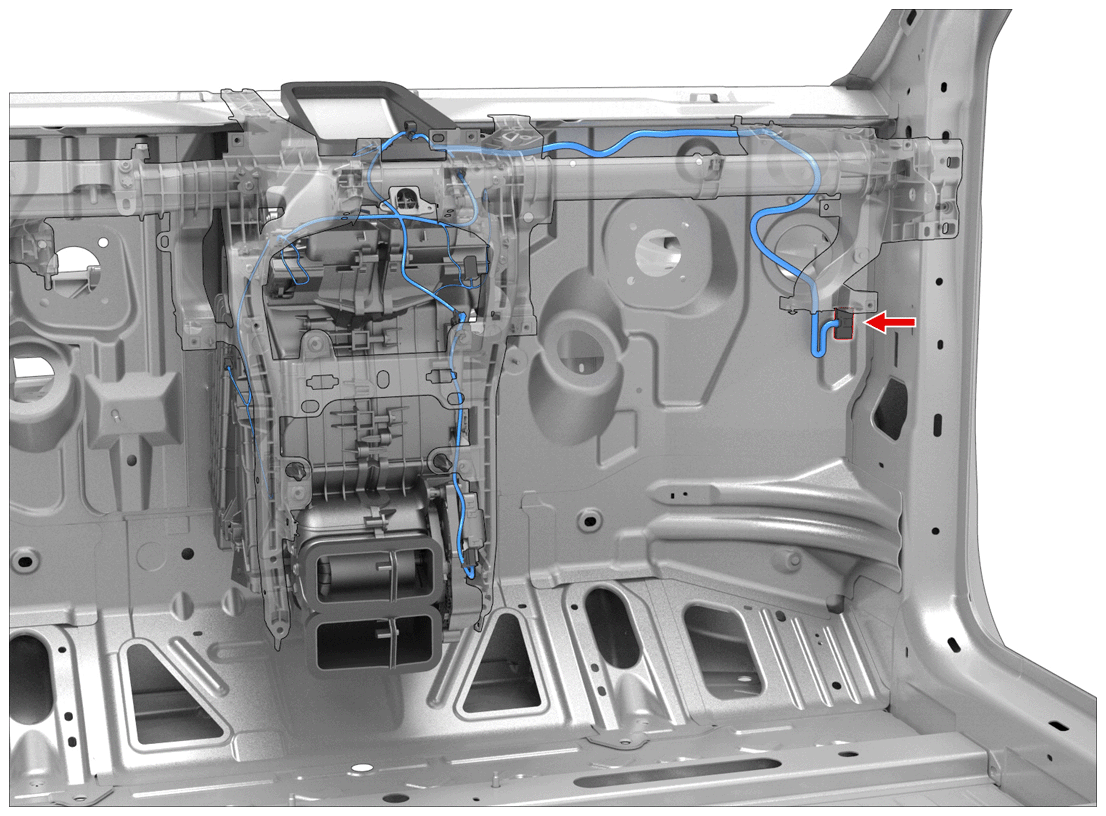

Fig 4: Connector Component Location - X 551 [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]

Courtesy of TESLA, INC.

X 552 Location:

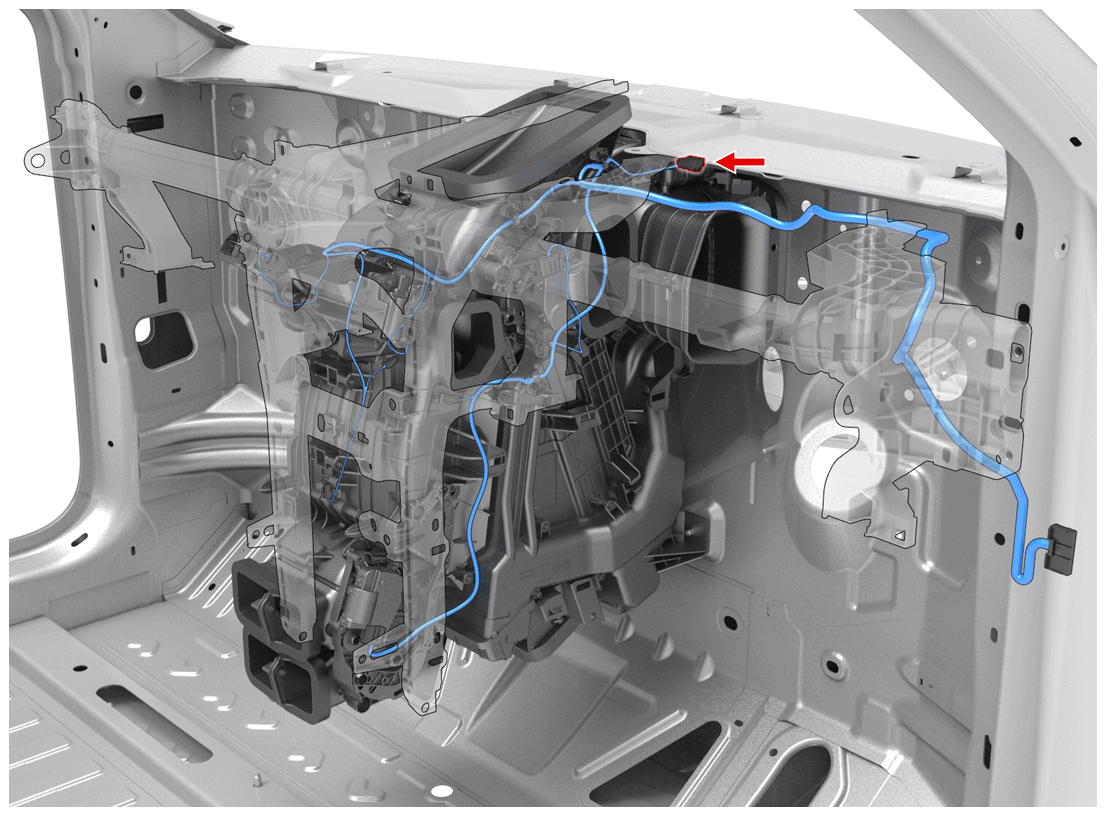

Fig 5: Connector Component Location - X 552 [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]

Courtesy of TESLA, INC.

X 553 Location:

Fig 6: Connector Component Location - X 553 [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]

Courtesy of TESLA, INC.

X 554 Location:

Fig 7: Connector Component Location - X 554 [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]

Courtesy of TESLA, INC.

X 555 Location:

Fig 8: Connector Component Location - X 555 [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]

Courtesy of TESLA, INC.

X 556 Location:

Fig 9: Connector Component Location - X 556 [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]

Courtesy of TESLA, INC.
