Connector End View - X946M [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]

Location:

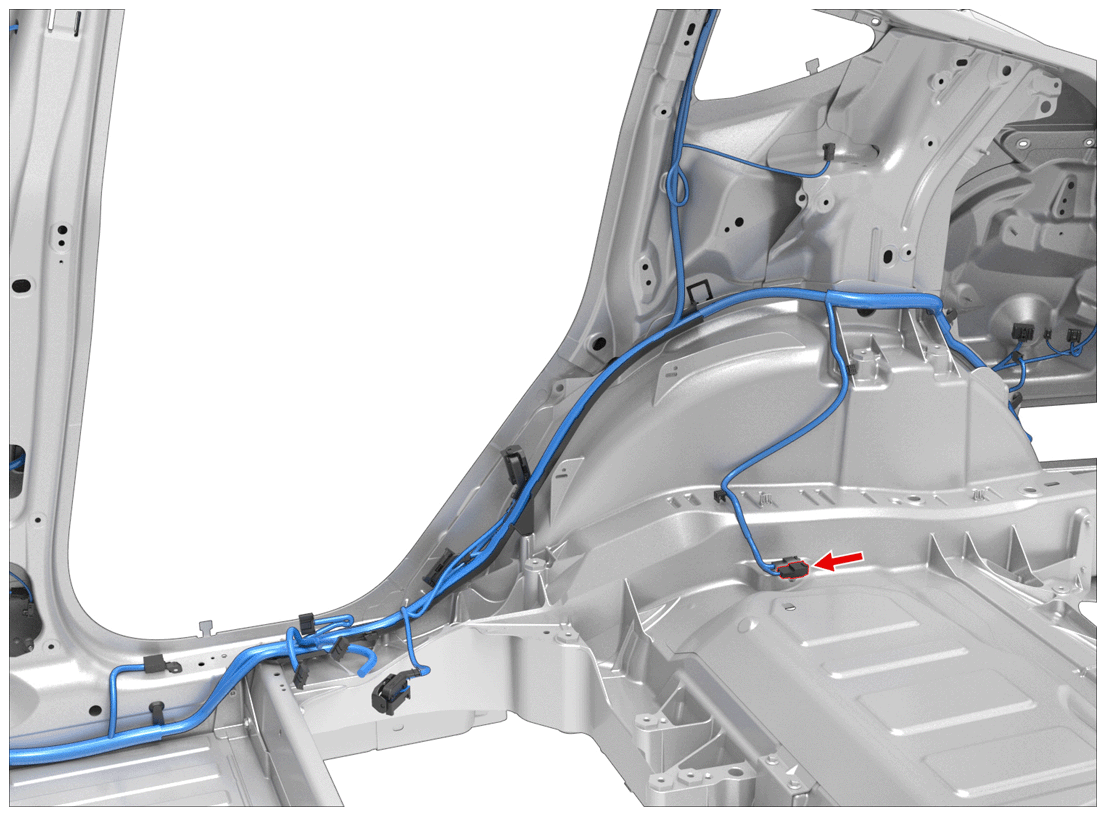

Fig 1: Connector Component Location - X946M [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]

Courtesy of TESLA, INC.

Connector Detail: SUMITOMO 6098-5693

Color: BU

Fig 2: Connector End View - X946M [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]

Courtesy of TESLA, INC.

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal
1	GN	2.00	SN	X050A-32	8230-4923
2	YE	0.35	SN	X059-35	8230-4925
3	GY	0.35	SN		8230-4925
4	WH	0.35	SN	X059-36	8230-4925
5	GY	0.35	SN		8230-4925
6
7
8	BK	2.00	SN	G042-5	8230-4923
