Connector End View - X909M [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]

Location:

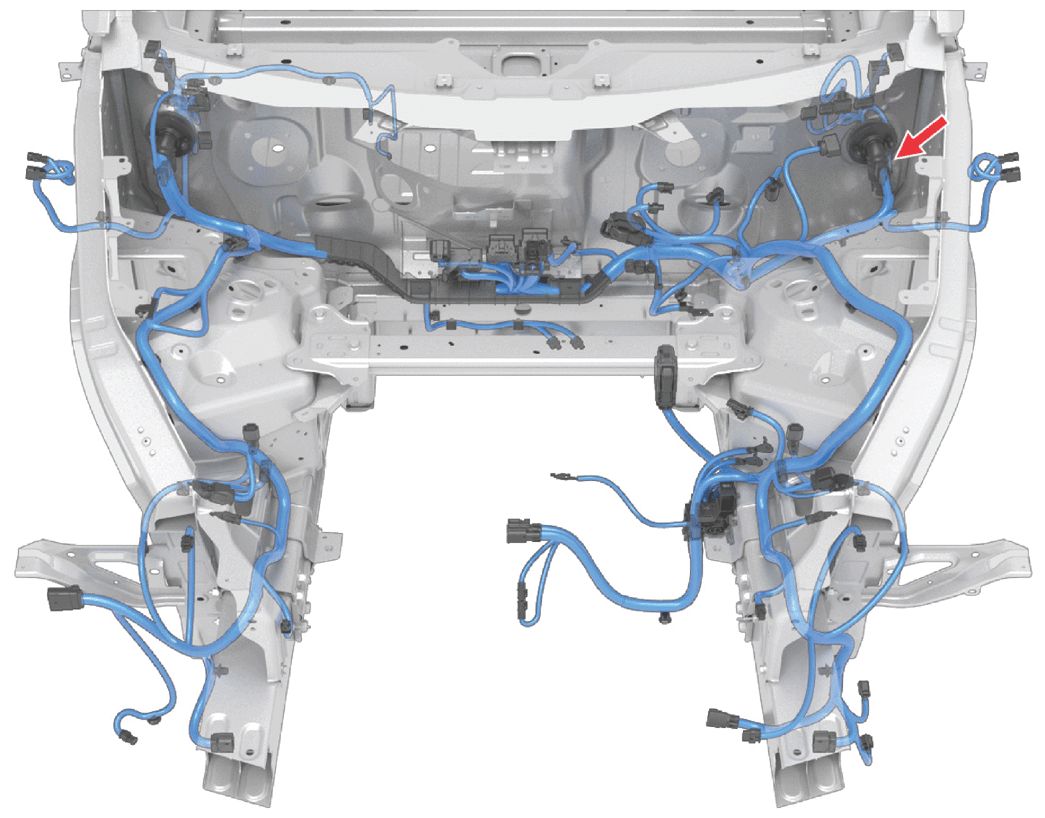

Fig 1: Connector Component Location - X909M [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]
G14850109Courtesy of TESLA, INC.

Connector Detail: DELPHI 33245685

Color: WH

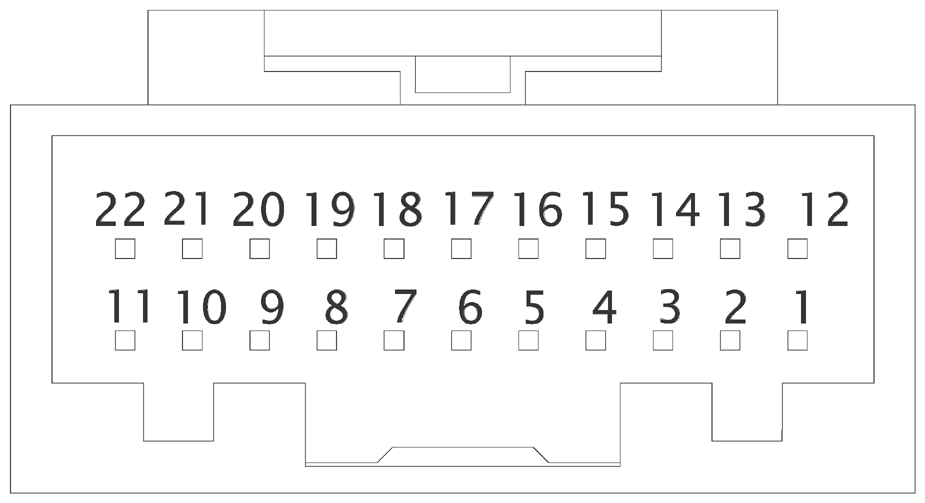

Fig 2: Connector End View - X909M [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]
G14850110Courtesy of TESLA, INC.

Serviceability: Terminal Pigtail

Cavity Color Size Plate Destination Terminal
1
2
3
4
5
6
7 TN 0.35 SN X905F-5 8100-3623
8 YE 0.35 SN X905F-6 8100-3623
9
10
11
12 WH 0.35 SN X905F-11 8100-3623
13 RD 0.35 SN X905F-12 8100-3623
14
15 BN 0.35 SN X906F-9 8100-3623
16 YE/LTBU 0.35 SN X010-15 8100-3623
17 YE 0.35 SN X010-30 8100-3623
18
19
20
21
22
