Connector End View - X905M [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]

Location:

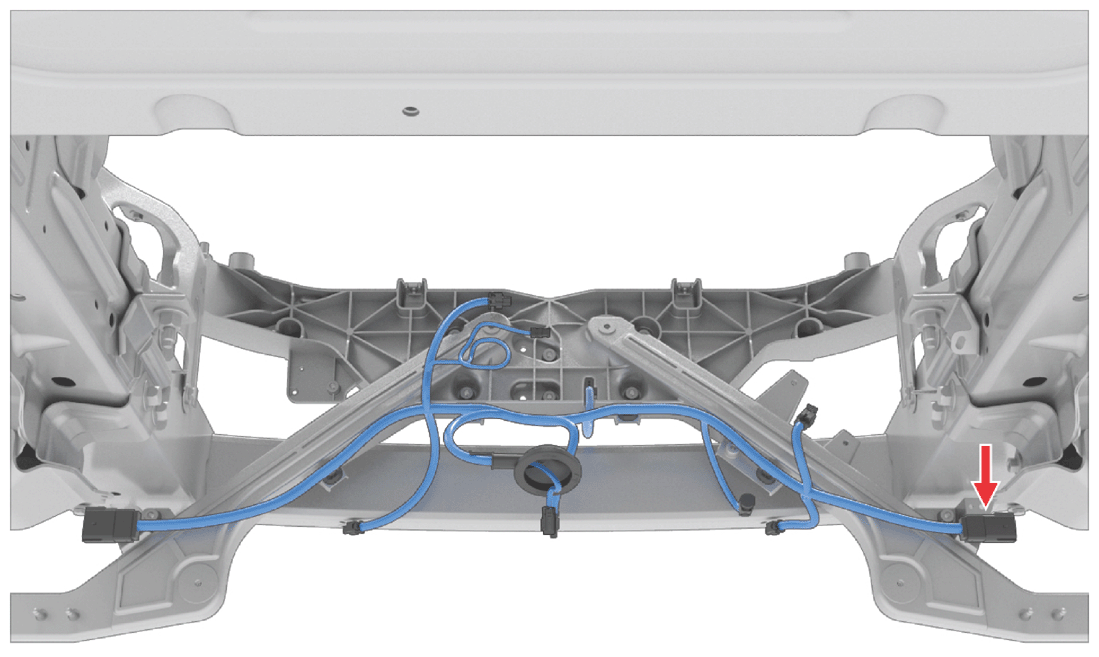

Fig 1: Connector Component Location - X905M [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]

Courtesy of TESLA, INC.

Connector Detail: MOLEX 33482-6201

Color: BK

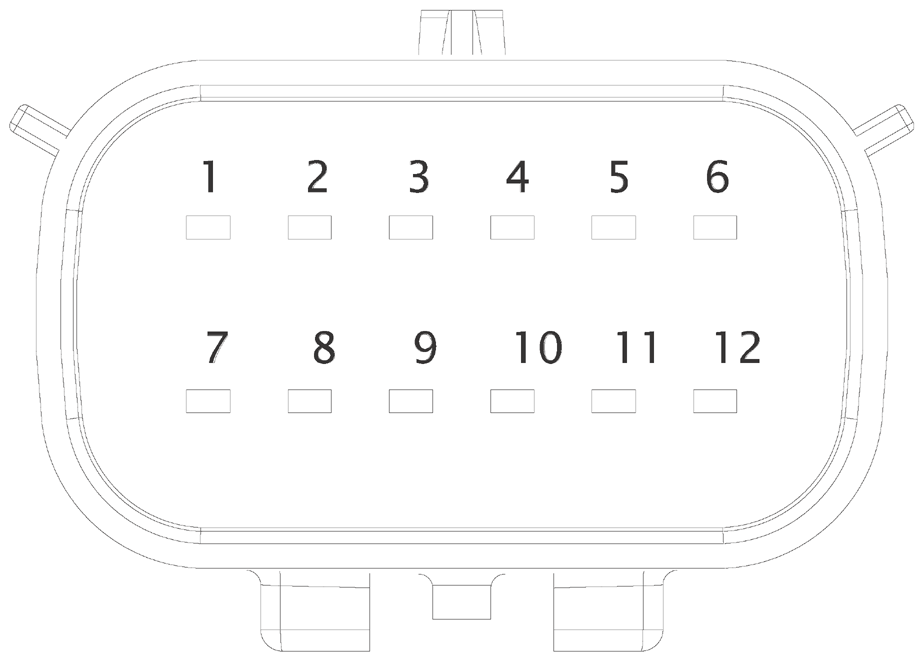

Fig 2: Connector End View - X905M [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]

Courtesy of TESLA, INC.

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal	Seal
1	BK	0.35	SN	X104-1	33000-0004	MAT-120-240
2	TN	0.35	SN	X105-4	33000-0004	MAT-120-240
3	VT	0.35	SN	X105-2	33000-0004	MAT-120-240
4	GY	0.35	SN	X105-3	33000-0004	MAT-120-240
5	TN	0.35	SN	X211-1	33000-0004	MAT-120-240
6	YE	0.35	SN	X211-2	33000-0004	MAT-120-240
7
8
9	RD	0.50	SN	X527-1	33000-0004	MAT-120-240
10	BK	0.50	SN	X527-2	33000-0004	MAT-120-240
11	WH	0.35	SN	X212-1	33000-0004	MAT-120-240
12	RD	0.35	SN	X212-2	33000-0004	MAT-120-240
