Connector End View - X891A [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]

Location:

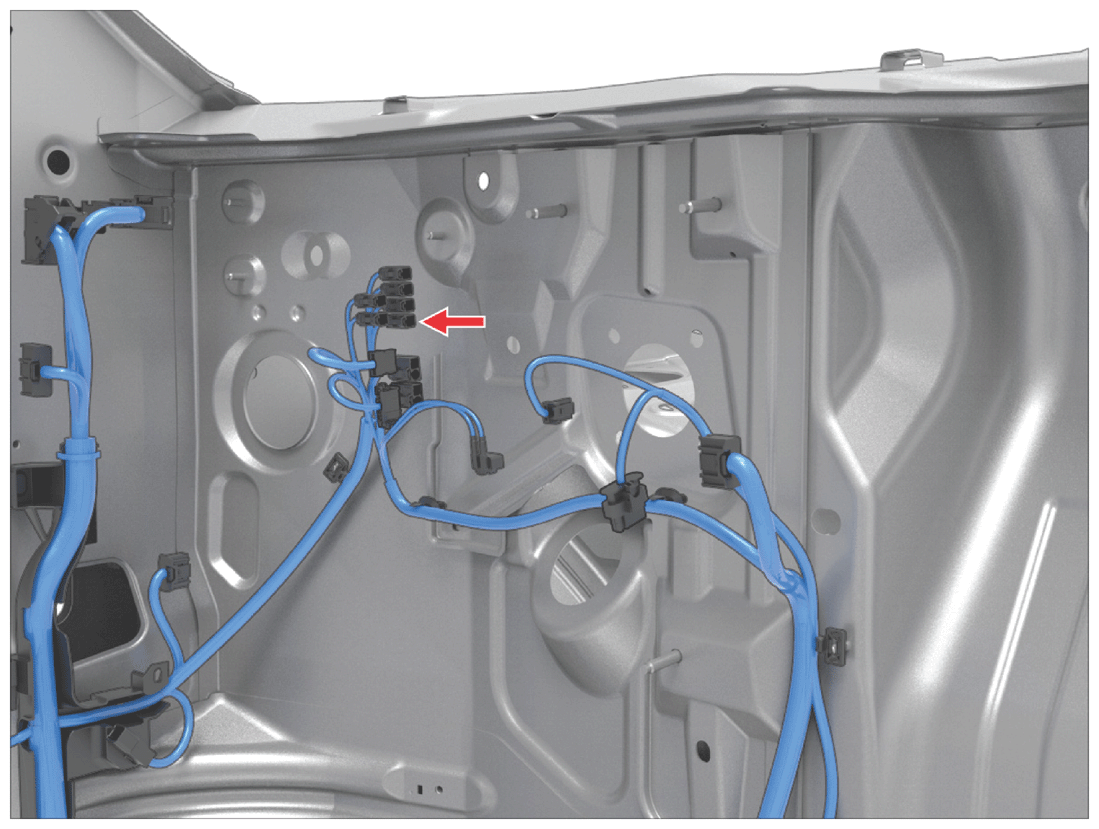

Fig 1: Connector Component Location - X891A [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]
G14850085Courtesy of TESLA, INC.

Connector Detail: ROSENBERGER 59Z113-000-A

Color: BK

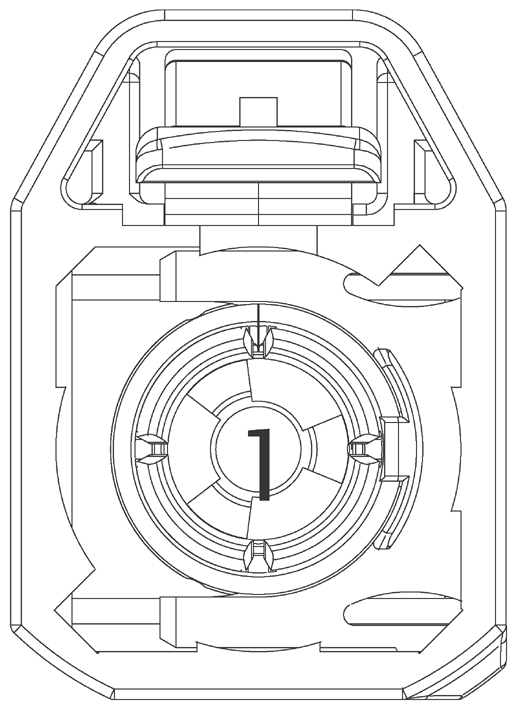

Fig 2: Connector End View - X891A [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]
G14850086Courtesy of TESLA, INC.

Serviceability: Cable Subassembly

Cavity Color Size Plate Destination Terminal
1 BK D302 AU X886F-3 59K16B-1M4T4
