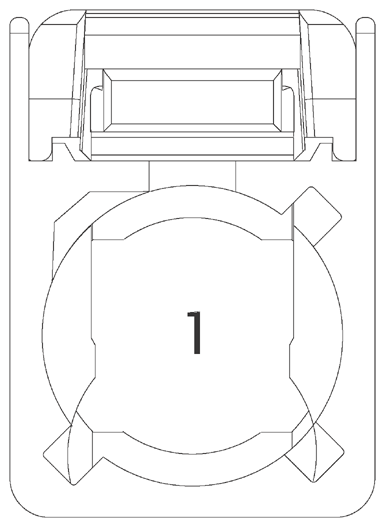

Connector End View - X881 [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]

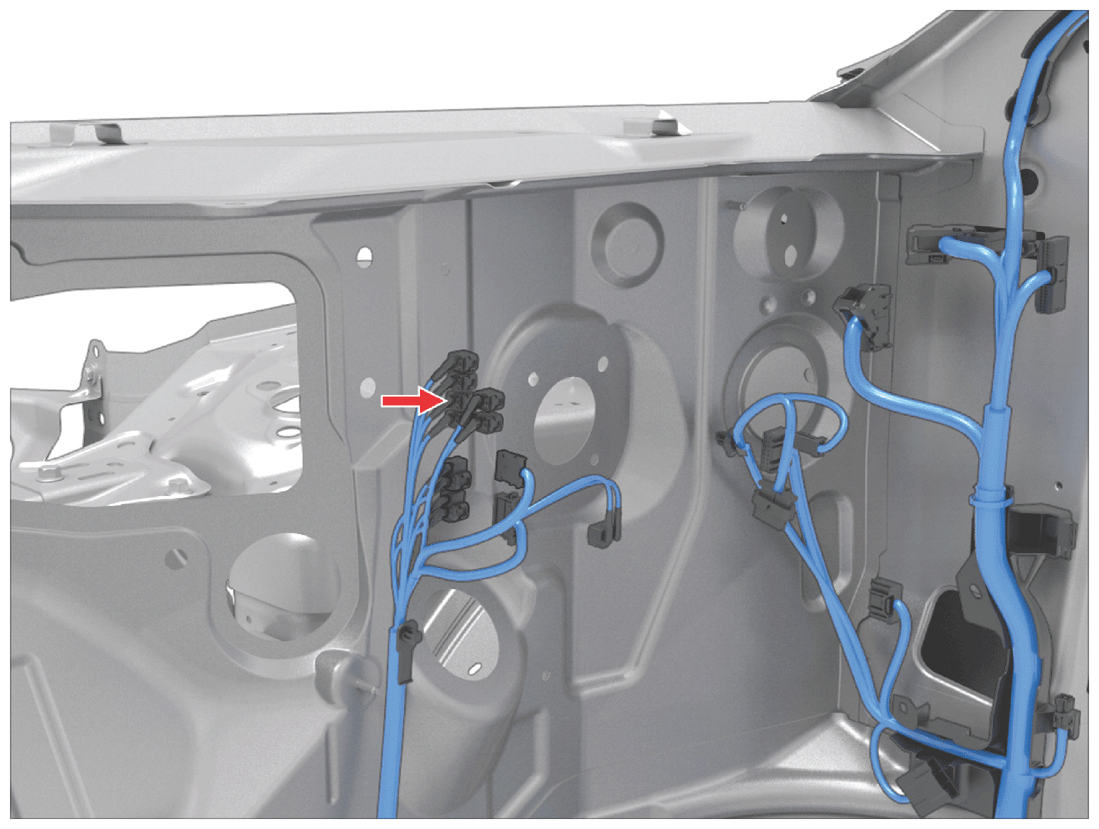

Location:
Courtesy of TESLA, INC.
Connector Detail: ROSENBERGER 59K27D-1M4Z4-B
Color: WT
Courtesy of TESLA, INC.
Serviceability: Cable Subassembly
| Cavity |
Color |
Size |
Plate |
Destination |
Terminal |
| 1 |
BK |
D302 |
AU |
X886F-4 |
PIA-COAX-L |
