Connector End View - X870A [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]

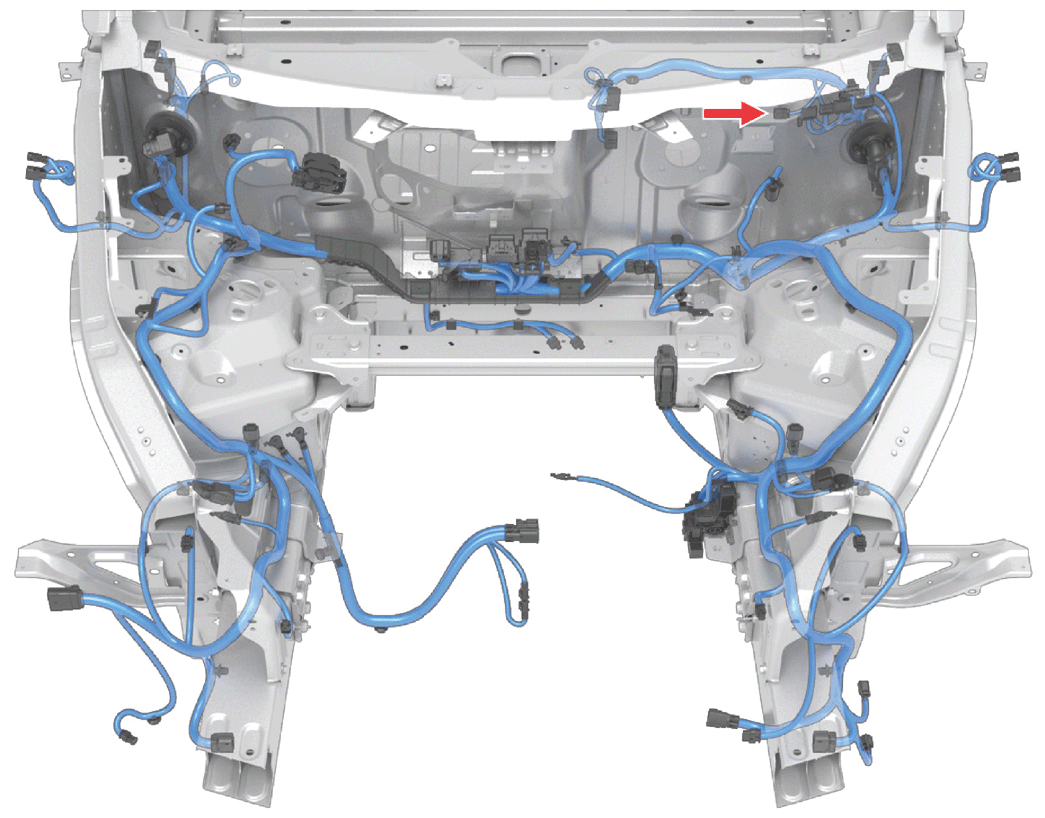

Location:
Courtesy of TESLA, INC.

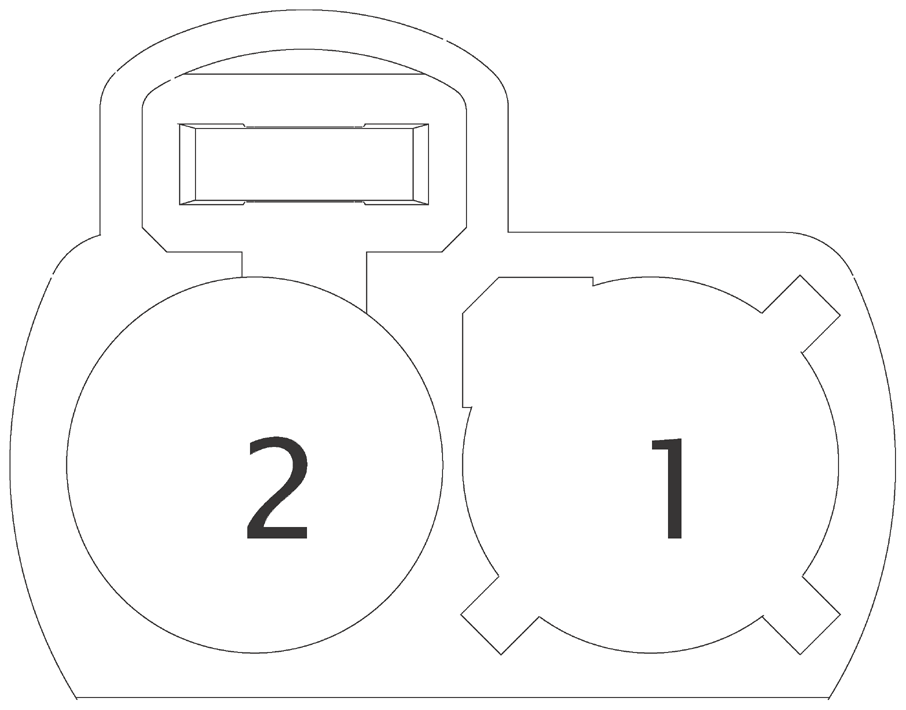

Connector Detail: ROSENBERGER 59Z115-000-F
Color: BN
Courtesy of TESLA, INC.
Serviceability: Cable Subassembly
| Cavity |
Color |
Size |
Plate |
Destination |
Terminal |
| 1 |
BK |
D302 |
AU |
X823-1 |
59K16B-1M4T4 |
| 2 |
BK |
D302 |
AU |
X824-1 |
59K16B-1M4T4 |
