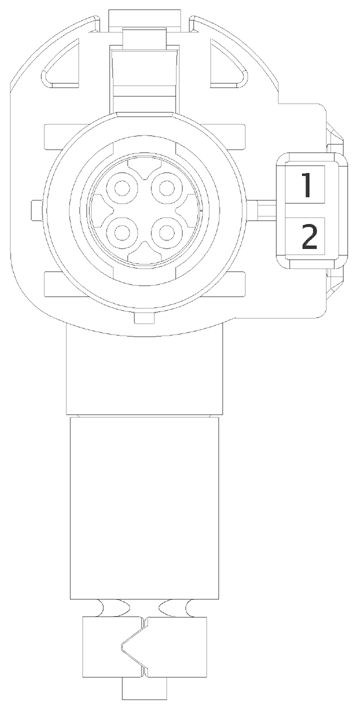

Connector End View - X860A [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]
Location:
Courtesy of TESLA, INC.
Connector Detail: ROSENBERGER 99K20K-1D5A5-D
Color: BO
Courtesy of TESLA, INC.
Serviceability: Cable Subassembly
| Cavity |
Color |
Size |
Plate |
Destination |
Terminal |
| 1 |
RD |
0.50 |
SN |
X861_1-1 |
5-963715-1 |
| 2 |
BK |
0.50 |
SN |
X861_1-2 |
5-963715-1 |
| H |
BK |
Q1020 |
AU |
X861_1-H |
PIA-HSD-TERM |
