Connector End View - X804A [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]

Location:

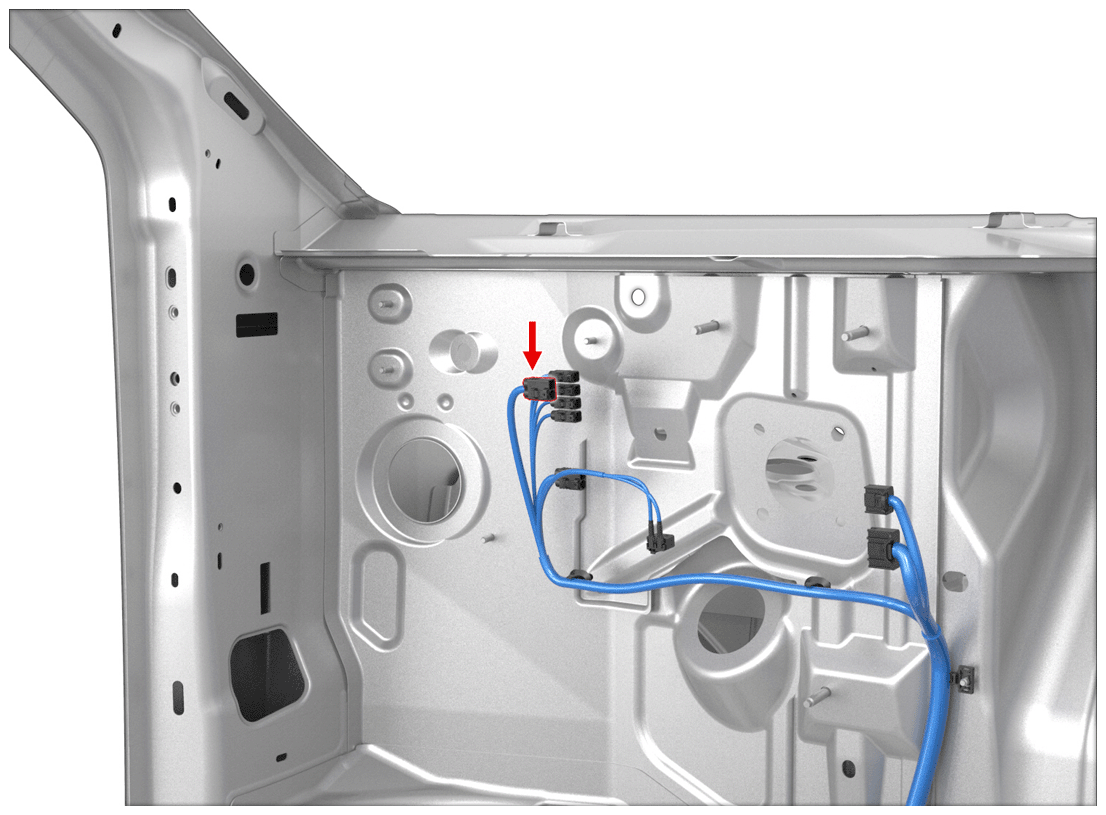

Fig 1: Connector Component Location - X804A [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]

Courtesy of TESLA, INC.

Connector Detail: ROSENBERGER 59Z115-000-H

Color: VT

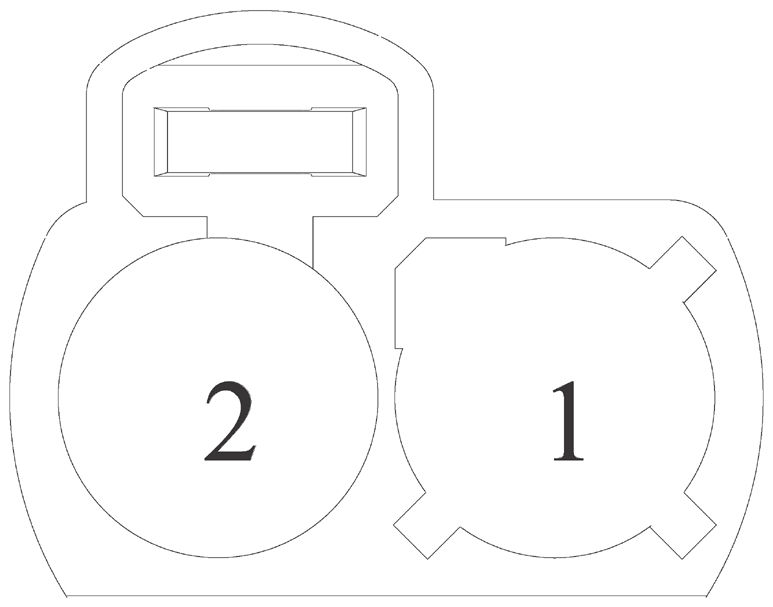

Fig 2: Connector End View - X804A [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]

Courtesy of TESLA, INC.

Serviceability: Cable Subassembly
