Connector End View - X675A [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]

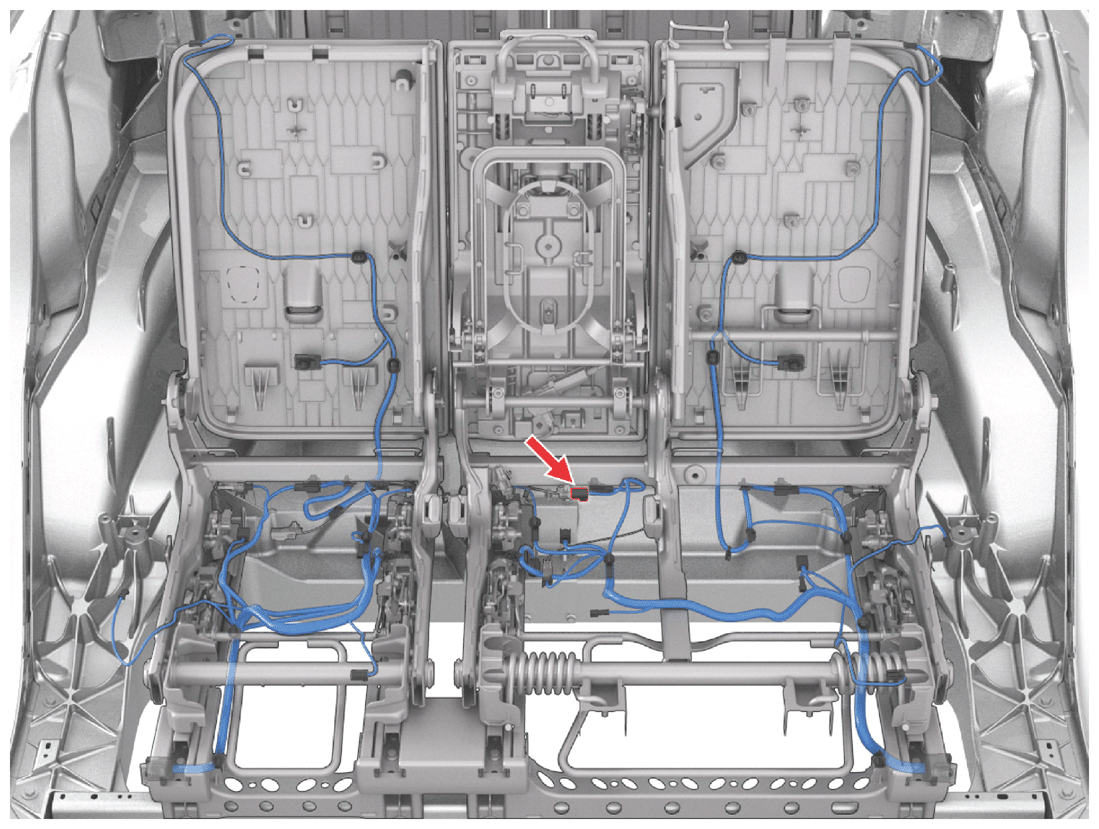

Location:
Courtesy of TESLA, INC.
Connector Detail: YAZAKI 7283-6443-40
Color: GY
Courtesy of TESLA, INC.
Serviceability: Terminal Pigtail
| Cavity |
Color |
Size |
Plate |
Destination |
Terminal |
| 1 |
YE |
0.35 |
SN |
X943M-18 |
7116-6315-02 |
| 2 |
GY |
0.35 |
SN |
|
7116-6315-02 |
