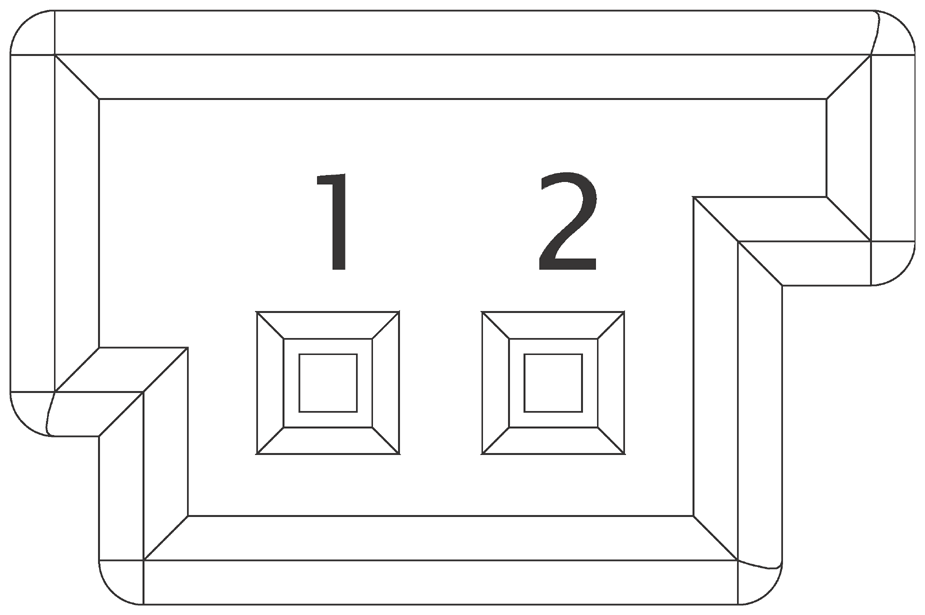

Connector End View - X646A [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]

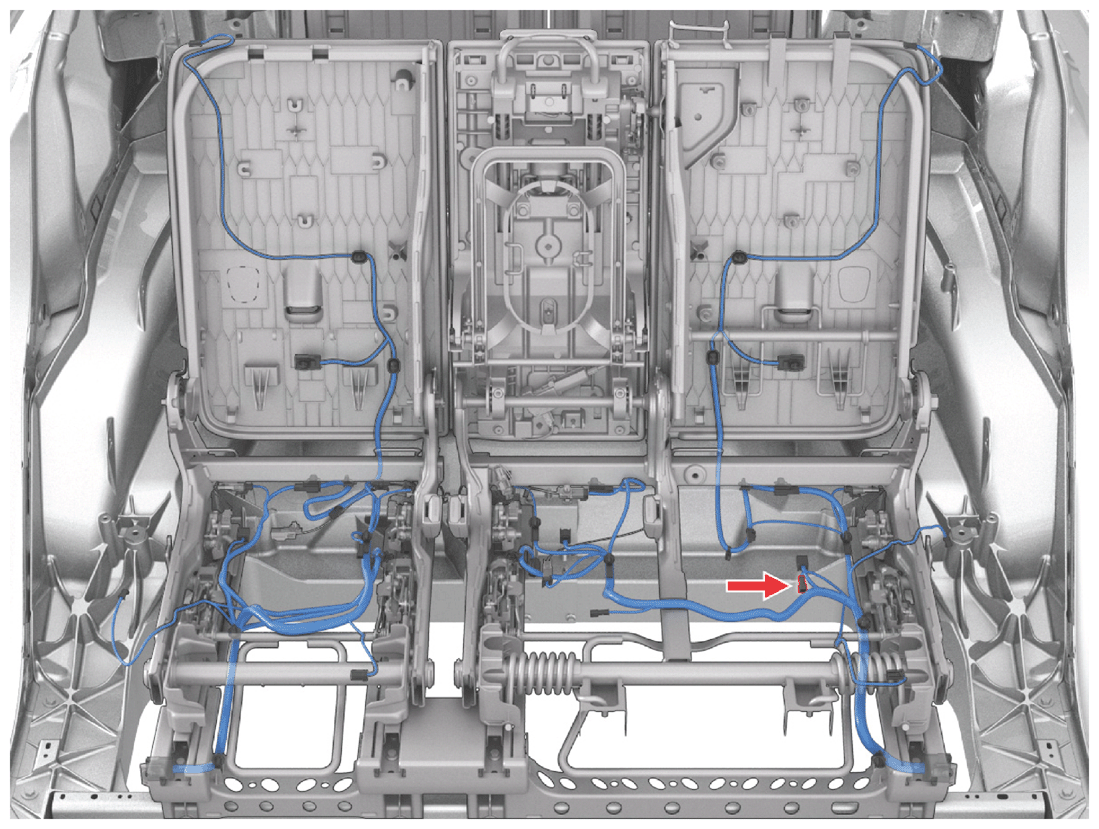

Location:
Courtesy of TESLA, INC.
Connector Detail: AMP 1-968699-1
Color: BK
Courtesy of TESLA, INC.
Serviceability: Terminal Pigtail
| Cavity |
Color |
Size |
Plate |
Destination |
Terminal |
| 1 |
BN |
0.35 |
SN |
X943M-19 |
6-928918-1 |
| 2 |
GY |
0.35 |
SN |
|
6-928918-1 |
