Connector End View - X613 [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]

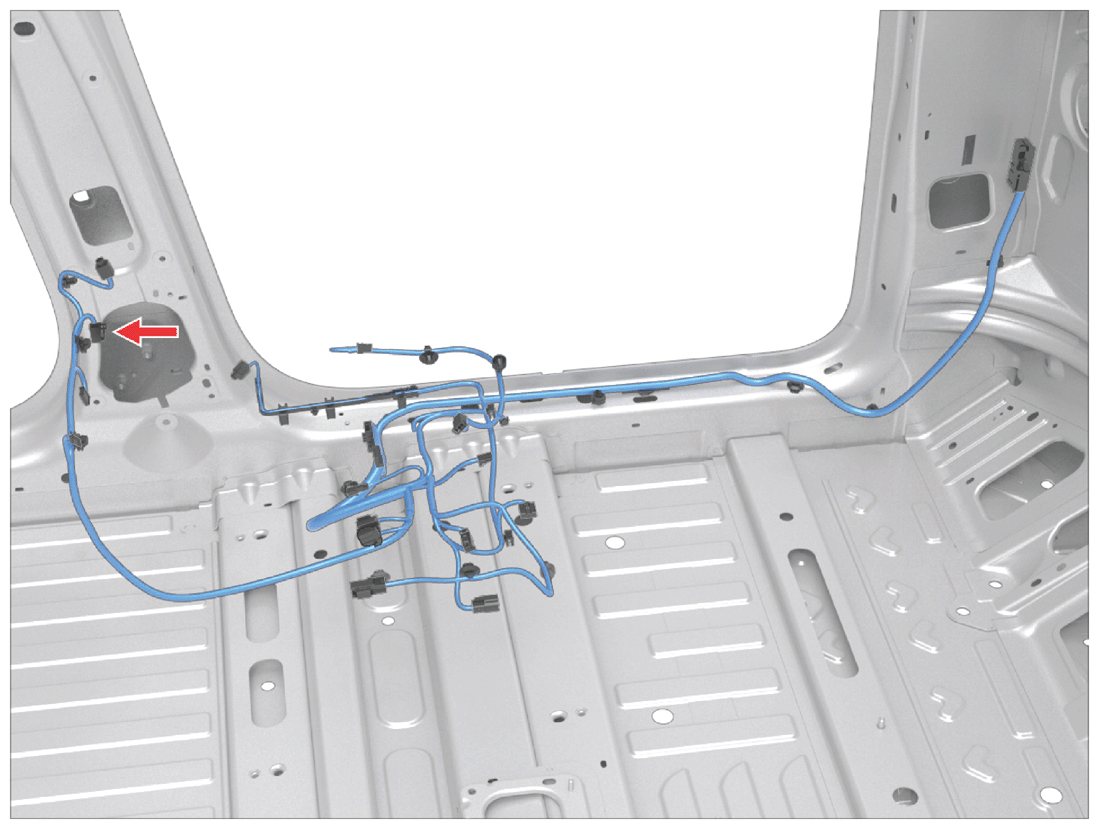

Location:
Courtesy of TESLA, INC.
Connector Detail: DELPHI 13597381
Color: BN
Courtesy of TESLA, INC.
Serviceability: Terminal Pigtail
| Cavity |
Color |
Size |
Plate |
Destination |
Terminal |
| 1 |
YE |
0.75 |
SN |
X052-30 |
968074-2 |
| 2 |
TN |
0.35 |
SN |
X052-5 |
5-928999-1 |
| 3 |
BK |
0.75 |
SN |
X052-29 |
968074-2 |
| 4 |
BK |
0.35 |
SN |
|
5-928999-1 |
