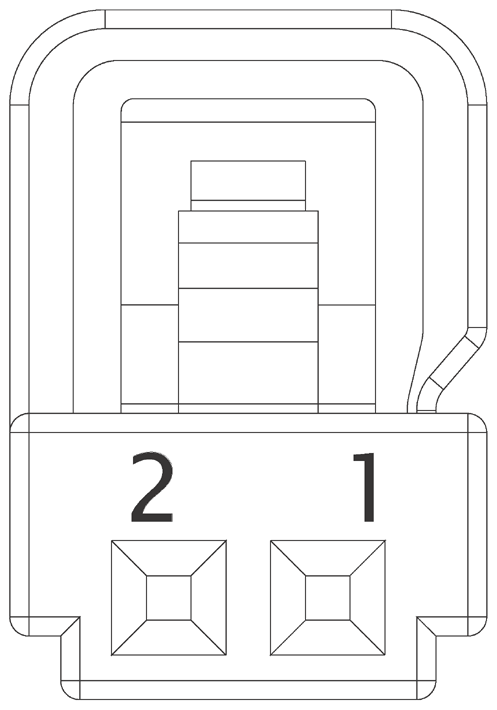

Connector End View - X591 [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]
Location:
Courtesy of TESLA, INC.
Connector Detail: AMP 1-1534113-1
Color: BK
Courtesy of TESLA, INC.
Serviceability: Terminal Pigtail
| Cavity |
Color |
Size |
Plate |
Destination |
Terminal |
| 1 |
BU |
0.50 |
SN |
X926F-24 |
5-963715-1 |
| 2 |
GN |
0.50 |
SN |
X926F-25 |
5-963715-1 |
