Connector End View - X576_1 [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]

Location:

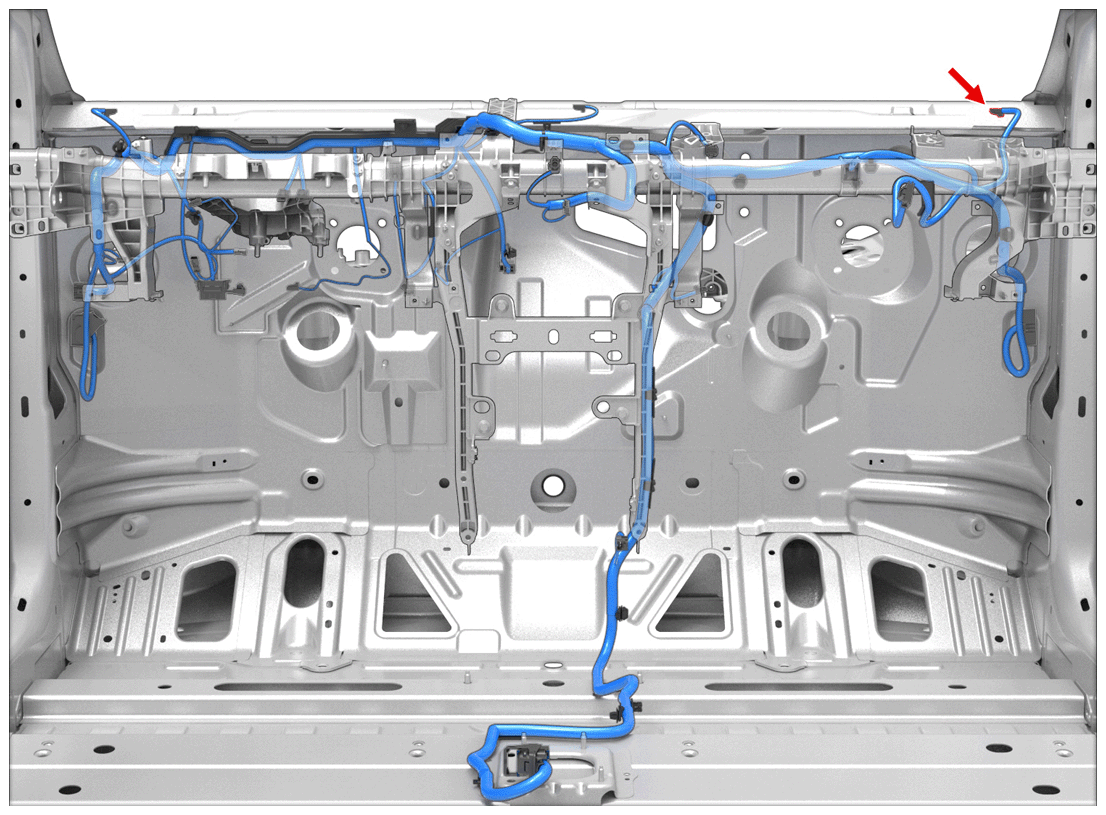

Fig 1: Connector Component Location - X576_1 [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]
G14849819Courtesy of TESLA, INC.

Connector Detail: DELPHI 35328464

Color: BK

Fig 2: Connector End View - X576_1 [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]
G14849820Courtesy of TESLA, INC.

Serviceability: Terminal Pigtail

Cavity Color Size Plate Destination Terminal
1 TN 0.50 SN X055_1-35 13580635
2 BK 0.50 SN X055_1-36 13580635
