Connector End View - X566_1 [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]

Location:

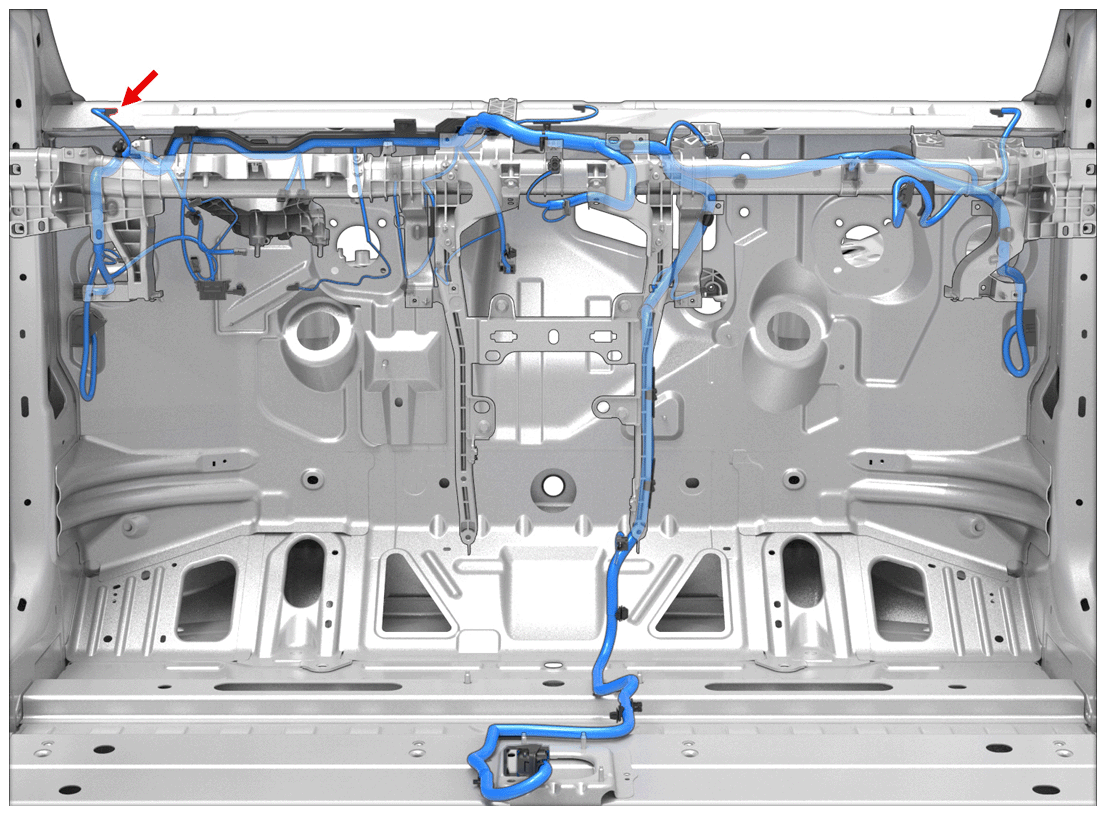

Fig 1: Connector Component Location - X566_1 [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]
G14849807Courtesy of TESLA, INC.

Connector Detail: DELPHI 35328464

Color: BK

Fig 2: Connector End View - X566_1 [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]
G14849808Courtesy of TESLA, INC.

Serviceability: Terminal Pigtail

Cavity Color Size Plate Destination Terminal
1 YE 0.50 SN X055_1-37 13580635
2 VT 0.50 SN X055_1-38 13580635
