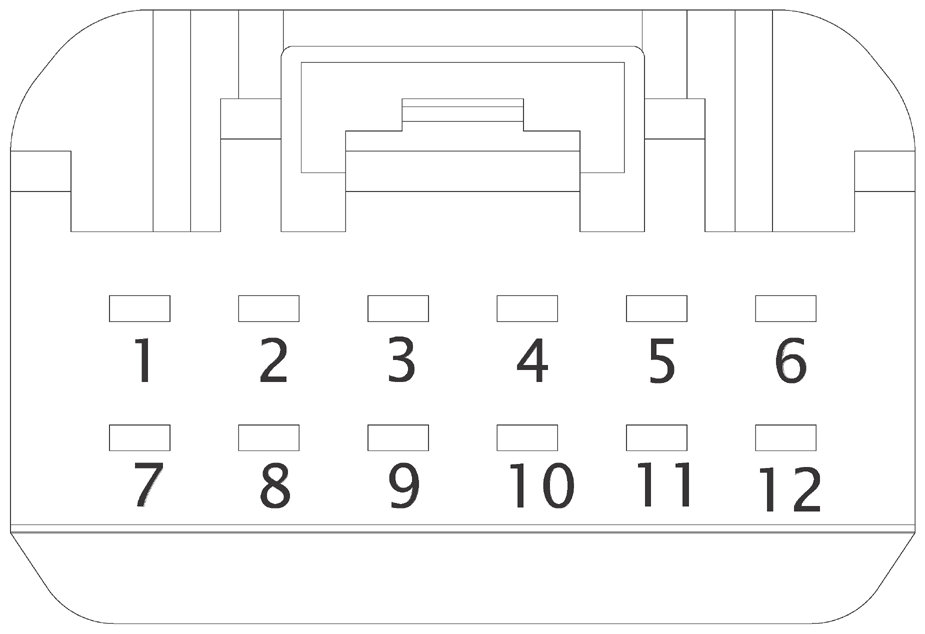

Connector End View - X560 [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]

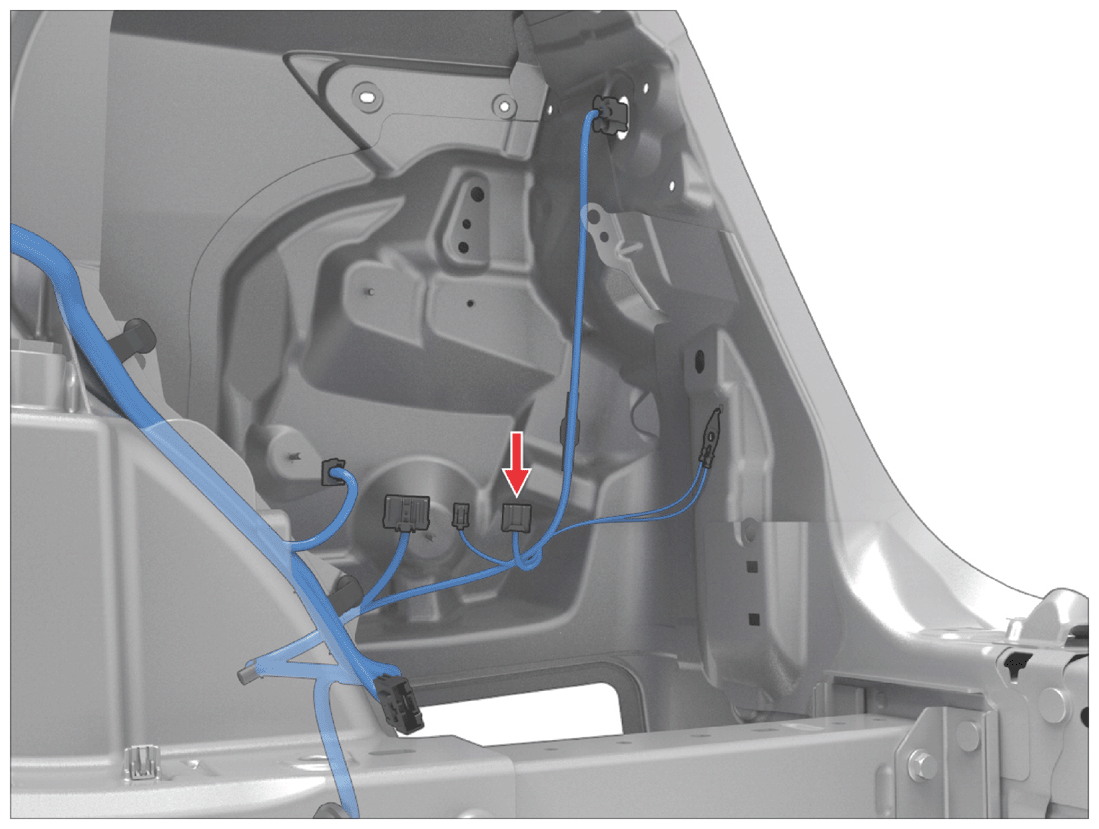

Location:
Connector Detail: SUMITOMO 6098-5713
Color: WH
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | BK | 0.50 | SN | X935F-11 | 8240-0215 |
| 2 | RD | 0.50 | SN | X935F-10 | 8240-0215 |
| 3 | BU | 0.50 | SN | X926M-24 | 8240-0215 |
| 4 | GN | 0.50 | SN | X926M-25 | 8240-0215 |
| 5 | YE | 0.50 | SN | X953M-2 | 8240-0215 |
| 6 | GY | 0.50 | SN | X953M-1 | 8240-0215 |
| 7 | |||||
| 8 | |||||
| 9 | |||||
| 10 | |||||
| 11 | WH | 0.50 | SN | X953M-4 | 8240-0215 |
| 12 | VT | 0.50 | SN | X953M-3 | 8240-0215 |
