Connector End View - X550 [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]

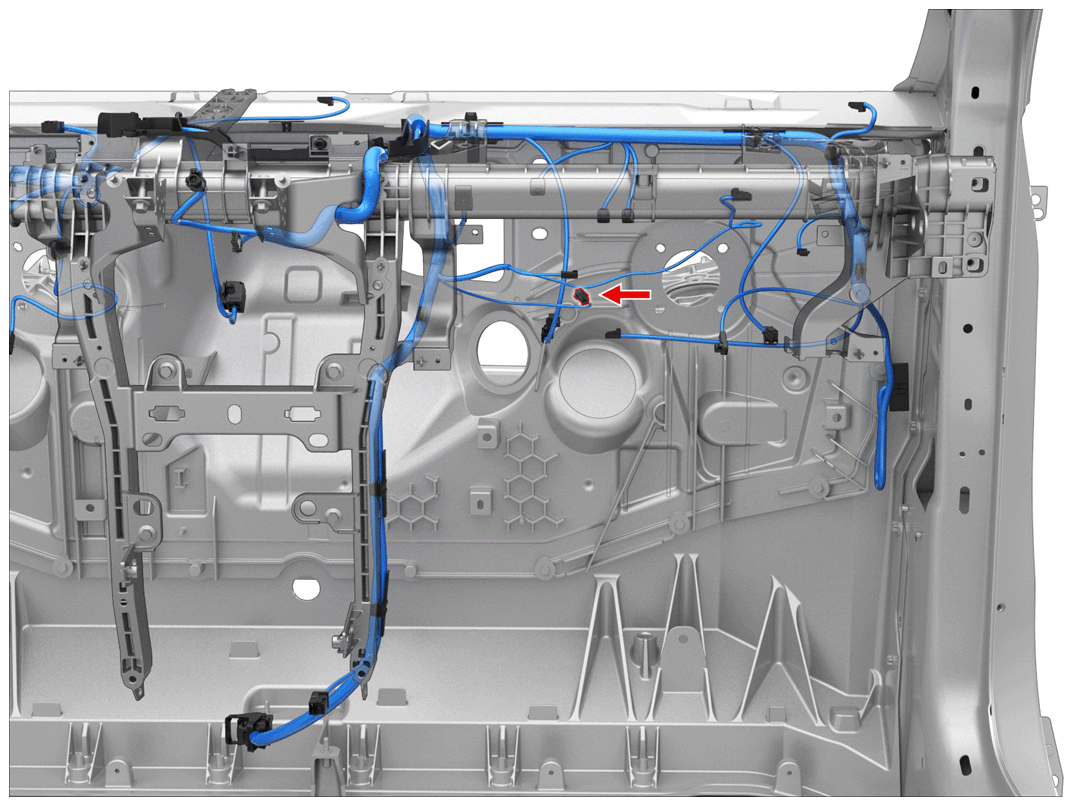

Location:
Courtesy of TESLA, INC.

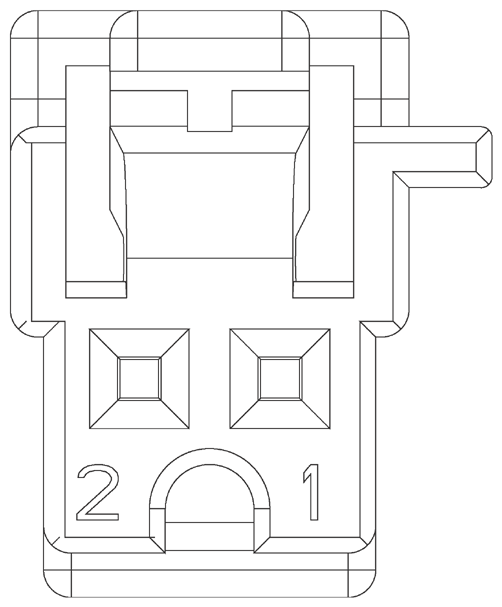

Connector Detail: AMP 1-929080-5
Color: BK
Courtesy of TESLA, INC.
Serviceability: Terminal Pigtail
| Cavity |
Color |
Size |
Plate |
Destination |
Terminal |
| 1 |
GN |
0.35 |
SN |
X055-31 |
5-928999-1 |
| 2 |
BU |
0.35 |
SN |
X055-25 |
5-928999-1 |
