Connector End View - X536_1 [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]
Location:

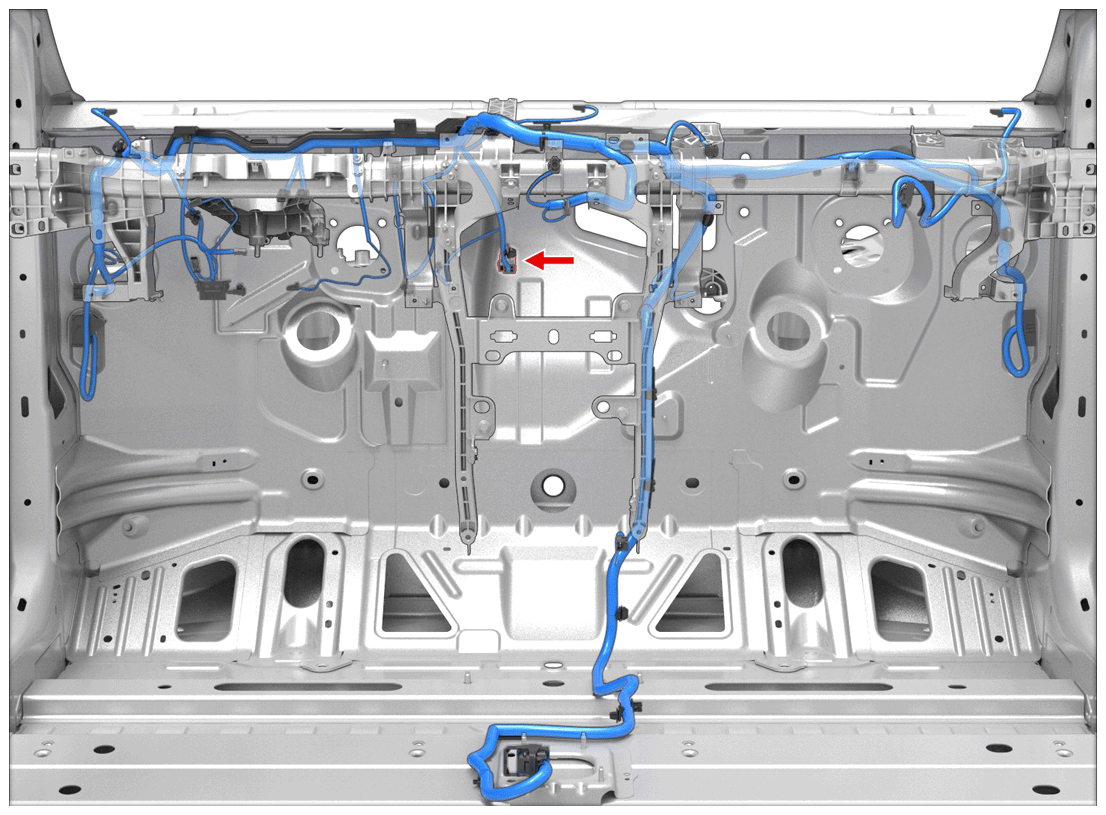

Fig 1: Connector Component Location - X536_1 [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]
Connector Detail: YAZAKI 7283-6469-40
Color: GY
Fig 2: Connector Component Location - X536_1 [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]
Serviceability: Terminal Pigtail
| Cavity | Color | Size | Plate | Destination | Terminal |
|---|---|---|---|---|---|
| 1 | WH | 5.00 | SN | X038_1-4 | 7116-4124-02 |
| 2 | BK | 5.00 | SN | X038_1-2 | 7116-4124-02 |
| 3 | |||||
| 4 | RD | 5.00 | SN | X038_1-1 | 7116-4124-02 |
