Connector End View - X533 [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]

Location:

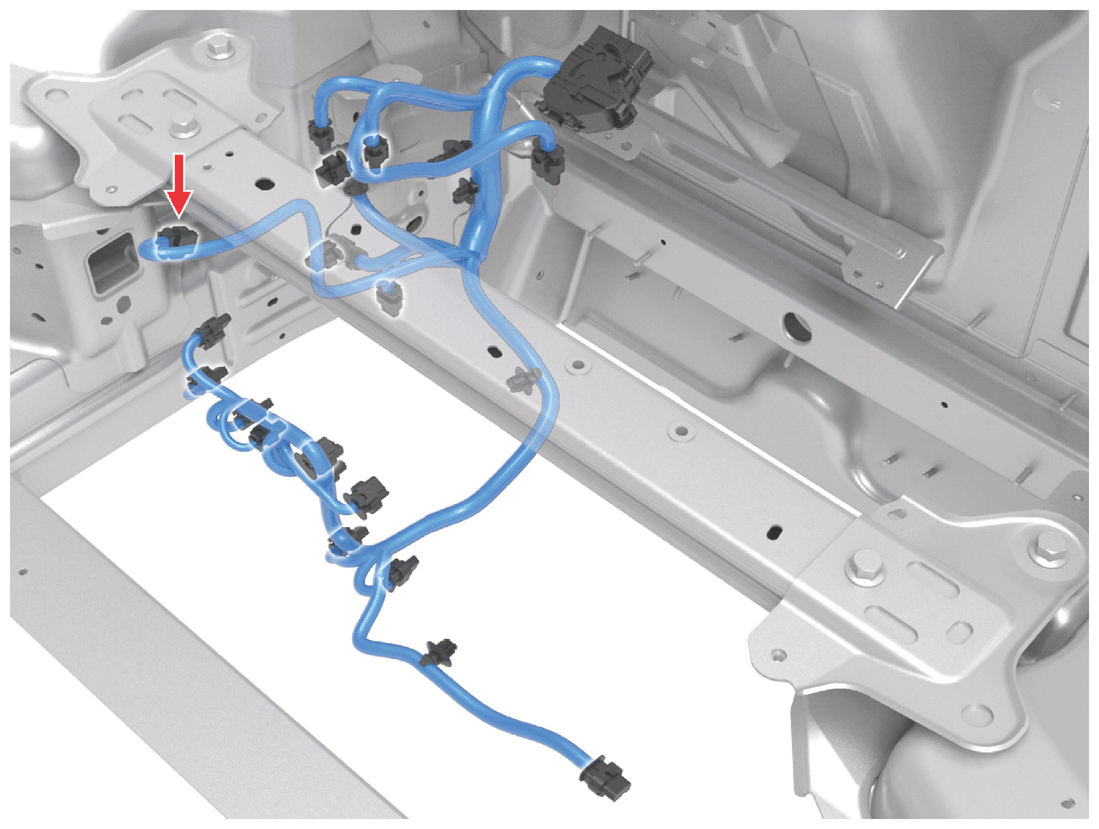

Fig 1: Connector Component Location - X533 [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]

Courtesy of TESLA, INC.

Connector Detail: DELPHI 35126381

Color: BK

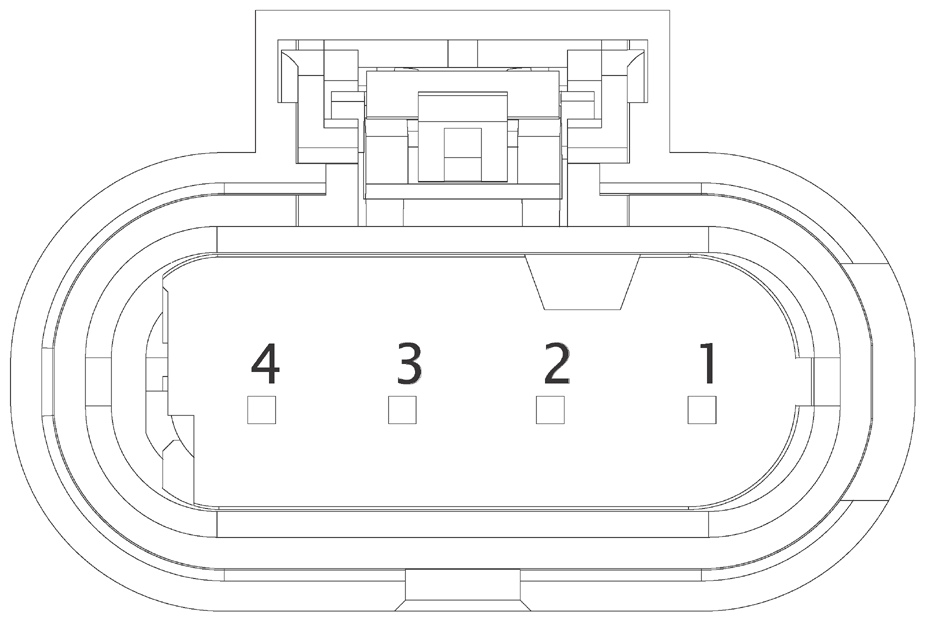

Fig 2: Connector End View - X533 [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]

Courtesy of TESLA, INC.

Serviceability: Terminal Pigtail

Cavity	Color	Size	Plate	Destination	Terminal	Seal
1	BU	0.50	AG	X021-K2	7-1452668-3	967067-1
2	GN	0.50	AG	X021-G2	7-1452668-3	967067-1
3	VT	0.50	AG	X021-H2	7-1452668-3	967067-1
4	BK	0.50	AG	X021-J2	7-1452668-3	967067-1
