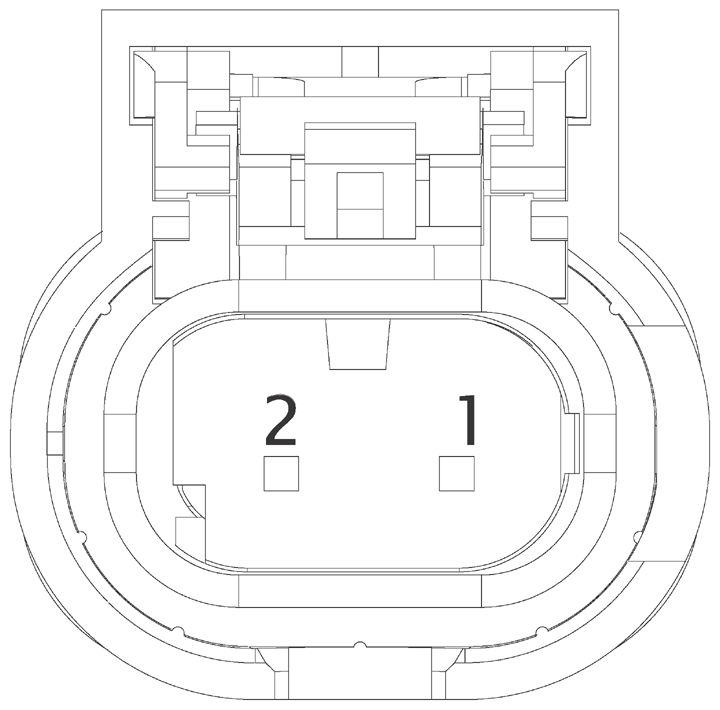

Connector End View - X517 [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]

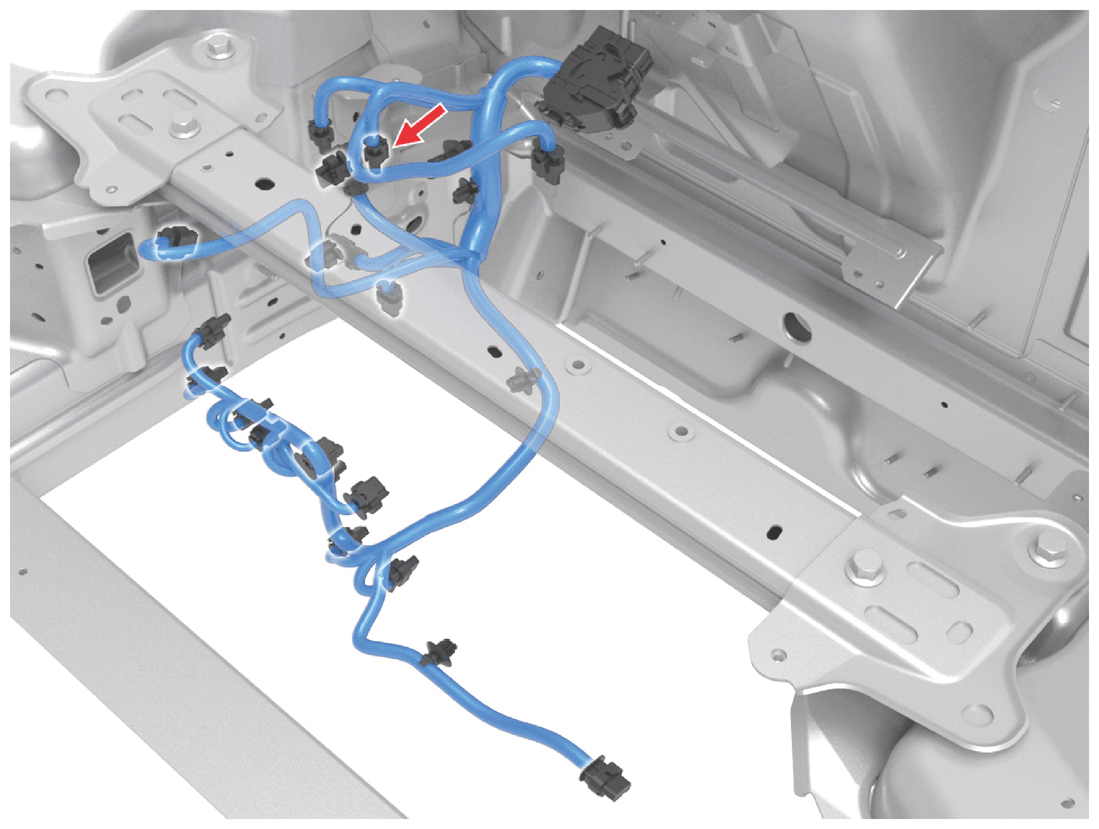

Location:
Courtesy of TESLA, INC.
Connector Detail: DELPHI 35126365
Color: BK
Courtesy of TESLA, INC.
Serviceability: Terminal Pigtail
| Cavity |
Color |
Size |
Plate |
Destination |
Terminal |
Seal |
| 1 |
VT |
0.50 |
SN |
X021-E1 |
7-1452668-1 |
967067-1 |
| 2 |
WH |
0.50 |
SN |
X021-F1 |
7-1452668-1 |
967067-1 |
