Connector End View - X494 [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]

Location:

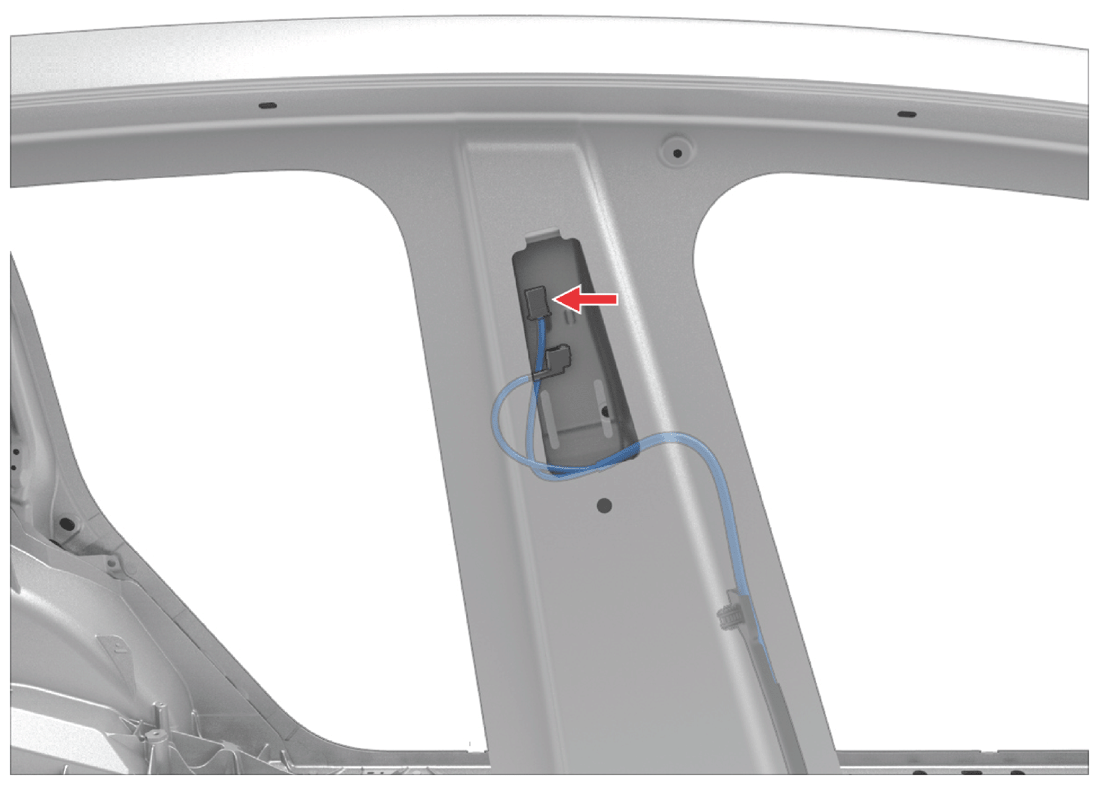

Fig 1: Connector Component Location - X494 [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]
G14849718Courtesy of TESLA, INC.

Connector Detail: AMP 3-1355397-3

Color: BU

Fig 2: Connector End View - X494 [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]
G14849719Courtesy of TESLA, INC.

Serviceability: Terminal Pigtail

Cavity Color Size Plate Destination Terminal
1 YE 0.35 SN X050B-10 5-928999-1
2 BK 0.35 SN G032-12 5-928999-1
3 BU 0.35 SN X935F-45 5-928999-1
4 WH 0.35 SN X935F-44 5-928999-1
