Connector End View - X477 [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]

Location:

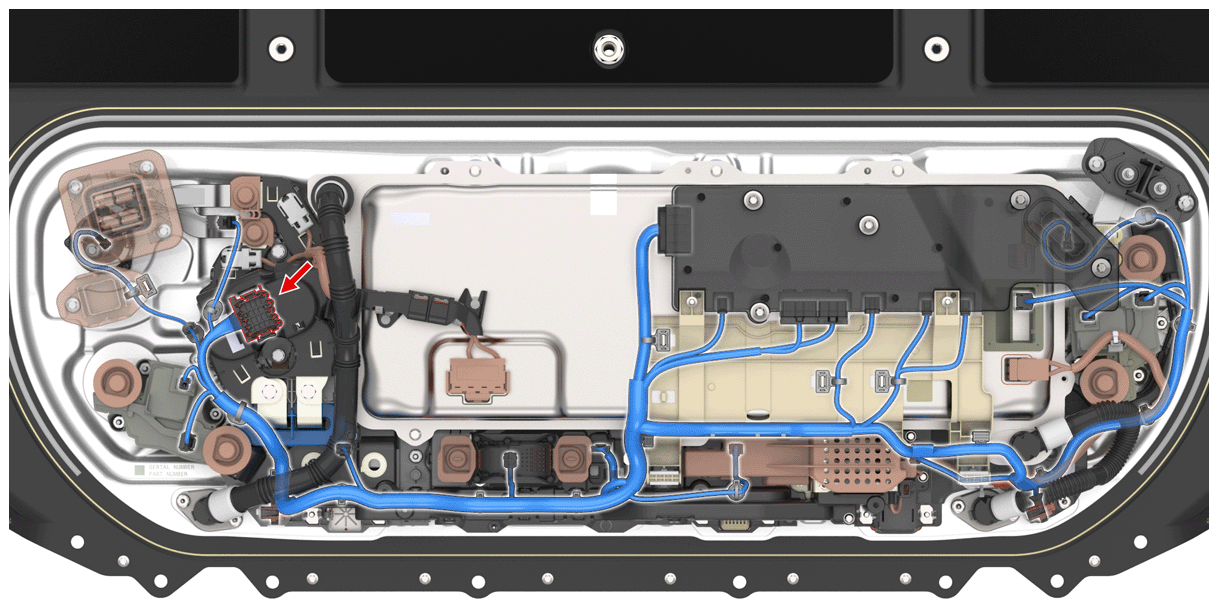

Fig 1: Connector Component Location - X477 [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]
G14849692Courtesy of TESLA, INC.

Connector Detail: TESLA 1103958-00-C

Color: BK

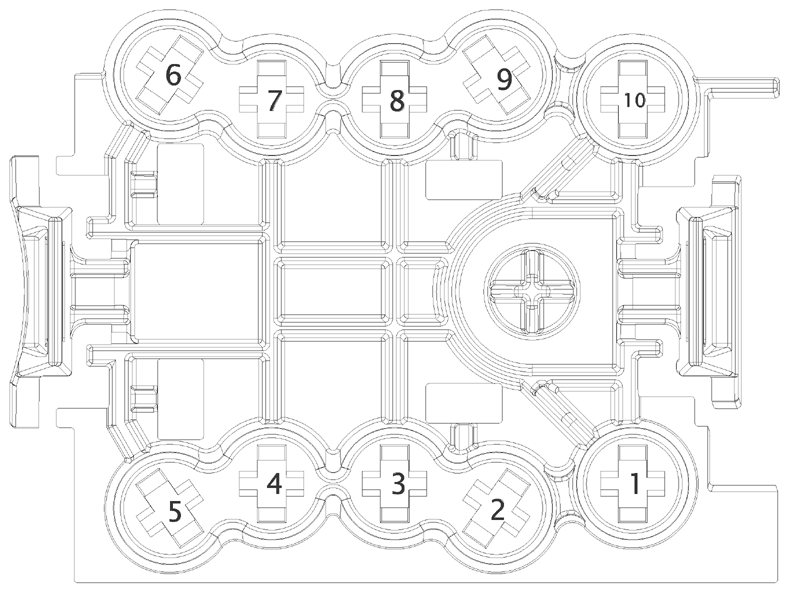

Fig 2: Connector End View - X477 [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]
G14849693Courtesy of TESLA, INC.

Serviceability: Terminal Pigtail

Cavity Color Size Plate Destination Terminal
1 WH 0.35 SN X478-3 26700201185
2 WH 0.35 SN X479-18 26700201185
3 WH 0.75 SN X479-35 26701201185
4 WH 0.75 SN X479-36 26701201185
5 WH 0.35 SN X479-4 26700201185
6 WH 0.35 SN X479-17 26700201185
7 WH 0.75 SN X479-43 26701201185
8 WH 0.75 SN X479-37 26701201185
9 WH 0.35 SN X479-3 26700201185
10 WH 0.35 SN X481-4 26700201185
