Connector End View - X474 [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]

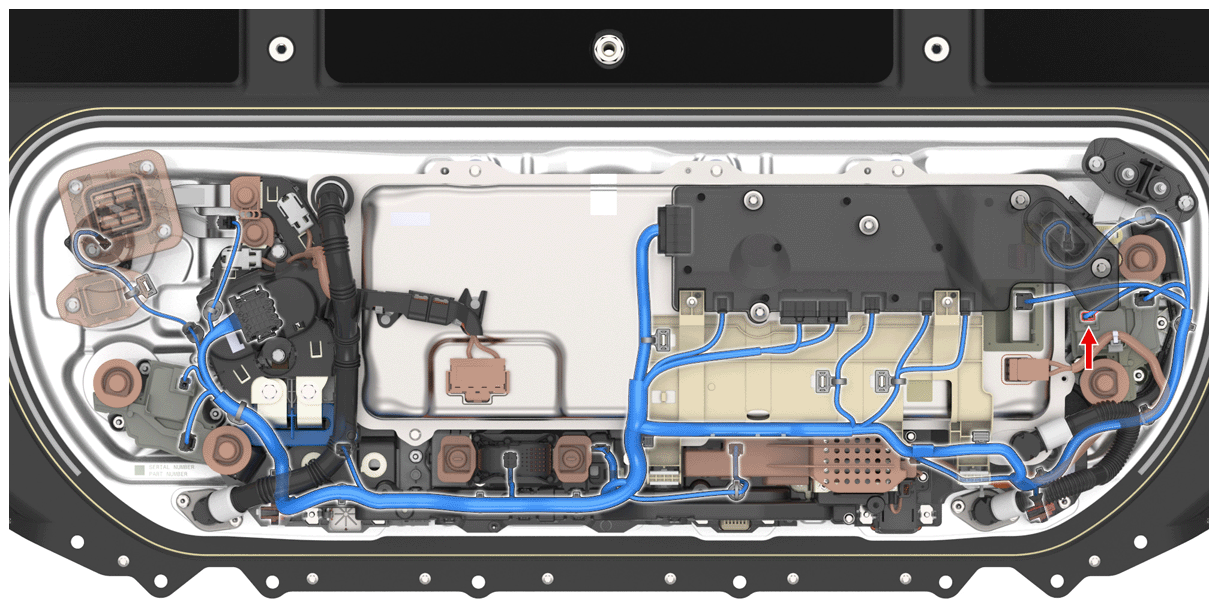

Location:
Courtesy of TESLA, INC.
Connector Detail: AMP 1-1534113-1
Color: BK
Courtesy of TESLA, INC.
Serviceability: Terminal Pigtail
| Cavity |
Color |
Size |
Plate |
Destination |
Terminal |
| 1 |
WH |
0.75 |
AU |
X479-33 |
5-963715-5 |
| 2 |
WH |
0.75 |
AU |
X479-41 |
5-963715-5 |
