Connector End View - X456 [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]

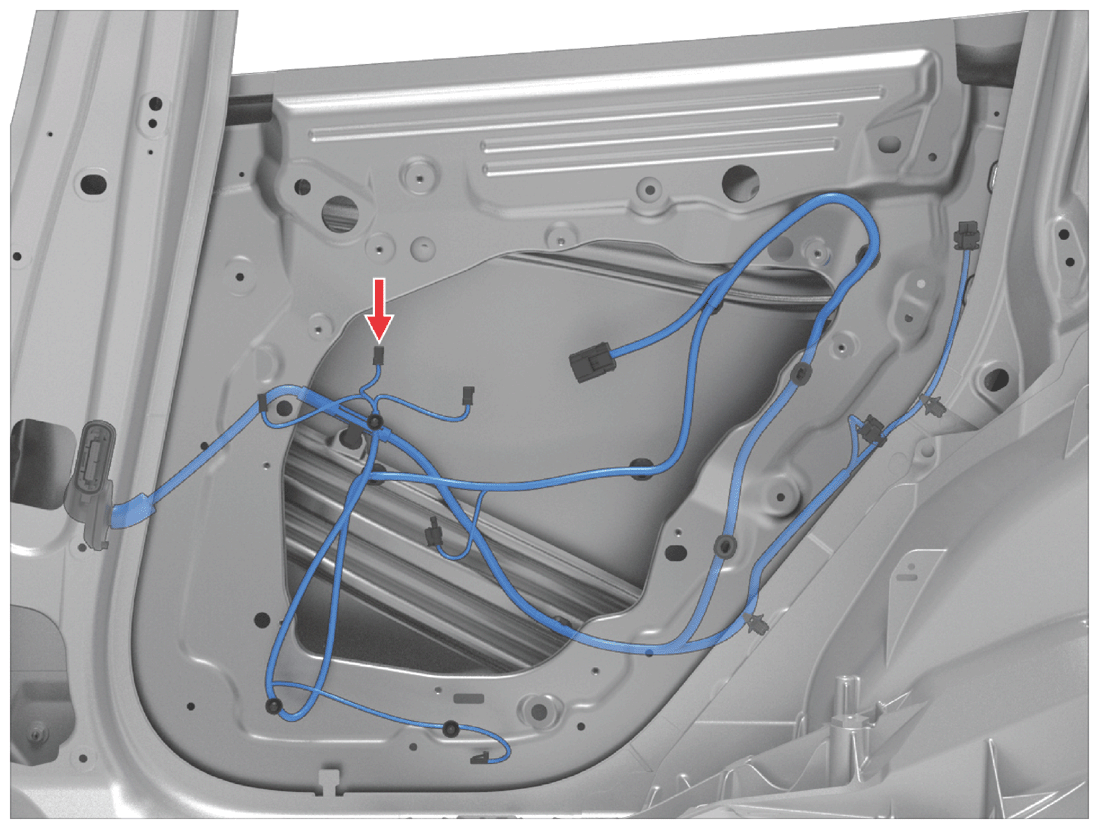

Location:
Courtesy of TESLA, INC.

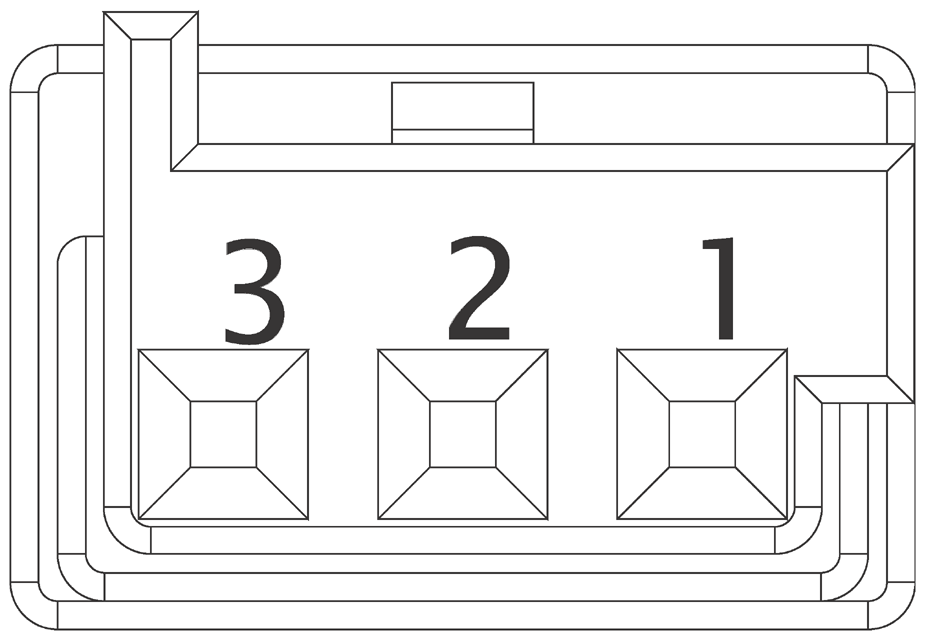

Connector Detail: AMP 3-1718346-1
Color: BU
Courtesy of TESLA, INC.
Serviceability: Terminal Pigtail
| Cavity |
Color |
Size |
Plate |
Destination |
Terminal |
| 1 |
BK |
0.35 |
SN |
|
5-928999-1 |
| 2 |
BN |
0.35 |
SN |
X926F-14 |
5-928999-1 |
| 3 |
RD |
0.35 |
SN |
X926F-13 |
5-928999-1 |
