Connector End View - X260 [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]

Location:

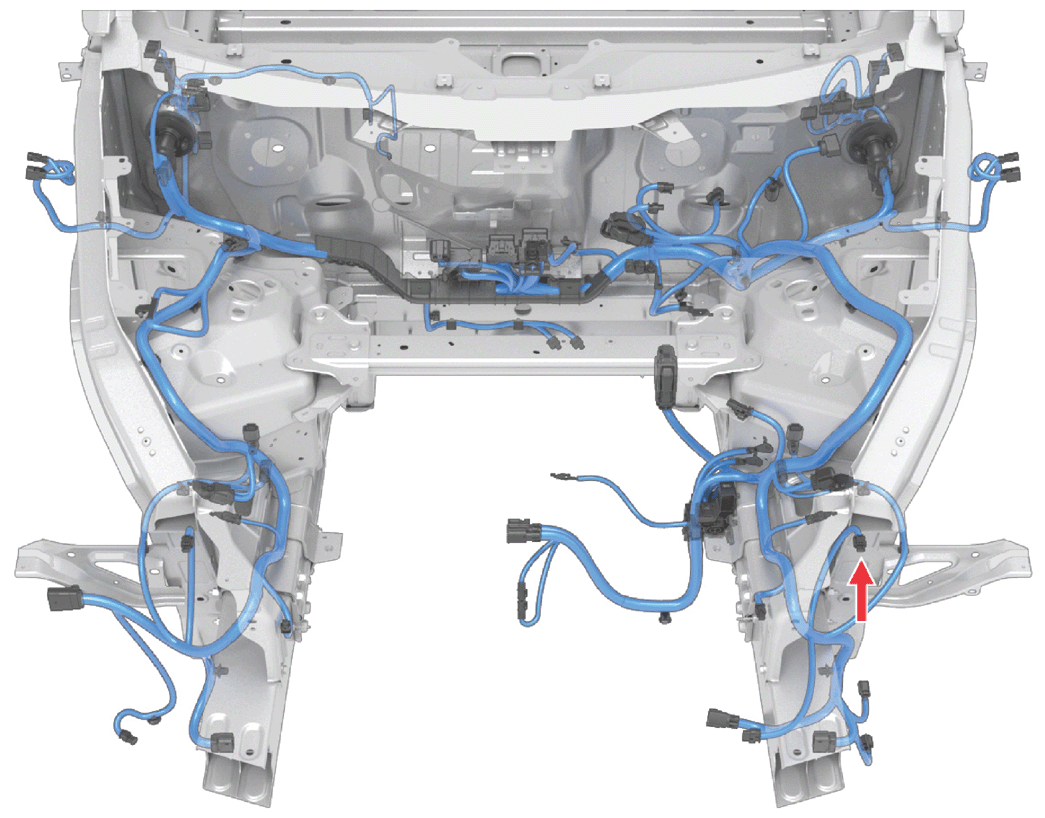

Fig 1: Connector Component Location - X260 [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]
G14849506Courtesy of TESLA, INC.

Connector Detail: DELPHI 35126369

Color: BK

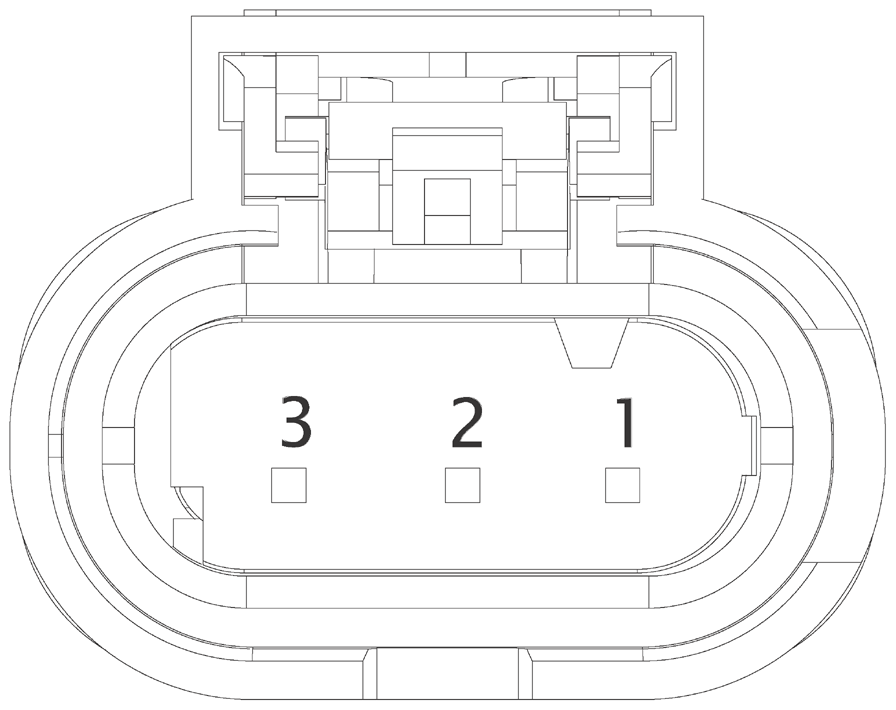

Fig 2: Connector End View - X260 [Fremont/Berlin: 01/06/2022 - | Shanghai: 11/15/2021 -]
G14849507Courtesy of TESLA, INC.

Serviceability: Terminal Pigtail

Cavity Color Size Plate Destination Terminal Seal
1 BU 1.00 SN X010-78 7-1452671-1 967067-1
2 GN 0.35 SN X010-75 7-1452665-1 967067-2
3 BK 1.00 SN G011-3 7-1452671-1 967067-1
