Seal - Secondary - Rear Door - LH - Remove And Replace: Install

Use IPA wipes to clean the LH rear door secondary seal installation path.
NOTE: Allow 1 minute of dry time.

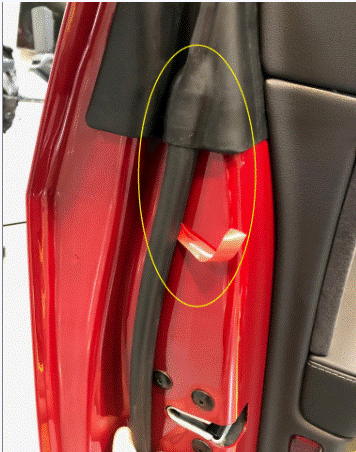

Peel a short section of seal backing and insert the end of the seal into the rear of the glass run seal.

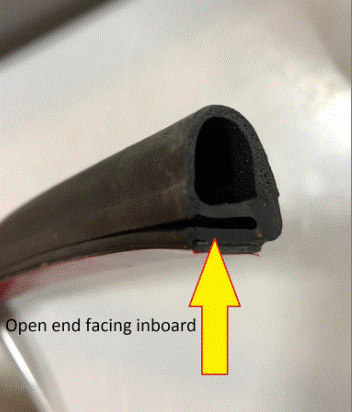

NOTE: Make sure that the open edge of the seal is facing the inside of the door.

NOTE: Make sure the rear end of the secondary door seal is installed no deeper than 25mm into the glass run seal.

NOTE: Face open edge inward

Courtesy of TESLA, INC.

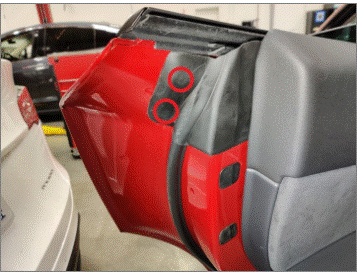

Peel the seal backing and carefully position the edge of the seal to the edge of the marking tape while working around the rear door.
NOTE: Do not stretch the seal as it is applied to the door.

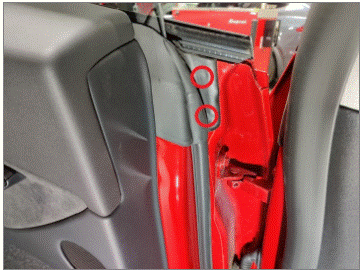

Insert the end of the seal into the front of the inner belt seal.

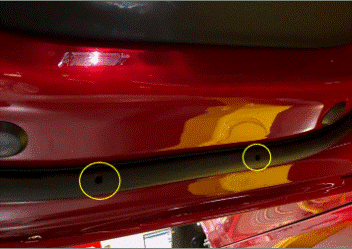

NOTE: Make sure the drain holes on the seal are at the bottom of the door.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
Use a seam roller to attach the seal to the rear door.
Remove the marking tape from the rear door.

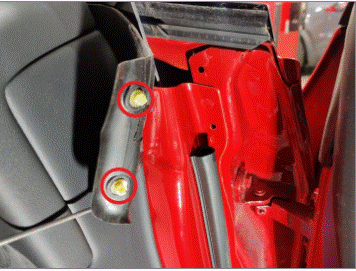

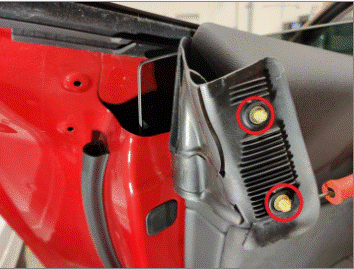

Install the LH rear glass run seal clips (x4) to fully access the LH rear door secondary seal.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
