Seal - Secondary - Front Door - LH - Remove And Replace: Install

Ensure the area where the secondary seal will be installed is clean.
Peel a short section of the seal backing on each end of the seal and position the ends into the door assembly.
NOTE: Make sure that the open edge of the seal is facing the inside of the door.

NOTE: Make sure the front edge of the seal is under the cutout for the glass run seal, and the rear edge is under the cutout for the inner belt seal.

NOTE: Make sure that the drain holes of the seal are at the bottom of the door.

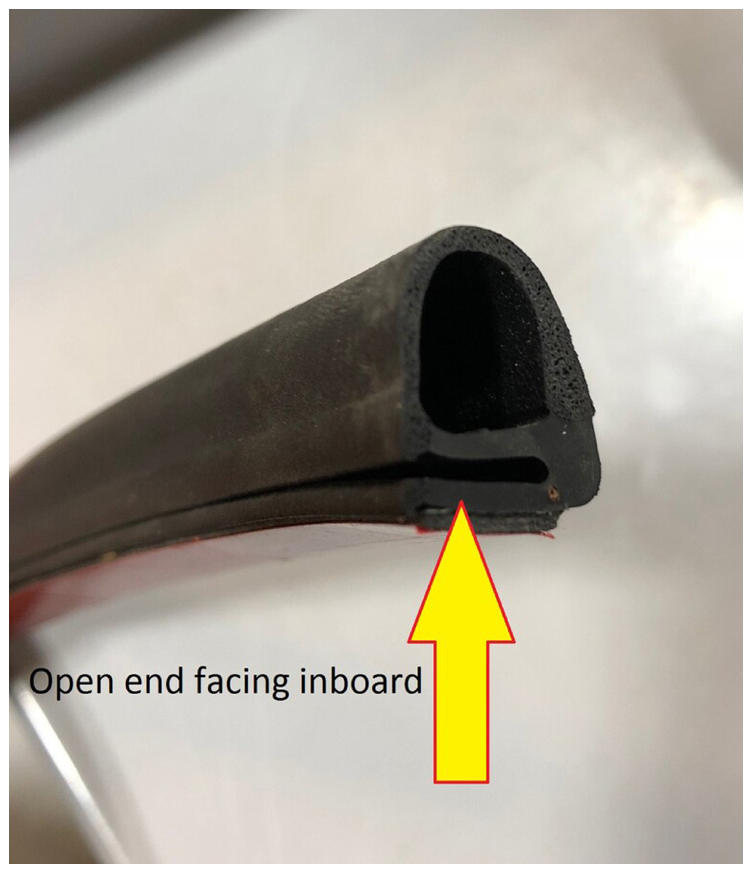

Face open edge inward

Courtesy of TESLA, INC.

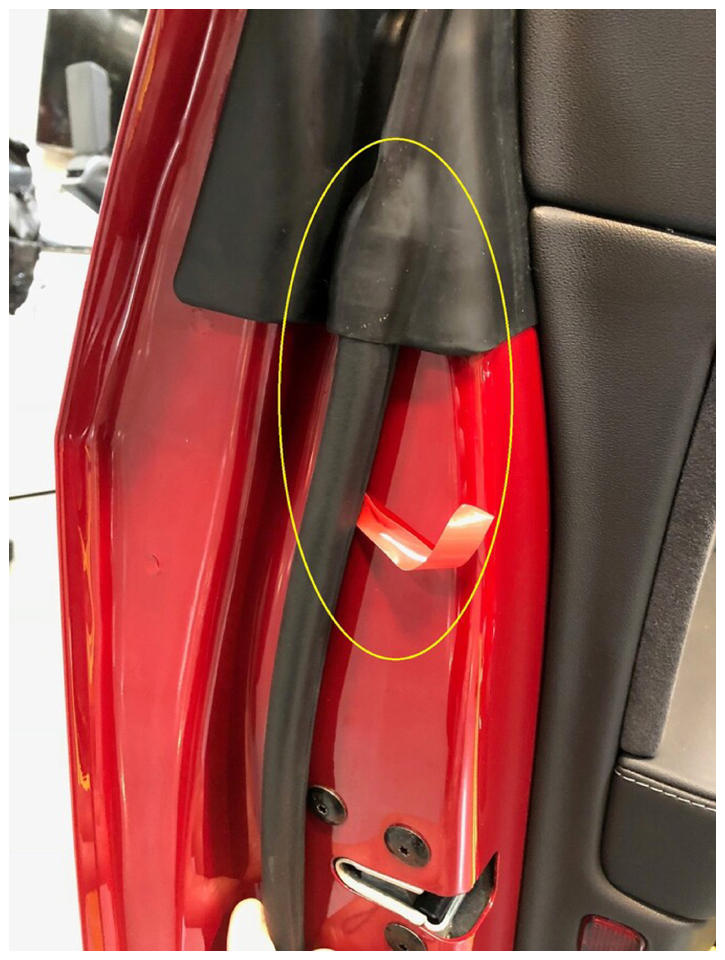

Quarter glass run seal cutout

Courtesy of TESLA, INC.

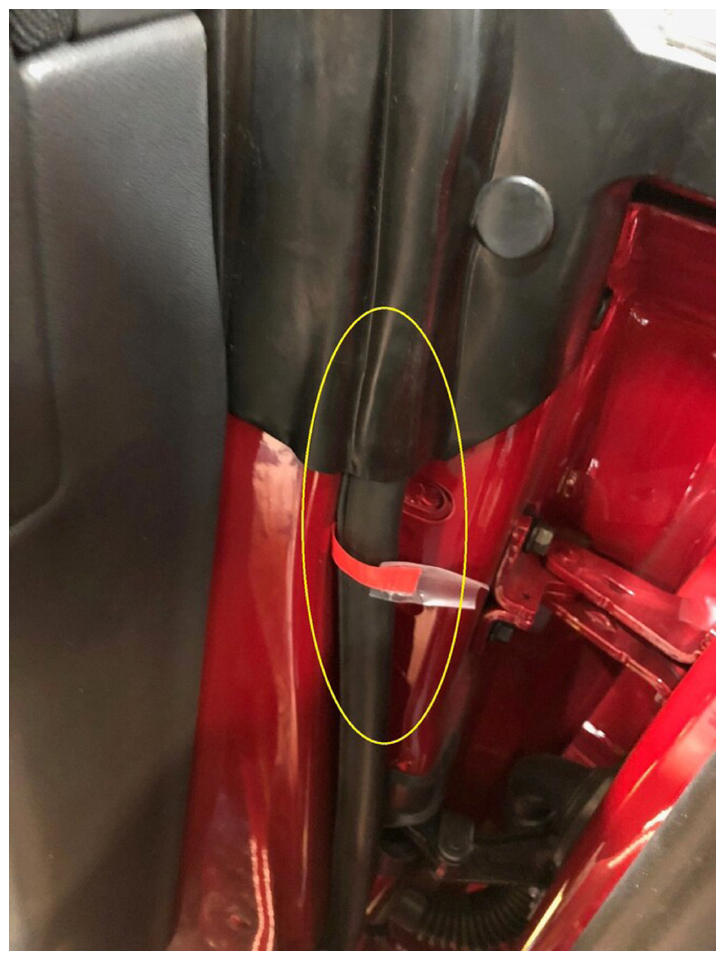

Inner belt seal cutout

Courtesy of TESLA, INC.
Firmly press the remaining portion of the seal into place while removing the film from the double sided tape.
NOTE: Do not stretch the seal as it is applied to the door.
Remove the marking tape from the door, and close the door.
Install the LH front door inner belt seal and glass run seal clips (x3).

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.

Courtesy of TESLA, INC.
