Seal - Outer Belt - Rear Door - LH - Remove And Replace: Remove

  1. Open the LH rear door and lower the window.
  2. Pry the outer belt seal from the rear door, and then remove the seal from the rear door.

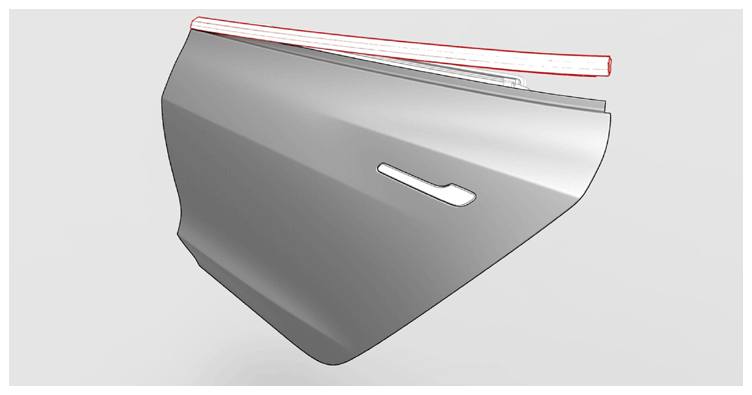

    G14821190Courtesy of TESLA, INC.

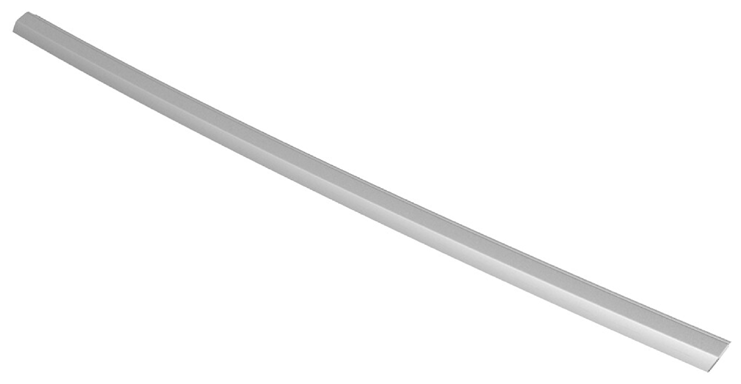

    G14821191Courtesy of TESLA, INC.
