Seal - Outer Belt - Rear Door - LH - Adjust: Remove

  1. Open the LH rear door and lower the window.

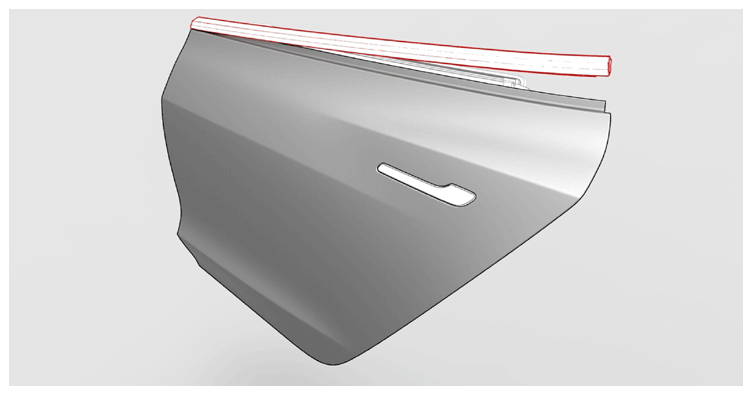

  2. Pry the outer belt seal from the rear door, and then remove the seal from the rear door.
    G14821193Courtesy of TESLA, INC.

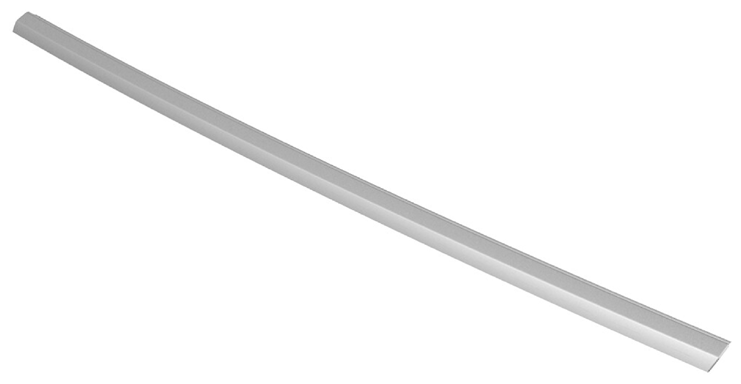

    G14821194Courtesy of TESLA, INC.

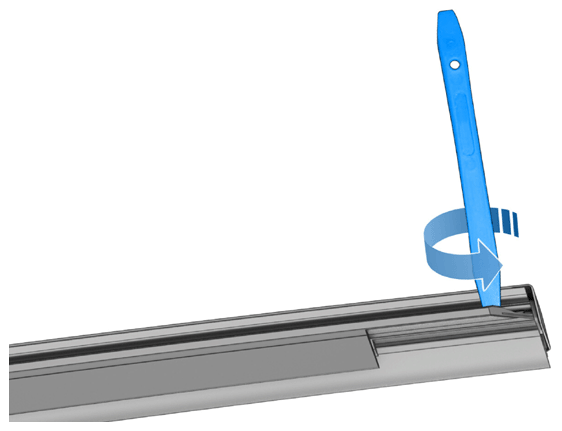

  3. Insert the plastic trim tool into the seal channel and twist the tool inboard to open the channel to remove the plastic X-datum.
    G14821195Courtesy of TESLA, INC.

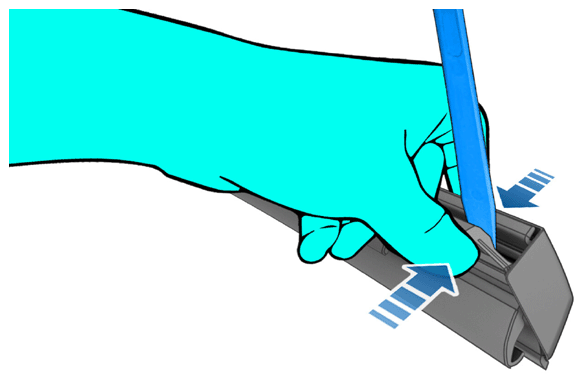

  4. With the help of the plastic trim tool, press the seal channel closed with your thumb.
    NOTE: Make sure seal fits properly on the door hem flange.
    G14821196Courtesy of TESLA, INC.
