Seal - Outer Belt - Front Door - LH - Adjust: Remove

  1. Open the LH front door and lower the LH front window fully.

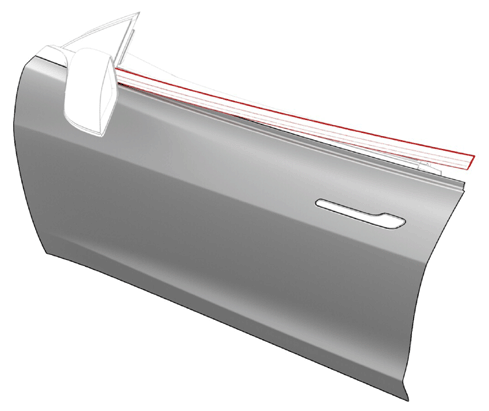

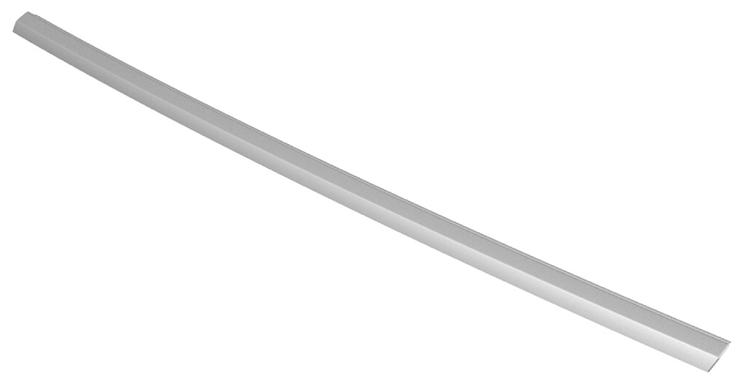

  2. Pull up and then pry to release the LH front door outer belt seal from the door using a plastic trim tool, and then remove the seal from the door.
    G14821185Courtesy of TESLA, INC.
    G14821186Courtesy of TESLA, INC.

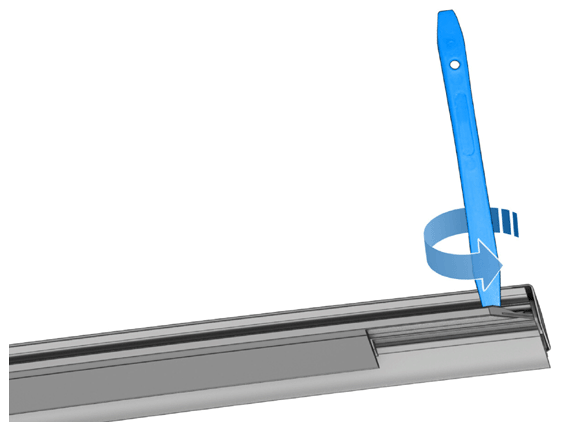

  3. Insert the plastic trim tool into the seal channel and twist the tool inboard to open the channel to remove the plastic X-datum.
    G14821187Courtesy of TESLA, INC.

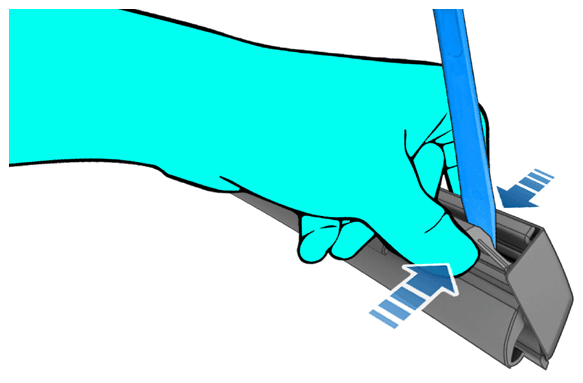

  4. With the help of the plastic trim tool, press the seal channel closed with your thumb.
    NOTE: Make sure seal fits properly on the door hem flange.
    G14821188Courtesy of TESLA, INC.
