Seal - Inner Belt - Front Door - LH - Remove And Replace: Remove

  1. Remove the LH front door trim panel. See Panel - Door Trim - Front - LH (Remove and Replace) .

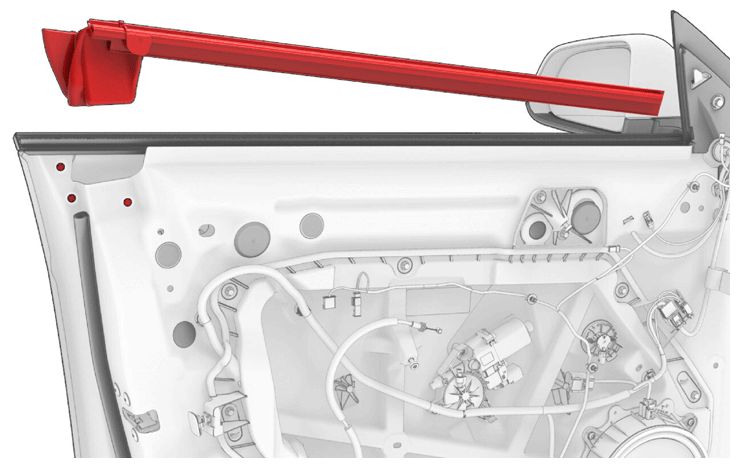

  2. Pull up to release the LH front inner belt seal from the door.
    NOTE: Remove the clips that remain in the door, and then install the clips into the rear of the inner belt seal.
    G14821176Courtesy of TESLA, INC.
    G14821177Courtesy of TESLA, INC.
