Seal - Body - Side - Rear - Primary - LH - Remove And Replace: Remove

  1. Open the LH rear door.

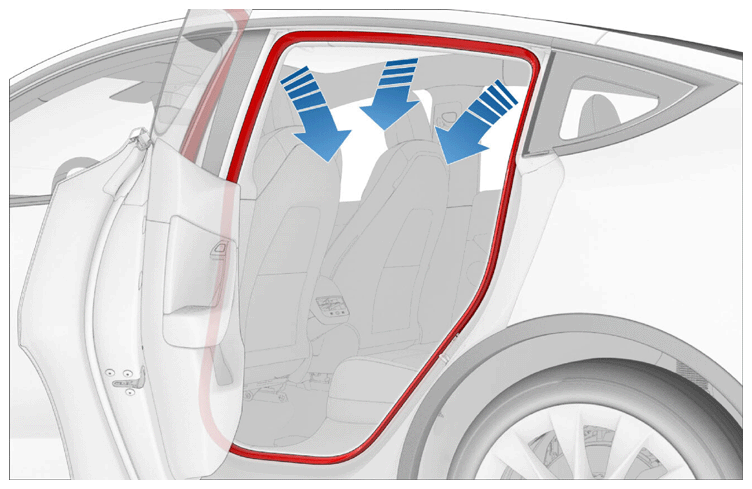

  2. Pull on the LH primary rear side body seal to release it from the body.
    NOTE: Start in the corner closest to the B-pillar applique and pull straight down to release the upper portion of the trim first.
    G14821157Courtesy of TESLA, INC.

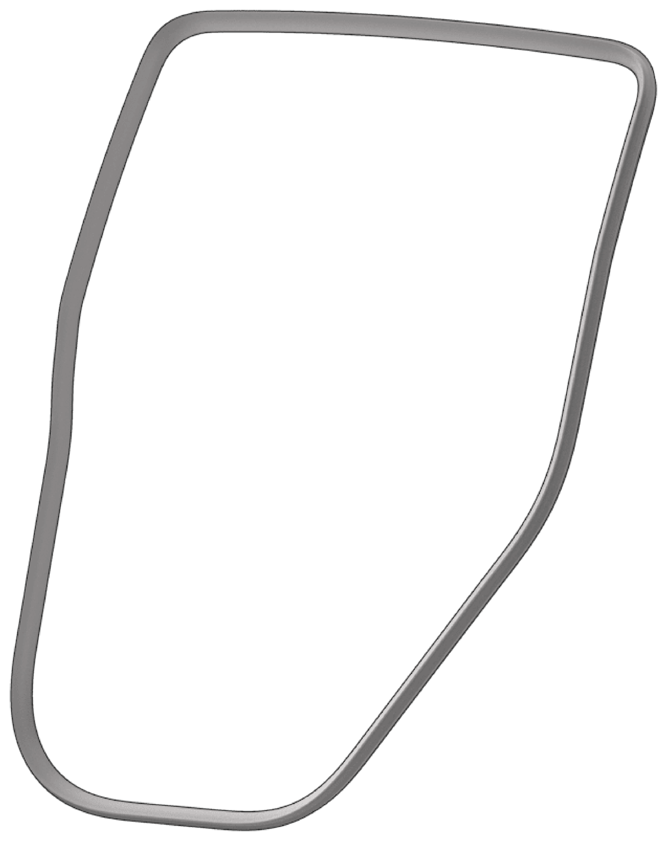

    G14821158Courtesy of TESLA, INC.
